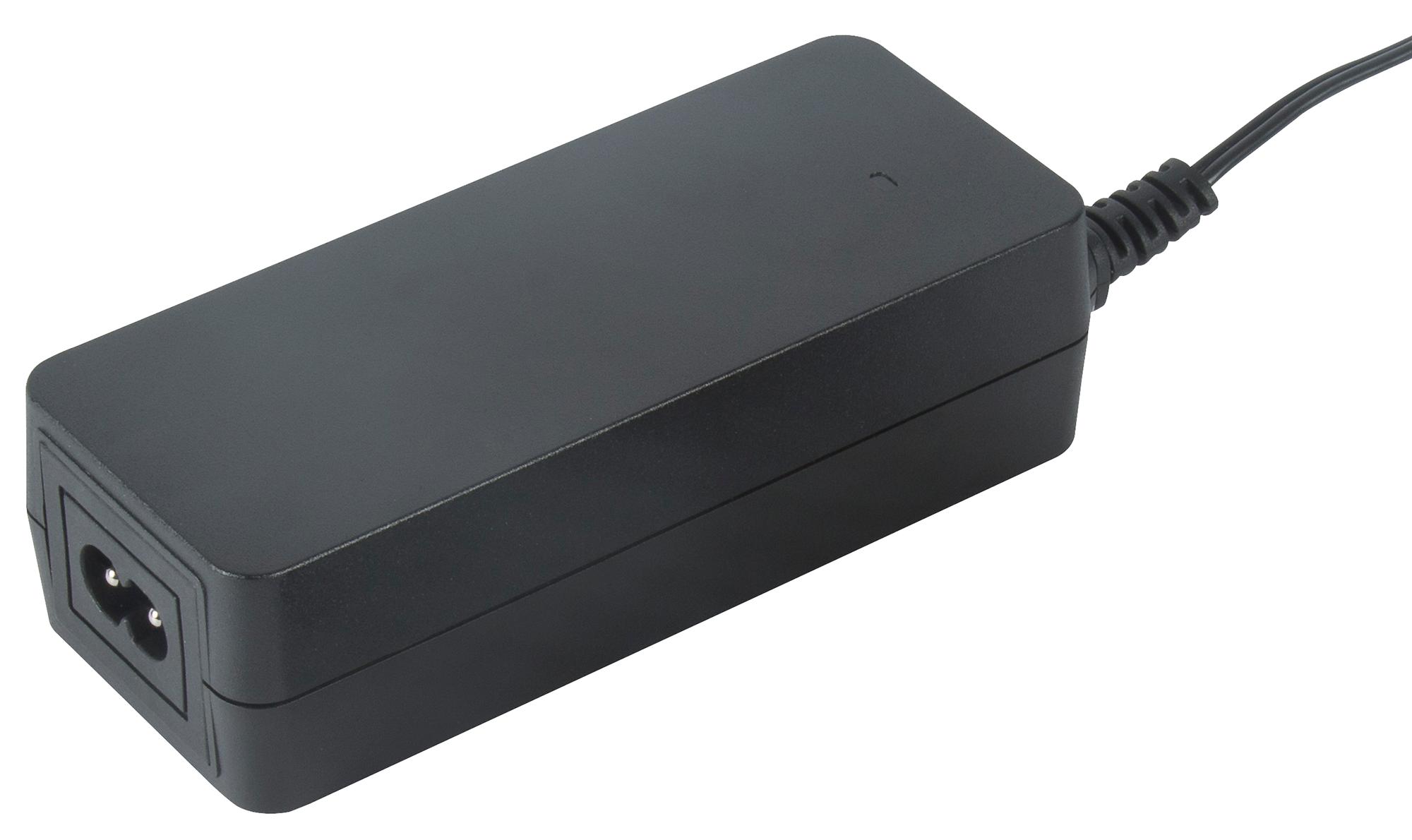

XP POWER VET30US150C2JA Power Supply
The VET30 series desktop power supplies comply with the latest Energy Efficiency Level VI standards, offering high efficiency and extremely low no-load power consumption. Featuring a standard DC jack connector, these supplies support universal input voltages from 100 VAC to 240 VAC and are designed with Class II construction for safety. Available with output voltages from 12V to 24V, they operate within a frequency range of 24kHz to 70kHz. They measure 4.53 inches x 1.89 inches x 1.28 inches, and are suitable for power management applications, certified by UL, EN, and CCC standards with operating temperatures between 0°C and +60°C.
XP POWER VET30US150C2JA Power Supply Specifications:
- Power output: 30 Watts
- Input Voltage: 100 VAC to 240 VAC, 50/60 Hz
- Output Voltage: 12V, 15V, 18V, 24V (depending on model)
- Output Regulation: ±5%
- Efficiency: 87% at full load
- Power Factor: EN61000-8-2, class A
- Inrush Current: 2A at cold start
- No Load Power Consumption: Very low
- Dimensions: 4.53 inches x 1.89 inches x 1.28 inches (115mm x 48mm x 32.5mm)
- Connector: 5.5mm x 2.1mm x 12mm DC jack
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% RH to 95% RH, non-condensing
- Certification: UL/cUL60950-1, EN60950-1, CCC
- Switching Frequency: 24kHz to 70kHz
- Safety: Class II construction
- Cooling: Natural convection
Buy the Buy XP Power VET30 Series Power Supply Part Number VET30US150C2JA Online
Discover the reliable VET30 series power supplies designed by XP Power, offering high energy efficiency, compact size, and universal input support. These supplies feature low no-load power consumption, meet safety standards including UL, EN, and CCC, and operate efficiently between 24kHz and 70kHz. With output voltages from 12V to 24V, they are ideal for power management applications in various industrial and professional environments. Enhanced safety with Class II construction and temperature tolerance up to 60°C make them a versatile choice for demanding applications.
Buy XP Power VET30US150C2JA now and experience unmatched reliability and performance with high efficiency and industry-leading safety features.
Frequently Asked Questions
Where can I buy XP POWER VET30US150C2JA?
You can click on the BUY or RFQ button to purchase VET30US150C2JA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VET30US150C2JA?
You can download the VET30US150C2JA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VET30US150C2JA?
XP POWER
