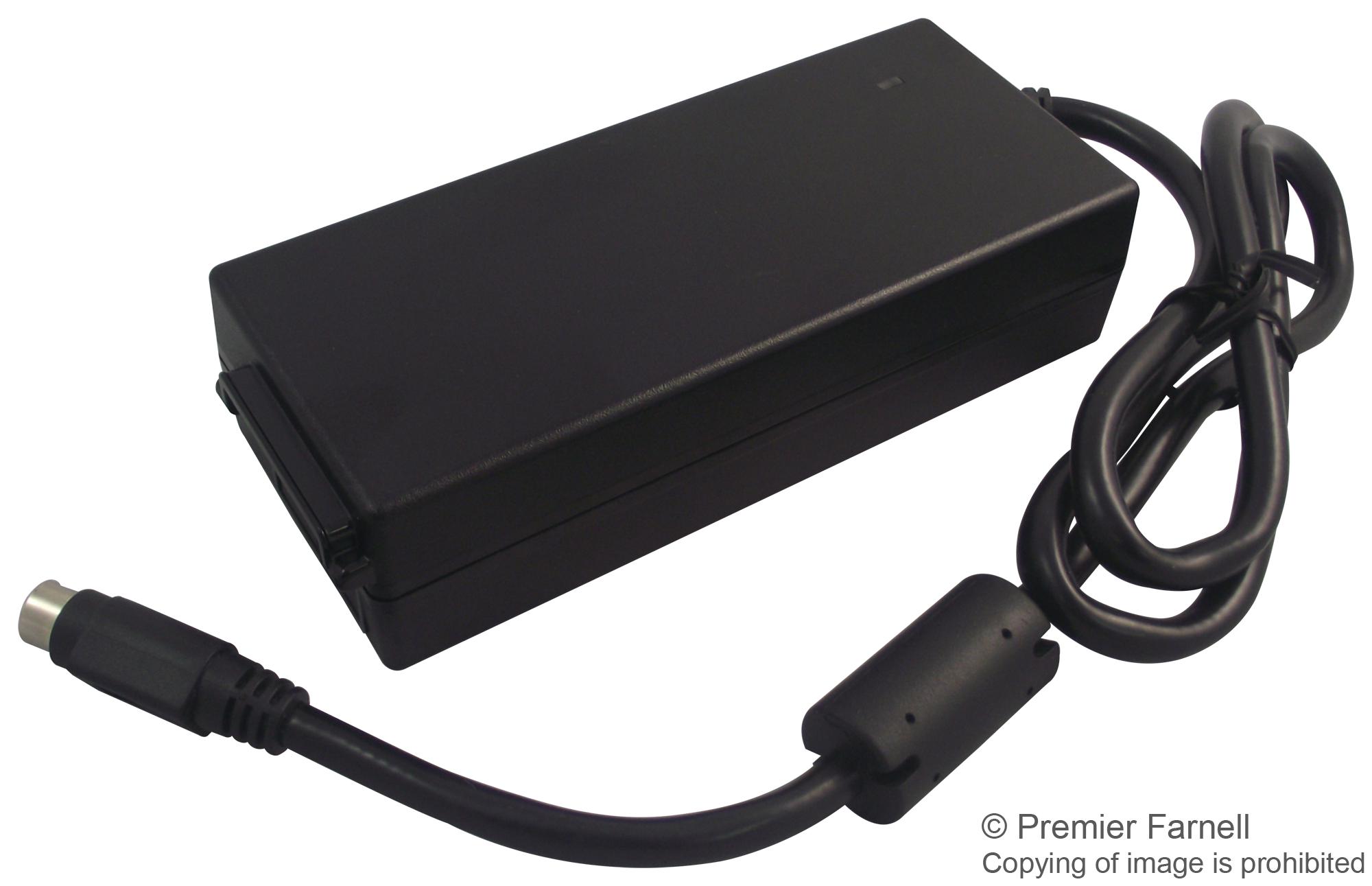

XP POWER AHM150PS24C28 Medical Power Supply
The AHM150PS24C28 is a high-efficiency 150W AC/DC power supply designed for medical and industrial applications. It features a 24VDC output with a power rating of 150W, wide input voltage range of 80-264 VAC, and a typical efficiency of 92%. The unit provides reinforced isolation with a 4000 VAC rating, support for overload protection, and robust safety certifications including EN60601-1 and UL62368-1. Its compact size and reliable performance make it suitable for demanding environments requiring stable power delivery and compliance with medical safety standards.
XP POWER AHM150PS24C28 Medical Power Supply Specifications:
- Power Rating: 150W
- Output Voltage: 24VDC
- Output Current: 6.25A
- Input Voltage: 80-264 VAC
- Efficiency: 92% typical
- Isolation: 4000 VAC In to Out
- Protection: Overload protected, short circuit protection
- Safety Certifications: EN60601-1, UL62368-1, CSA22.2 No. 60601-1
- Operating Temperature: 0°C to +60°C, derating from 100%
- Dimensions: Approximately 5.11 x 2.02 x 0.79 inches
- Weight: Around 0.9 lbs
- Switching Frequency: 45-200 KHz
- Vibration: 5-500 Hz at 2 g for 10 sweeps
- EMC Compliance: EN55011/32 Class B conducted and radiated
- Line Regulation: ≤1.5%
- Ripple & Noise: <1%, typically 1.5% pk-pk
- Overvoltage Protection: 125%
- Overtemperature Shutdown: Auto recovery
Buy the Buy Power Supply Brand Part Number AHM150PS24C28 Online
Experience reliable power with the Power Supply Brand AHM150PS24C28, a 150W medical-grade model with a 24VDC output and high efficiency. It features robust safety certifications including EN60601-1 and UL62368-1, ensuring compliance with medical safety standards. Its compact design and wide input range of 80-264 VAC make it suitable for demanding environments. Support for overload protection and excellent EMI performance provide stability in critical applications. Order this high-quality power supply online today for dependable power delivery.
Buy Power Supply Brand AHM150PS24C28 now and experience unmatched reliability and performance for medical and industrial applications.
Frequently Asked Questions
Where can I buy XP POWER AHM150PS24C28?
You can click on the BUY or RFQ button to purchase AHM150PS24C28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AHM150PS24C28?
You can download the AHM150PS24C28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AHM150PS24C28?
XP POWER
