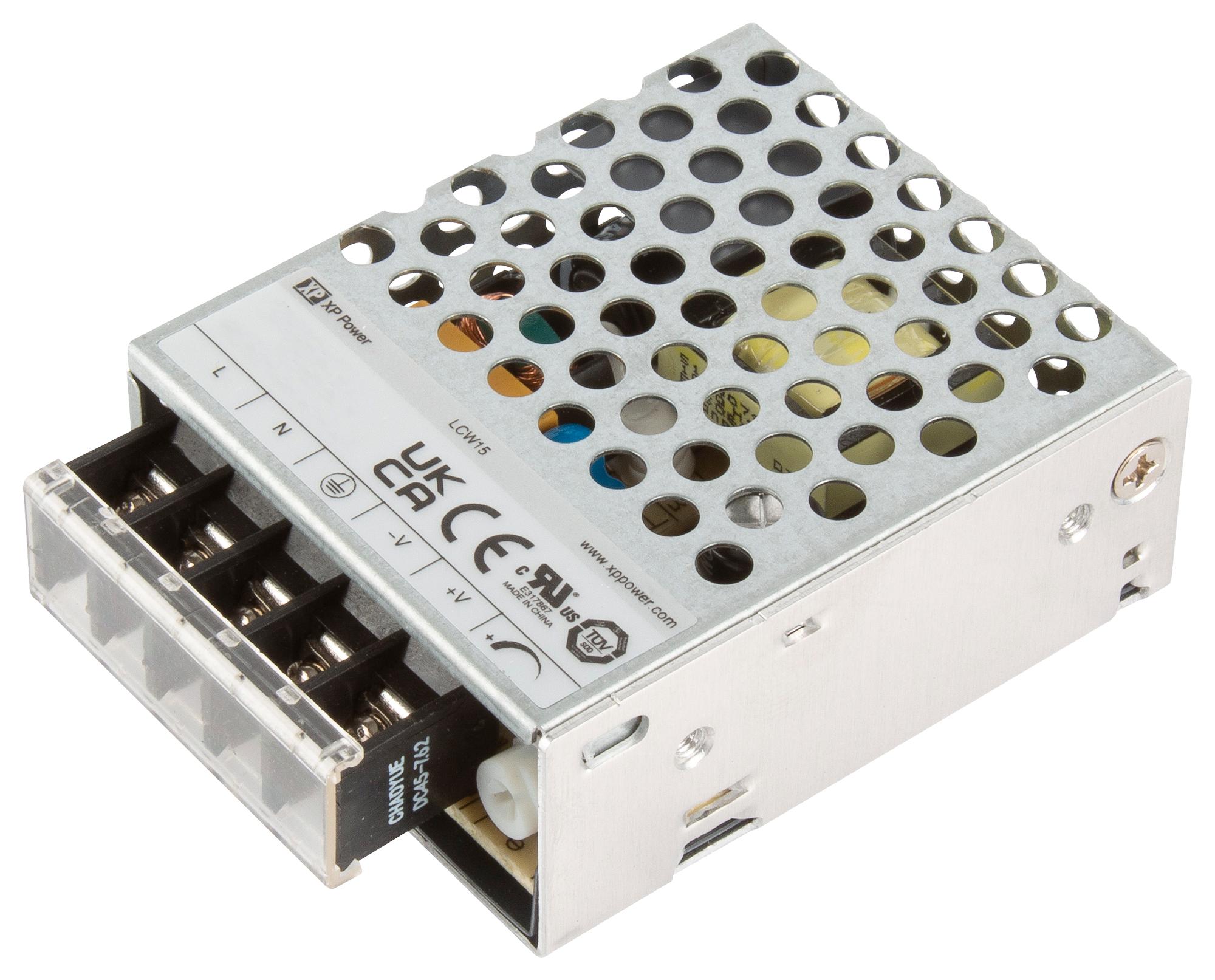

XP POWER LCW15US03 Power Supply
The LCW15 series regulated output AC to DC power supplies are convection cooled and designed to provide a cost-effective solution for industrial electronics and technology applications. They feature a wide input voltage range of 85-305VAC, output voltage adjustment, low standby power consumption, and various protections including short circuit, overcurrent, overload, and overvoltage. These power supplies are suitable for auxiliary power sources, security systems, lighting control, smart home and office systems, as well as vending and ticketing applications. They are certified by UL62368-1, EN 62368-1, CE, and UKCA. The 15W model includes an integrated connector cover, operates efficiently at 73%, with a switching frequency of 65kHz and ±10% output voltage trim. The units are conformal coated (optional), operate within a temperature range of -30°C to +70°C, and feature an aluminium chassis with a vented galvanized steel cover. Dimensions are 3.07 inches x 2.17 inches x 0.98 inches (78mm x 55mm x 25mm), and they come with a 3-year warranty.
XP POWER LCW15US03 Power Supply Specifications:
- Input Voltage: 85-305VAC
- Output Power: 15W
- Output Voltage Adjustment Range: +10%
- Efficiency: up to 73%
- Switching Frequency: 65kHz
- Dimensions: 3.07 inches x 2.17 inches x 0.98 inches (78mm x 55mm x 25mm)
- Operating Temperature: -30°C to +70°C
- Protections: short circuit, overcurrent, overload, overvoltage
- Certification: UL62368-1, EN 62368-1, CE, UKCA
- Chassis Material: Aluminium with vented galvanized steel cover
- Conformal Coating: Optional, ULO4V-0 rated
- Input Current (Full Load): 0.35A at 100VAC, 0.25A at 240VAC
- Isolation: Input to Output 4000Vac
- Operating Altitude: Up to 5000m
Buy the XP Power Series LCW15 15W Convection Cooled Power Supply: LCW15US03
Get the XP Power LCW15US03 power supply online today and experience high efficiency, robust protections, and versatile application support for industrial electronics. This 15W convection-cooled unit offers wide input voltage compatibility from 85-305VAC, with adjustable output voltage, conformal coating (optional), and a compact design measuring 3.07 x 2.17 x 0.98 inches. Perfect for secure, lighting, and automation systems, it guarantees reliable performance within a broad temperature range of -30°C to +70°C, backed by a 3-year warranty. Purchase now for peace of mind with proven quality.
Buy XP Power LCW15US03 convection cooled power supply now and ensure reliable power for industrial, security, and lighting control systems.
Frequently Asked Questions
Where can I buy XP POWER LCW15US03?
You can click on the BUY or RFQ button to purchase LCW15US03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW15US03?
You can download the LCW15US03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW15US03?
XP POWER
