XP POWER JHM2012D05 Medical Power Module
The JHM20 series of DC-DC modules by XP Power provides a compact, medical-grade power solution that meets international safety standards. These modules offer regulated single and dual outputs from 5V to 30V DC, with adjustable single outputs ±10%. Supporting a 2:1 input range, they feature a 2" x 1" footprint suitable for PCB mounting, with reinforced isolation of 4kVAC and 2 x MOPP at 250VAC. They include output trimming, short circuit protection, operate from -40°C to +80°C, and have been certified for IEC 60601-1 compliance, ensuring reliability and safety for medical devices.
XP POWER JHM2012D05 Medical Power Module Specifications:
- Input Voltage Range: 9V-36V DC (nominal 12V or 24V) with 2:1 input ratio
- Output Voltage: 5V to 30V DC, adjustable with ±10% trim
- Output Current: up to 3500 mA depending on model
- Efficiency: up to 88%
- Isolation Voltage: 4kVAC with double/reinforced insulation
- Operating Temperature: -40°C to +80°C, derating as per specifications
- Humidity Tolerance: 5% to 95% RH non-condensing
- Dimensions: 2" x 1" x 0.40" (50.8 x 25.4 x 10.2 mm)
- Short Circuit Protection: Yes, auto-recovery
- Overcurrent & Overvoltage Protections: Yes
- Leakage Current: 2.5 microamps (patient leakage current)
- Certifications: IEC 60601-1 3rd Edition, EN55011 Class A, UL, TUV
- Soldering Profile: Sn/Cu/Ni, peak temperature 260°C

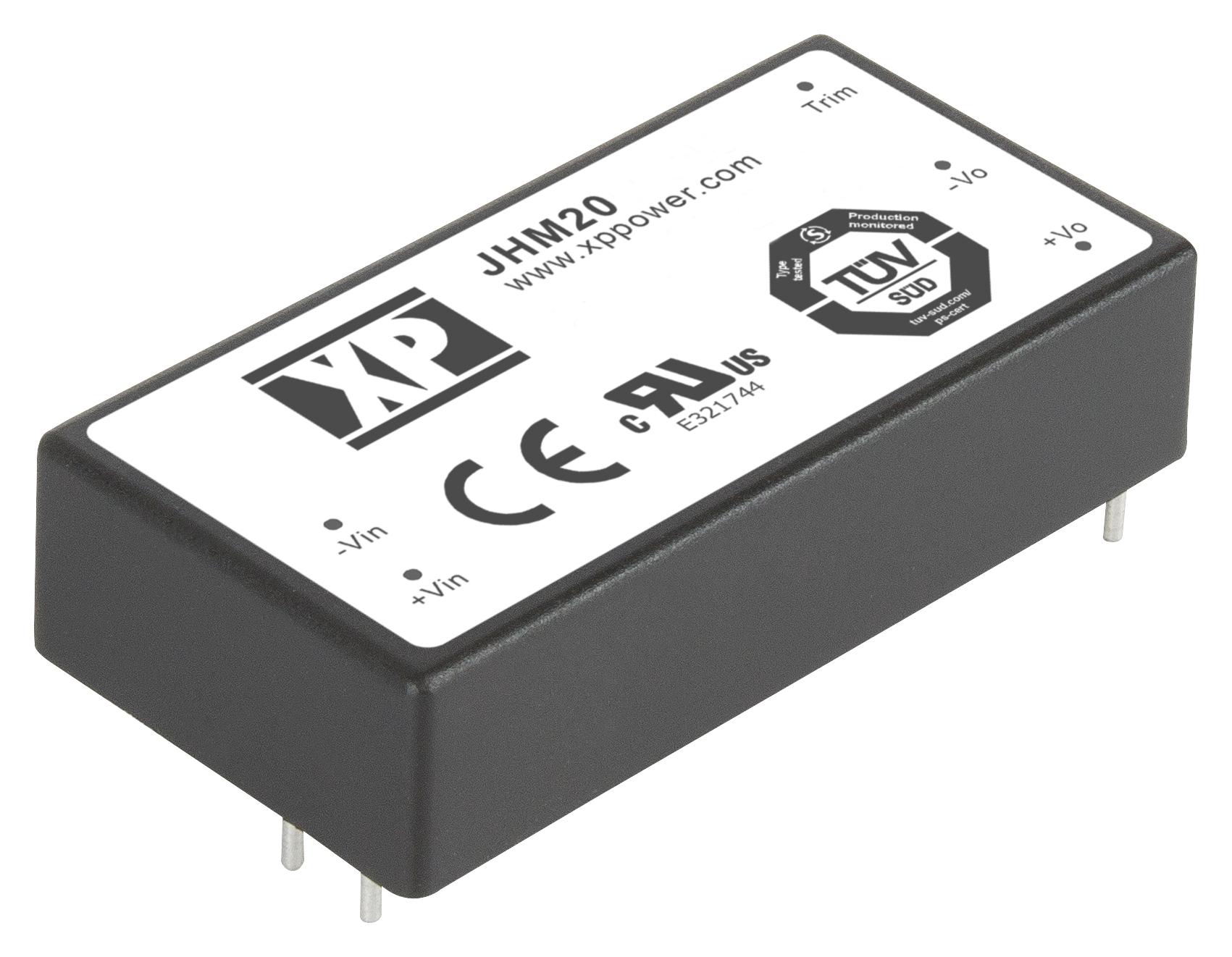

Buy the Buy XP Power JHM20 Series DC-DC Converter Part Number JHM2012D05 Online
Discover the reliable power solution for medical applications with XP Power’s JHM20 series. Compact and certified to IEC 60601-1 standards, these modules support regulated 5V-30V outputs, adjustable by ±10%. Featuring reinforced isolation, high efficiency, and safety protections, they are perfect for sensitive medical equipment. The footprint is PCB-friendly, measuring only 2" x 1" x 0.40". With a customer-focused design, order online today for fast delivery and ensure your medical devices maintain optimal performance and safety standards with these trusted power modules.
Order your XP Power JHM20 Series JHM2012D05 today and ensure your medical devices operate safely with reliable, certified power modules.
Frequently Asked Questions
Where can I buy XP POWER JHM2012D05?
You can click on the BUY or RFQ button to purchase JHM2012D05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2012D05?
You can download the JHM2012D05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2012D05?
XP POWER
