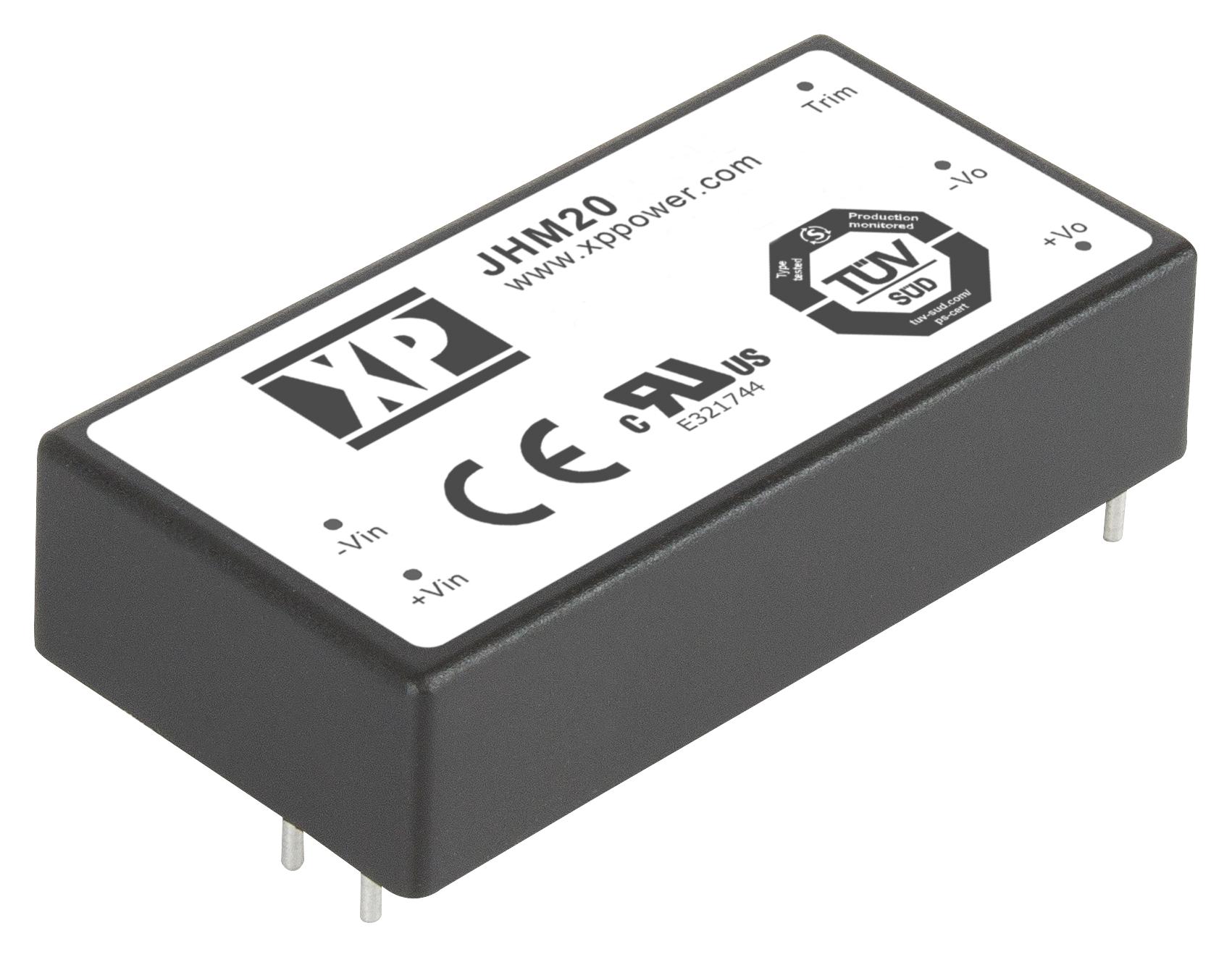

XP POWER JHM2048S05 Medical Power Module
The JHM20 series DC-DC modules offer a compact and reliable power solution designed to meet international medical safety standards. They feature regulated single and dual outputs ranging from 5V to 30V DC, with single outputs being trimmable by ±10%. The modules have a 2:1 input voltage range and a 2 x 1-inch footprint for easy PCB mounting. Certified for medical applications, they provide 4 kVAC reinforced isolation, dual Means of Patient Protection with a 250VAC working voltage, and a low patient leakage current of 2.5 microamps. These modules comply with IEC60601-1, 3rd Edition, including risk management and are approved for use under EN55011 Class A conditions without external components.
XP POWER JHM2048S05 Medical Power Module Specifications:
- Input Voltage Range: 9-36 VDC (12V, 24V, 36V, 75V nominal options)
- Output Voltage: 5V to 30V DC, with trimmable range of ±10%
- Output Current: up to 1750 mA, specific models vary
- Efficiency: Up to 88%
- Isolation Voltage: 4,000 VAC (reinforced with 250 VAC working voltage, 1 min.)
- Leakage Current: 2.5 microamps at 25°C
- Operating Temperature: -40°C to +80°C, derating applies beyond 60°C
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Case Material: Non-conductive UL94V-0 plastic
- Pin Material: Solder coated copper
- Switching Frequency: 250 kHz
- Certifications: IEC60601-1, EN55011 Class A, UL, TUV, CSA
- Protection Features: Short circuit, overload, overvoltage, and thermal protections
Buy the XP Power JHM20 – Reliable Medical DC-DC Converter Modules for Industrial Applications
Purchase the XP Power JHM20 series online today and enjoy a reliable, compact, and certified medical power solution. With reinforced isolation, low leakage current, and excellent efficiency, these modules ensure safe operation in medical and industrial environments. Their regulated outputs and wide input voltage range make them versatile for various applications. Designed to meet international standards, they provide peace of mind and long-term durability. Order now to upgrade your device's power management with industry-leading medical-grade DC-DC modules, ensuring safety, compliance, and performance.
Get XP Power JHM20 series today—built for medical-grade reliability, high isolation, and efficient power delivery in critical medical and industrial devices.
Frequently Asked Questions
Where can I buy XP POWER JHM2048S05?
You can click on the BUY or RFQ button to purchase JHM2048S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2048S05?
You can download the JHM2048S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2048S05?
XP POWER
