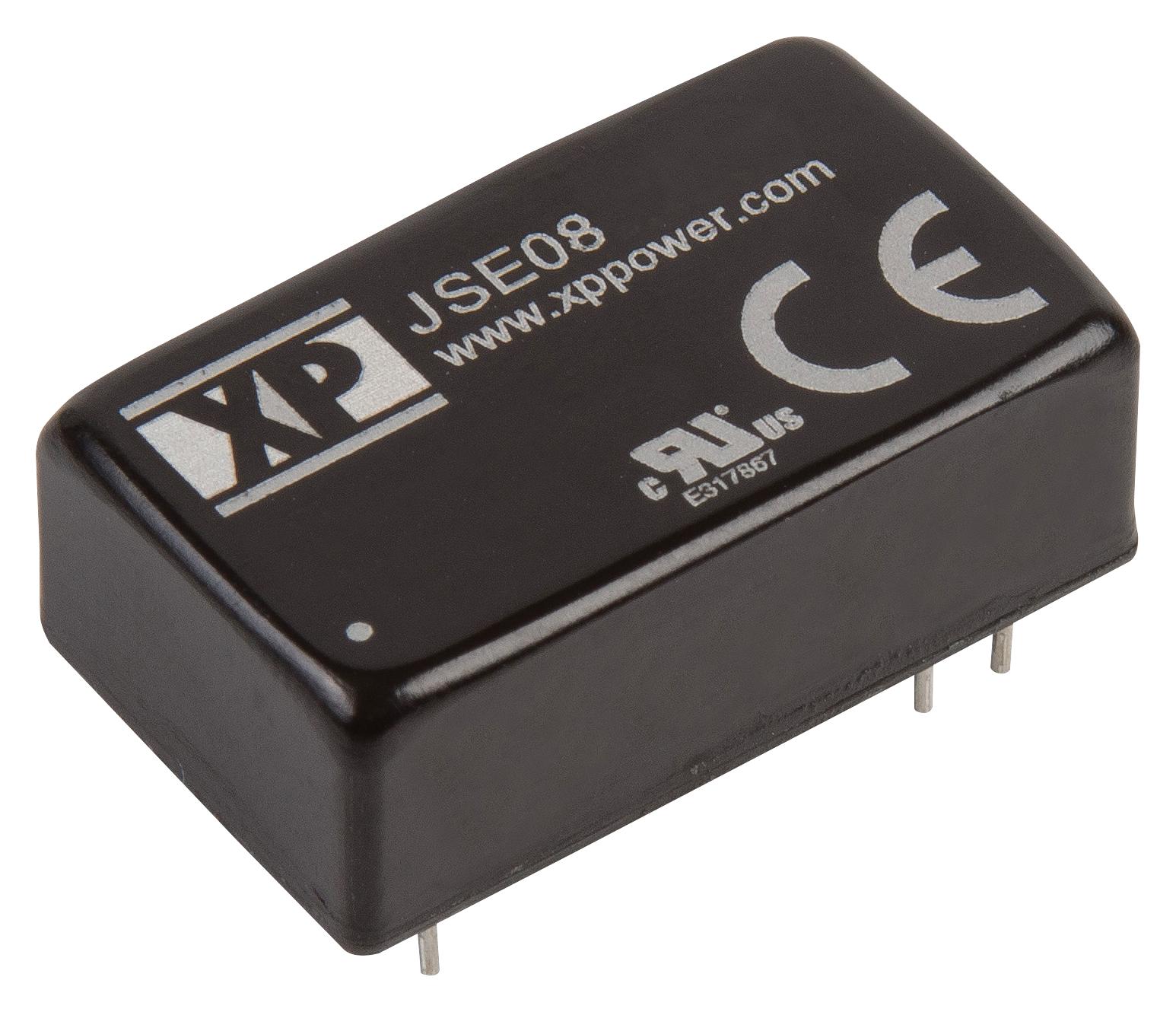

XP POWER JSE0848S05 DC-DC Converter
The JSE08 series comprises a new range of 8-watt DC-DC converters housed in an encapsulated DIP16 package. These converters offer high power density and come in a compact 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm) shielded metal case with an insulated baseplate. They feature PCB pin mounting and support a wide 2:1 input voltage range, suitable for nominal inputs of 12VDC (9V to 18V), 24VDC (18V to 36V), and 48VDC (36V to 75V). Available in 21 models with both single and dual regulated outputs, including 3.3V, 5V, 12V, 15V, and 24VDC, and dual options of ±12V or ±15V. Compliance with IEC 60950-1 and UL safety standards, offering 1500VDC isolation between input and output, makes these converters ideal for power management, industrial, and instrumentation applications. Efficiency is typically 78% to 86%, with high reliability and non-condensing operation from -40°C to 105°C.
XP POWER JSE0848S05 DC-DC Converter Specifications:
- Power: 8 Watts
- Input Voltage Range: 9V-18V, 18V-36V, 36V-75V (2:1 range)
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±12V, ±15V
- Input Current Max: 1.6A (3.3V), 1.6A (5V), 0.665A (12V), 0.535A (18-36V), 0.335A (24V)
- Efficiency: 78% to 86%
- Isolation: 1500VDC
- Operating Temperature Range: -40°C to +105°C
- Case Material: Metal with insulated baseplate
- Package: DIP16, PCB pin mounting
- Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8 mm)
- Certifications: IEC 60950-1, UL/cUL 60950-1
- Ripple & Noise: <150 mV pk-pk
- Switching Frequency: approx. 370 kHz
- Surge and EMI: Meets EN61000-4-4, -4-6 with external capacitor, EN61000-4-2 up to 8kV air discharge
- Case Flammability: UL 94V-0
- Weight: Approx. 6.1 g
Buy the Buy XP Power DC DC Converter Part Number JSE0848S05 Online
Purchase the XP Power DC-DC Converter from the JSE08 series online today to benefit from high power density, wide input voltage range, regulated outputs, and superior safety standards. Designed for reliable power management in industrial, instrumentation, and automation systems, this converter offers efficiency up to 86%, excellent insulation, and operating temperatures from -40°C to 105°C. Easy PCB pin mounting, compact size, and compliance with UL and IEC safety standards make it a perfect choice for demanding electronic projects and equipment. Order now for fast delivery and exceptional performance.
Buy XP Power JSE0848S05 now and experience unmatched reliability and high efficiency in power conversion for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER JSE0848S05?
You can click on the BUY or RFQ button to purchase JSE0848S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSE0848S05?
You can download the JSE0848S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSE0848S05?
XP POWER
