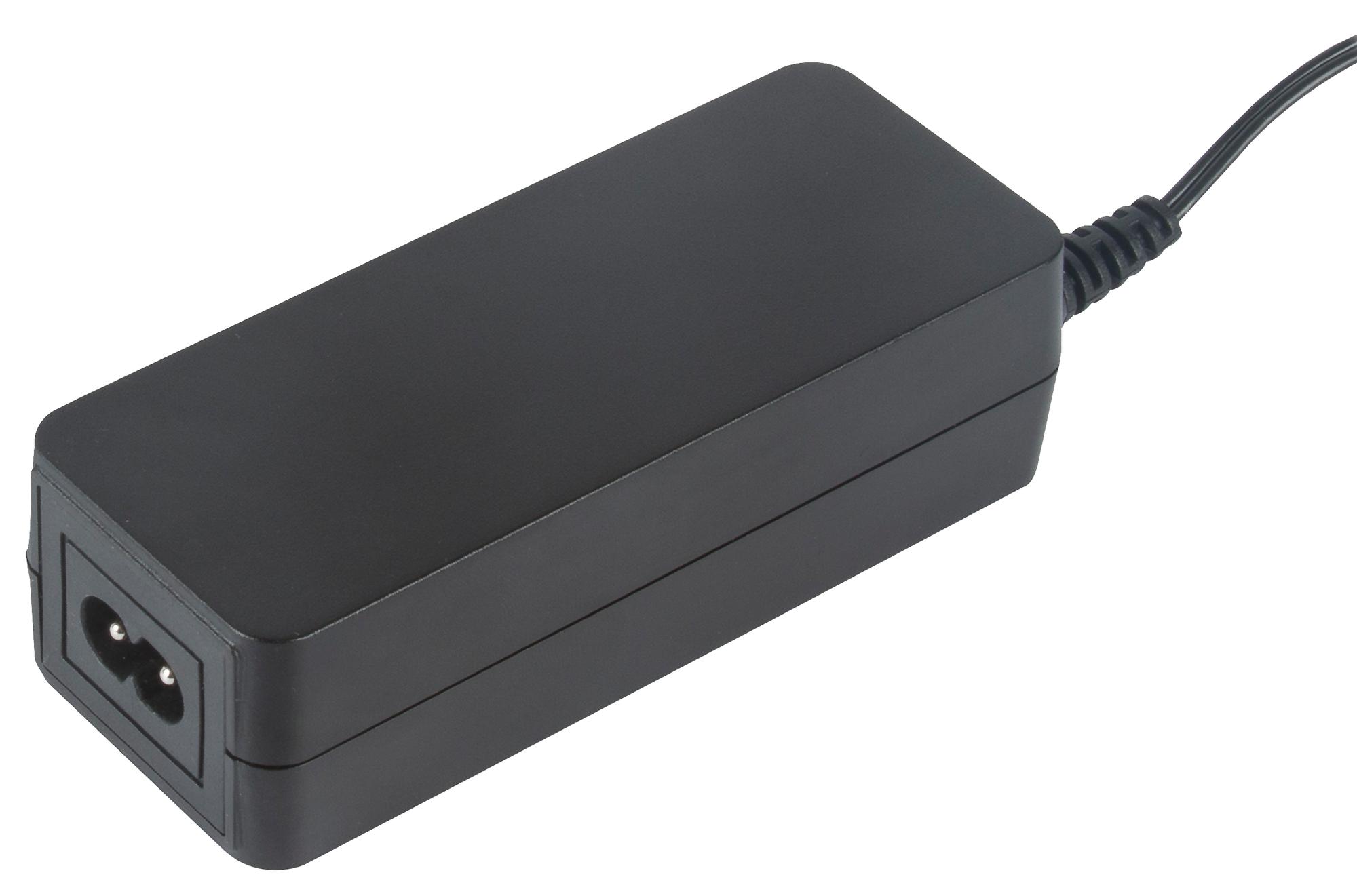

XP POWER VET36US120C2JA Power Supply
The VET36 series AC-DC power supplies by XP Power deliver 36 watts of reliable power with energy efficiency level VI compliance, high active mode efficiency, and ultra-low no-load power consumption. Suitable for cost-sensitive applications, these supplies feature universal input (90-264 VAC), multiple output voltages from 12 V to 24 V, and industry-leading performance with a compact design measuring 4.53 x 1.89 x 1.28 inches. Built with class II construction, they offer high regulation accuracy, excellent transient response, and reliable short circuit protection for continuous operation in industrial or electronic systems.
XP POWER VET36US120C2JA Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-60 Hz
- Input Current: 0.8 A at 115 VAC
- Power Factor: EN61000-8-2, class A
- Output Voltages: 12 V to 24 V (various models)
- Output Current: Up to 3000 mA
- Efficiency: Typically 87% at full load
- No Load Power: 5 mW
- Protection: Continuous short circuit, auto recovery
- Isolation: 3000 VAC input to output
- Operating Temperature: 0 to +60 °C (derated at higher temps)
- Dimensions: 115.0 x 48.0 x 32.5 mm
- Weight: 165 g
- Cooling Method: Natural convection
- Certifications: UL, TUV, IEC
Buy the Buy XP Power VET36 Series Power Supply Part Number VET36US120C2JA Online
Enhance your electronic or industrial systems with the XP Power VET36 series power supplies. These compact, energy-efficient units offer universal input, multiple output voltages, and high regulation accuracy, ensuring reliable performance in demanding environments. Designed with low no-load power consumption and compliance with energy efficiency standards, they provide long-term cost savings and environmental benefits. Easy to integrate with a small footprint, these power supplies deliver stable power supply solutions for various applications, making them the ideal choice for professionals seeking efficiency, reliability, and quality.
Buy XP Power VET36US120C2JA now and experience unmatched reliability and performance with energy-efficient design and industry-leading regulation.
Frequently Asked Questions
Where can I buy XP POWER VET36US120C2JA?
You can click on the BUY or RFQ button to purchase VET36US120C2JA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VET36US120C2JA?
You can download the VET36US120C2JA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VET36US120C2JA?
XP POWER
