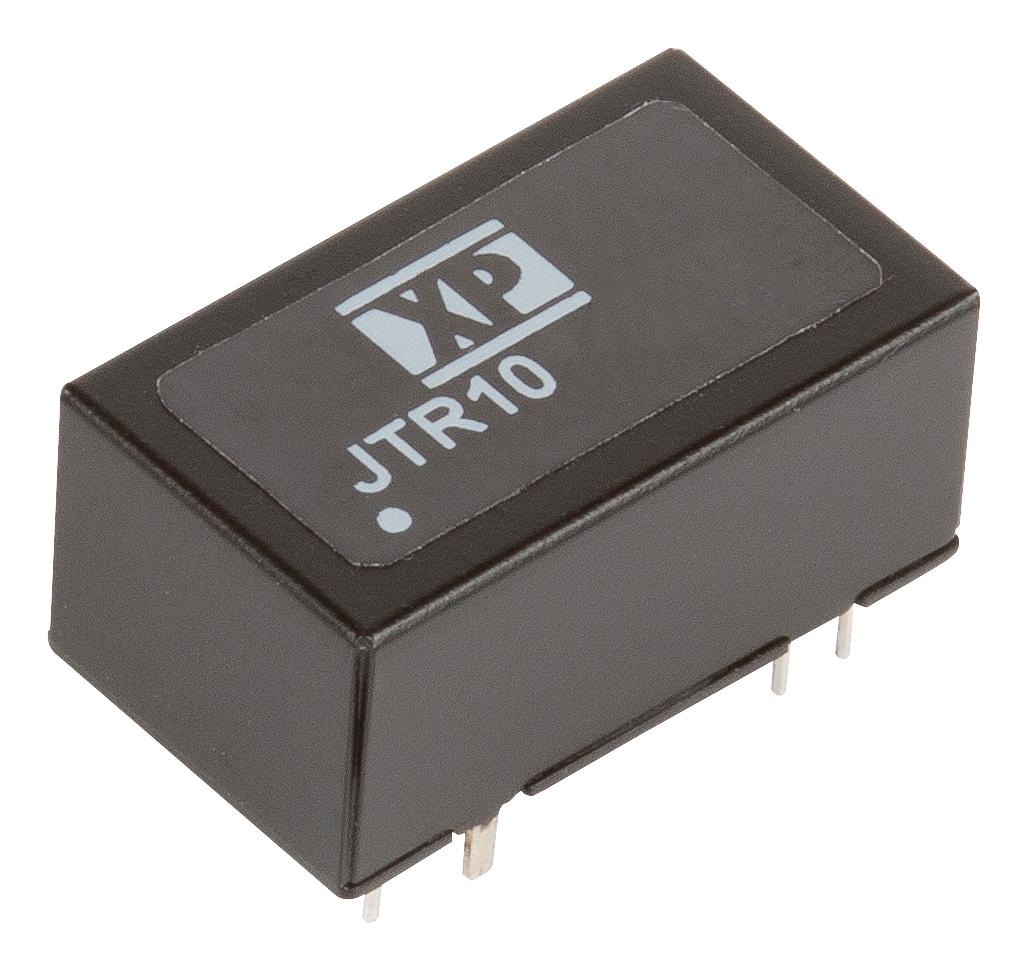

XP POWER JTR1024S05 DC-DC Converter
The JTR10 series are 10W DC to DC power converters housed in a DIP16 package. These modules feature an ultra-wide 4:1 input voltage range, 1500VDC isolation voltage, and high power density. They are certified for ITE safety standards and offer 500VDC isolation. Operating reliably within a temperature range of -40°C to +88°C, with full power output maintained up to +70°C, these compact converters are ideal for industrial and automation systems. Their small dimensions of 0.94 inches by 0.54 inches by 0.41 inches (23.8mm x 13.7mm x 10.3mm) make them suitable for space-constrained applications.
XP POWER JTR1024S05 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36V or 18V to 75VDC with a wide 4:1 ratio
- Output Power: 10 Watts, full power at -40°C to +88°C ambient temperatures
- Isolation Voltage: 1500VDC, 500VDC operational
- Efficiency: Up to 87%
- Operating Temperature: -40°C to +88°C, full power to +70°C
- Dimensions: 0.94 x 0.54 x 0.41 inches (23.8mm x 13.7mm x 10.3mm)
- Case Material: Black coated copper with UL94V-0 epoxy potting
- Electrical: Input to output isolation, <1mA leakage, ripple noise under 80 mV pk-pk
- Protection: Continuous short circuit, overload, and thermal protection
- Certifications: Pending IEC/UL/cUL 62368-1 safety approvals
- Switching Frequency: approx. 370 kHz, high power density with efficient thermal management
- Thermal Shock Resilience: Full power operation from -40°C to +85°C
Buy the XP Power Series JTR10 DC-DC Converter: JTR1024S05
Purchase the XP Power JTR1024S05 DC-DC converter online today and benefit from a reliable, efficient power supply solution suitable for space-constrained industrial applications. This 10W module features an ultra-wide input voltage range, robust 1500VDC isolation, and full power operation from -40°C to +88°C, making it ideal for demanding environments. Its compact DIP16 package, high efficiency up to 87%, and safety certifications ensure quality and safety. Don't miss the opportunity to enhance your system with this high-performance power conversion module available for easy online purchase with fast delivery.
Buy XP Power JTR1024S05 DC-DC converter now and experience unmatched reliability and performance in compact industrial power solutions.
Frequently Asked Questions
Where can I buy XP POWER JTR1024S05?
You can click on the BUY or RFQ button to purchase JTR1024S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTR1024S05?
You can download the JTR1024S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTR1024S05?
XP POWER
