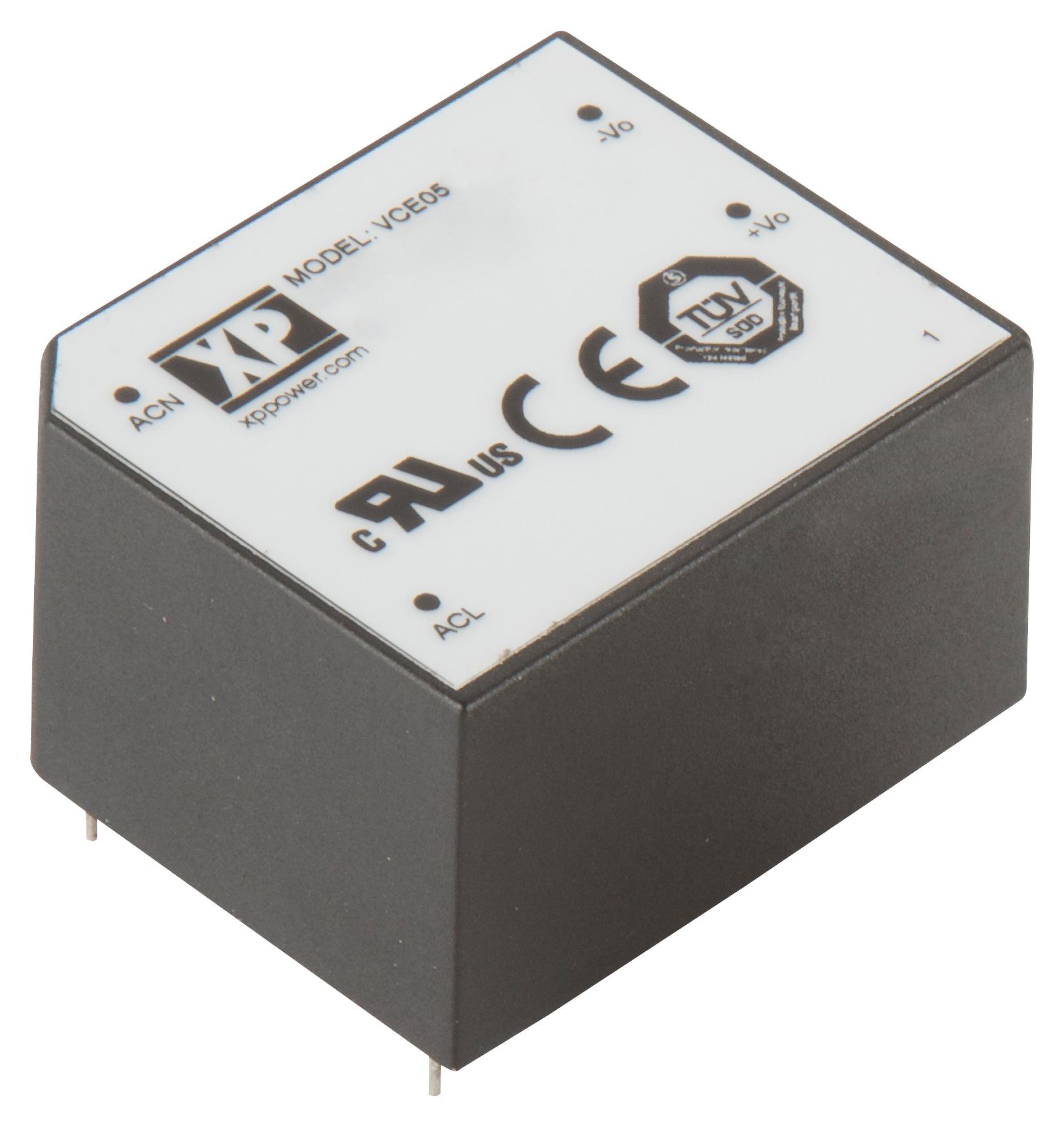

XP POWER VCE05US48 Industrial Power Supply
The VCEO5 series consists of compact, reliable 5W open frame and encapsulated AC-DC power supplies designed for low-cost industrial and IT applications. Measuring approximately 1.30 x 1.10 x 0.75 inches, these supplies offer single outputs from 3.3V to 48V, with efficiencies up to 78%. They feature wide input voltage ranges of 85-264VAC, excellent electromagnetic compatibility, safety approvals, and isochronic isolation of 3000 V. Their robust design supports operational temperatures from -25°C to +70°C, making them ideal for space-constrained, dependable power solutions in industrial environments.
XP POWER VCE05US48 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Output Power: 5W
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V (model dependent)
- Output Current: 1210 mA at 3.3V, 1000 mA at 5V, 550 mA at 9V, 410 mA at 12V, 330 mA at 15V, 210 mA at 24V, 100 mA at 48V
- Efficiency: Up to 78%
- No Load Power: 0.3W
- Dimensions: 1.30 x 1.10 x 0.75 inches (33.02 x 27.94 x 19.05 mm)
- Operating Temperature: -25°C to +70°C
- Isolation: 3000 V between input and output
- Regulation: Line ±0%, Load ±3% (model dependent)
- EMC Standards: EN55022 Level B, EN60100-3-2, EN61000-3-3
- Safety Approvals: EN60950, UL60950
Buy the XP Power VCE05US48 – Reliable Power Supply for Industrial Applications
Purchase the XP Power VCE05US48 power supply online today. This 5W compact unit offers high efficiency, wide input voltage range, and robust safety features. Ideal for industrial automation, control systems, and space-constrained applications, it ensures reliable power delivery with excellent electromagnetic compatibility and a broad temperature range. Easy integration into existing systems, UL and CE safety approvals, and a durable design make it the perfect choice for engineers and system designers seeking dependable, cost-effective power solutions in demanding industrial environments.
Get XP Power VCE05US48 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER VCE05US48?
You can click on the BUY or RFQ button to purchase VCE05US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE05US48?
You can download the VCE05US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE05US48?
XP POWER
