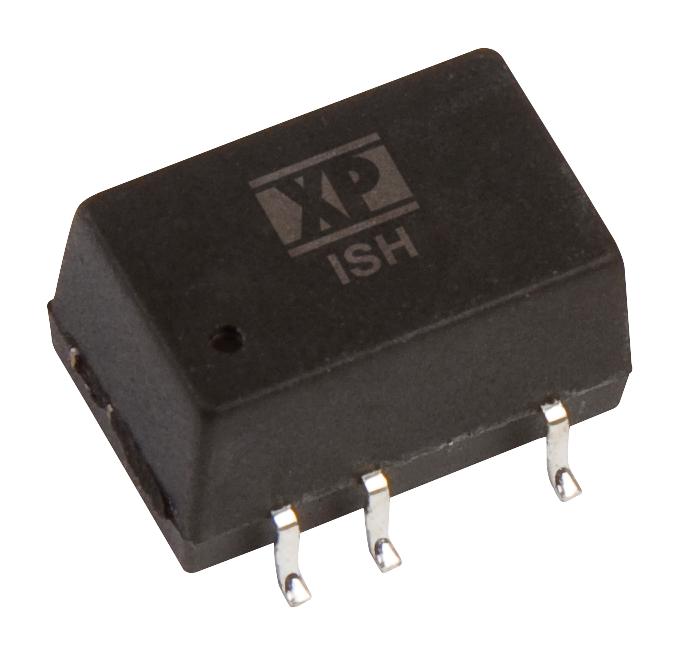

XP POWER ISH1212A Industrial Power Converter
The XP Power DC-DC Converter is a compact, 2-watt, single-output power supply designed for industrial applications requiring reliable voltage conversion. It features an SMD package, industry-standard pinout, and operating temperatures from -40°C to +105°C. The converter offers 1500 VDC isolation with an optional 3000 VDC version, high efficiency, and excellent transients response. Its rugged design supports worldwide compliance, perfect for automation, instrumentation, and control systems, ensuring consistent performance in demanding environments.
XP POWER ISH1212A Industrial Power Converter Specifications:
- Power: 2 Watts
- Input Voltage Range: 10.8-13.2 VDC
- Output Voltage: 5V nominal
- Efficiency: Typical 70.8% to 73.2%
- Isolation: 1500 VDC, optional 3000 VDC with suffix -H
- Operating Temperature: -40°C to +105°C, derate above 100°C
- Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Pinout: Industry-standard, SMD package
- Switching Frequency: 700 to 135 kHz
- Operating Humidity: Up to 95% RH non-condensing
- Storage Temperature: -55°C to +125°C
- Weight: 1.5 grams
- Isolation Resistance: 10^8 Ω at 500 VDC
- Peak Capacitive Load: 220 μF
- Case Temperature: +115°C
Buy the XP Power ISH1212A – Reliable Industrial DC-DC Converter for Power Conversion
Purchase the XP Power industrial power converter online today. With a compact design, high efficiency, and 1500 VDC isolation, it ensures reliable voltage regulation for automation and instrumentation projects. Its operating temperature range from -40°C to +105°C and rugged SMD package make it suitable for demanding industrial settings. Easily upgrade to 3000 VDC isolation with suffix -H for additional safety. Designed for ease of integration, this converter offers excellent transient response, minimal ripple, and high reliability, making it an ideal choice for critical power applications.
Get XP Power ISH1212A today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER ISH1212A?
You can click on the BUY or RFQ button to purchase ISH1212A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISH1212A?
You can download the ISH1212A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISH1212A?
XP POWER
