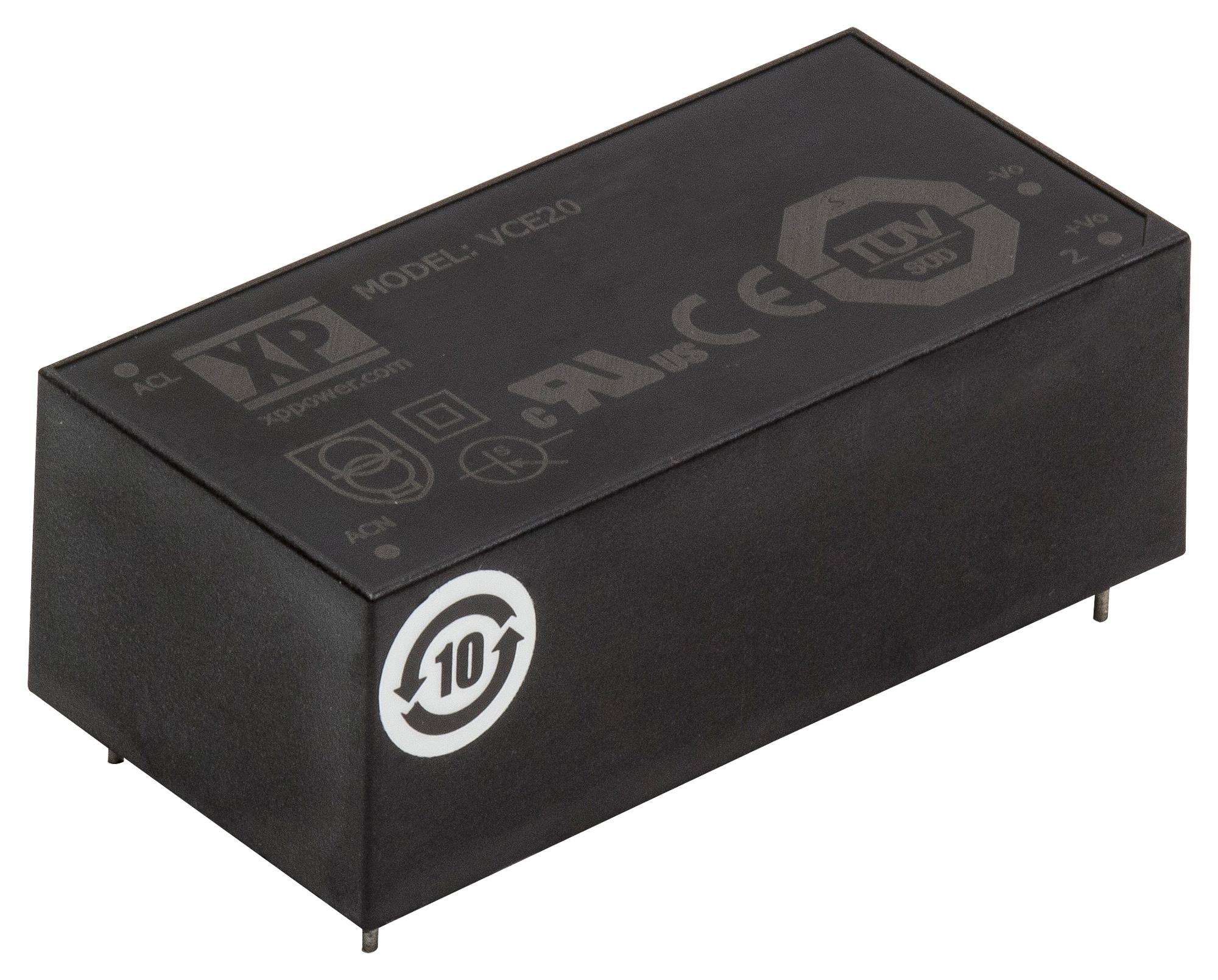

XP POWER VCE20US48 AC-DC Power Supply
The VCE20 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for cost-effective use in ITE, industrial, and domestic applications. These power supplies are available in two mechanical configurations: open frame and PCB-mounted encapsulated types. They are certified to global safety standards, including standards for both ITE and household appliances, and conform to Class B limits for conducted and radiated emissions. These Class II isolation power supplies support a wide input voltage range of 85 to 305 VAC and provide single outputs from 3.3V to 48VDC. Suitable for various applications, they feature easy integration and compliance with the EN55035 immunity standard. Due to high market demand, lead times have been extended, and delivery dates may vary. This product is exempt from discounts.
XP POWER VCE20US48 AC-DC Power Supply Specifications:
- Input Voltage Range: 85 to 305 VAC, derating from 100% at 90VAC to 90% at 85VAC
- Output Voltage: 3.3V to 48VDC with single outputs
- Output Power: 20W for all models
- Efficiency: 85%
- Isolation: Input to Output 3000 vac
- Operating Temperature: -25°C to +70°C (derate above +45°C for some models)
- Cooling: Convection-cooled
- Dimensions: 2.60 x 1.30 x 0.92 inches (66.0 x 33.0 x 23.4 mm) for encapsulated; 2.50 x 1.20 x 0.86 inches (63.5 x 30.5 x 21.8 mm) for open frame
- Weight: 0.198 lbs (90 g) encapsulated; 0.088 lbs (40 g) open frame
- Certifications: IEC62368-1, IEC60335-1, IEC60950-1, UL62368-1, EN62368-1
- EMC Standards: EN55035 Conducted & Radiated, EN61000-3-2, EN61000-3-3
- Switching Frequency: 5 to 65 kHz
- Vibration and Shock: IEC standards compliant
- Environmental: -40°C to +85°C storage, 95% RH humidity, altitude up to 5000m
Buy the XP Power Series VCE20 AC-DC Power Supplies: VCE20US48
Discover the fast, secure way to purchase the XP Power VCE20 series power supply online. These reliable, efficient power supplies feature wide input voltage support from 85 to 305VAC, with single outputs up to 48VDC. Ideal for industrial, ITE, and household applications, they meet international safety and EMC standards, ensuring dependable operation. Easy to integrate, convection-cooled, and designed for durability, these power supplies support a broad temperature range and feature UL, IEC, and EN certifications. Buy now and ensure your projects are powered by high-quality, globally certified solutions designed for efficiency and safety.
Order your XP Power Series VCE20US48 today and equip your systems with reliable, cost-effective power solutions designed for industrial and domestic use.
Frequently Asked Questions
Where can I buy XP POWER VCE20US48?
You can click on the BUY or RFQ button to purchase VCE20US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US48?
You can download the VCE20US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US48?
XP POWER
