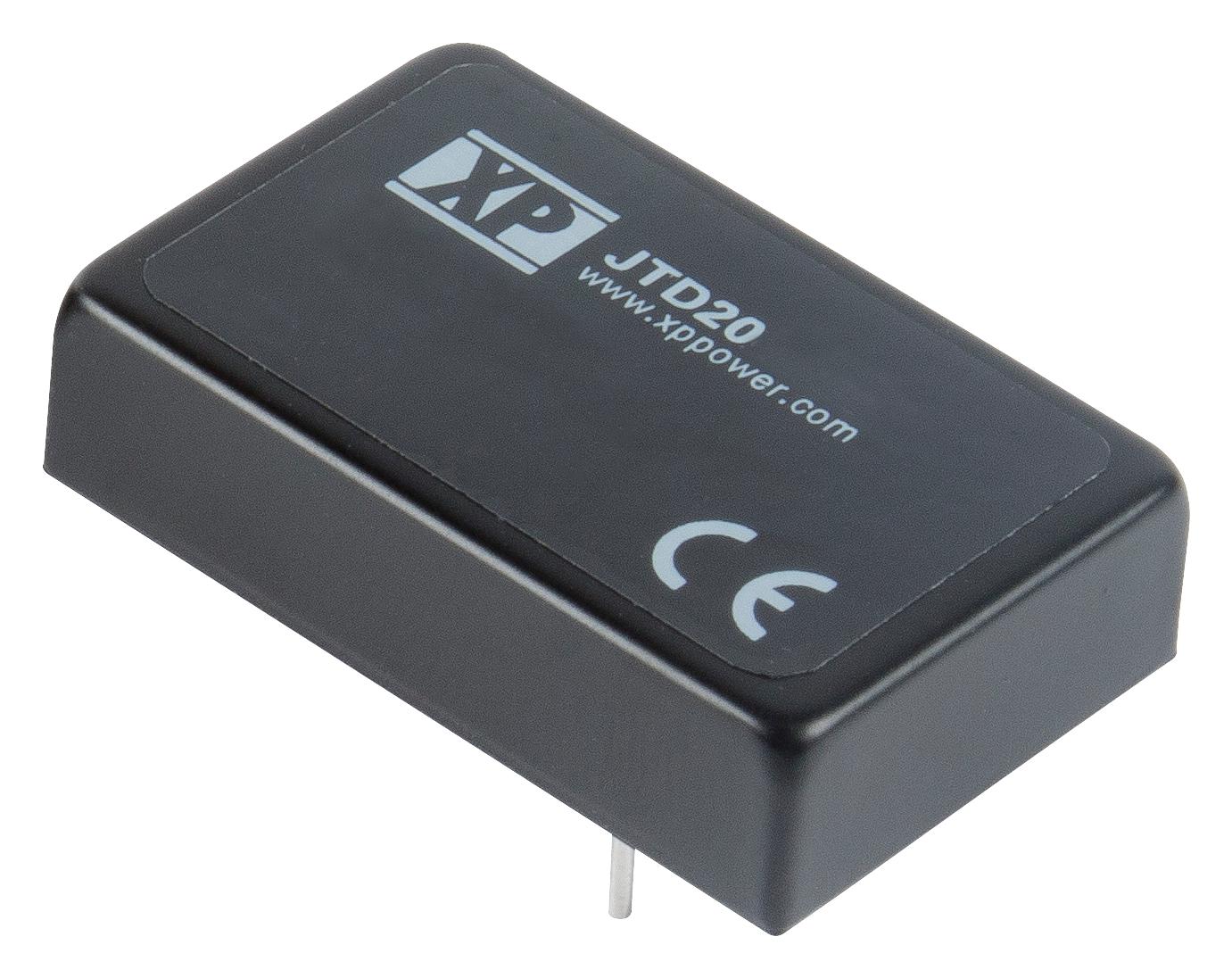

XP POWER JTD2048S3V3 DC-DC Converter
The JTD20 series of 20W DC-DC converters housed in a compact metal enclosure measure 1.6 inches by 1 inch by 0.41 inches (40.6mm x 25.4mm x 10.4mm). These converters feature a wide 4:1 input voltage range, suitable for 9V to 36V DC or 18V to 75V DC inputs. They offer single or dual output options, operate efficiently over a temperature range from -40°C to 100°C, and can deliver full load at 65°C ambient temperature. The devices provide 3000VDC isolation, ±10% output voltage trimming, and remote on/off control. Their applications include power management and various DC power conversion needs.
XP POWER JTD2048S3V3 DC-DC Converter Specifications:
- Power Output: 20 Watts
- Input Voltage Range: 9-36V or 18-75V DC
- Input Surge: Not specified
- Operation Temperature: -40°C to +100°C
- Full Load at: 65°C ambient
- Isolation Voltage: 3000 VDC
- Output Voltage Trim: ±10%
- Output Power: 20W
- Dimensions: 1.6 x 1.0 x 0.41 inches (40.6 x 25.4 x 10.4 mm)
- Output Options: Single or dual outputs
- Efficiency: Up to 90%
- Switching Frequency: 270/830 kHz
- Protection Features: Short circuit, regulation
- Case Material: Metal
- Remote On/Off: Yes
- Weight: Approximately 29 grams
Buy the Buy XP Power DC-DC Converter Part Number JTD2048S3V3 Online
Order the XP Power DC-DC converter JTD2048S3V3 online today to enjoy fast delivery, secure checkout, and a trusted solution for your power management needs. This compact, robust converter offers a wide input voltage range, high efficiency up to 90%, and 3000V isolation, making it suitable for industrial and commercial applications. Its features include remote on/off control, output trimming, and full load operation at 65°C ambient. Upgrade your power systems with confidence and experience seamless integration, dependable performance, and excellent value by purchasing online now.
Buy XP Power JTD2048S3V3 now and benefit from high efficiency and reliable power conversion in a compact design.
Frequently Asked Questions
Where can I buy XP POWER JTD2048S3V3?
You can click on the BUY or RFQ button to purchase JTD2048S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTD2048S3V3?
You can download the JTD2048S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTD2048S3V3?
XP POWER
