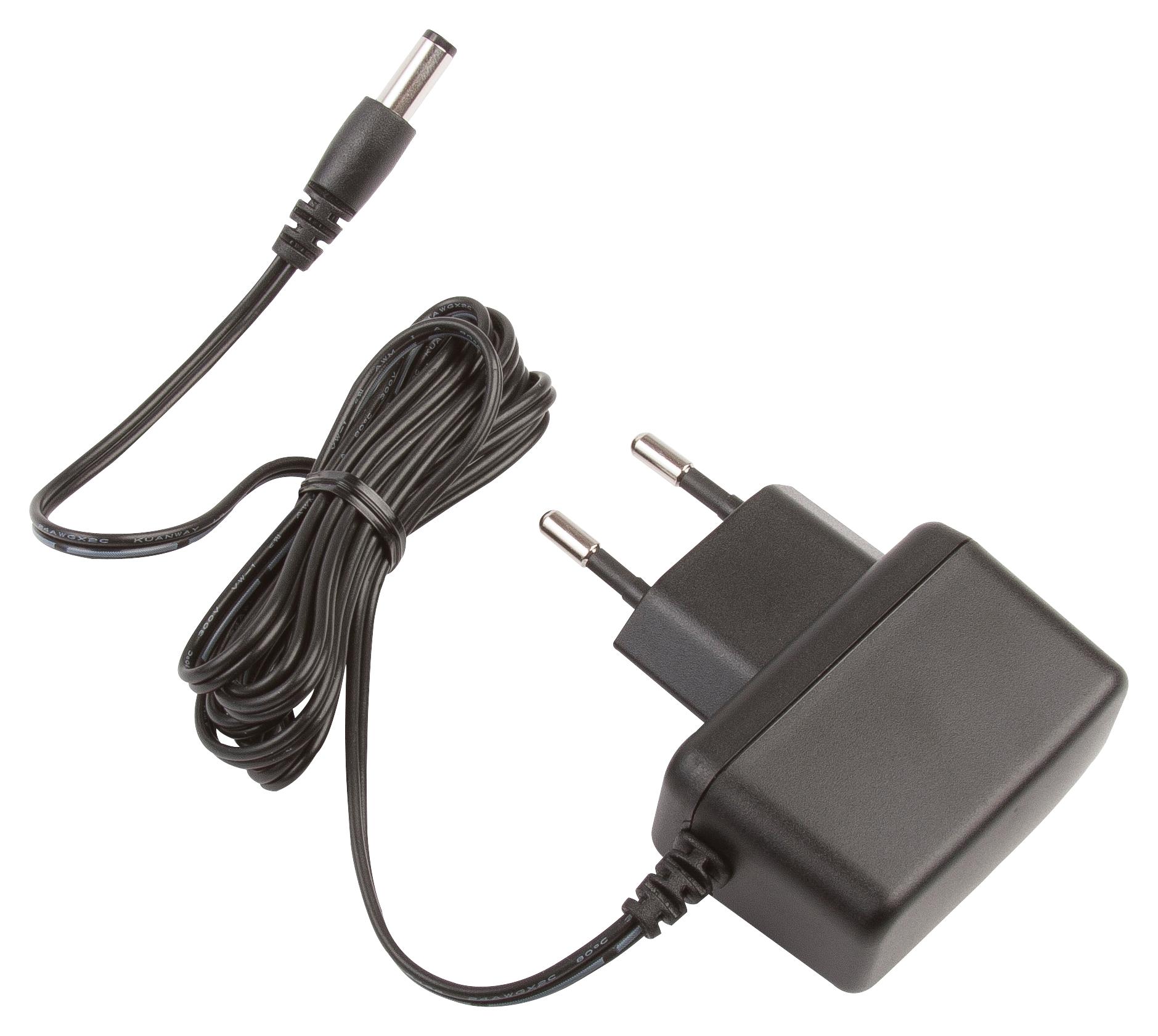

XP POWER VEL36US240EUJA Power Adapter
The VEL36 series wall plug adapters meet ENERGY STAR Level VI standards, providing high efficiency and low no-load power consumption. Suitable for cost-sensitive applications, they feature universal input, fixed mains connectors, and Class II double insulation for safety. Output voltages range from 12V to 24V with a 5.5mm x 2.1mm x 12mm DC jack. Certified with UL/cUL60950-1 and EN60950-1, dimensions are 94mm x 35mm x 64.8mm. These power supplies are ideal for power management, consumer electronics, and industrial applications, ensuring reliable and efficient performance.
XP POWER VEL36US240EUJA Power Adapter Specifications:
- Output Voltages: 12V, 16V, 18V, 24V with 5% regulation
- Input Voltage: 100-240VAC
- Input Frequency: 50/60Hz
- Dimensions: 94mm x 35mm x 64.8mm
- Connector: 5.5mm x 2.1mm DC jack
- Efficiency: 87% at full load
- Power Factor: >0.9
- No Load Power Consumption: <0.075W
- Total Regulation: 5%
- Start Up Delay: 4s
- Temperature Range: 0°C to +60°C
- Certifications: UL/cUL60950-1, EN60950-1
- Safety: Double insulation, UL Listed
Buy the Buy XP Power VEL36 Series Power Adapters Part Number VEL36US240EUJA Online
Purchase the XP Power VEL36US240EUJA power adapter online today for a reliable, energy-efficient solution that meets the latest standards. With universal input, UL and EN certifications, and output voltages of 12V, 16V, 18V, and 24V, this compact power supply is perfect for powering consumer electronics, industrial applications, and power management systems. Its high efficiency of 87% reduces energy wastage, while its low no-load power consumption minimizes standby energy draw. Order now for industry-leading performance and dependability delivered directly to your door.
Order your XP Power VEL36US240EUJA power adapter today and ensure reliable, energy-efficient power delivery for your electronic devices.
Frequently Asked Questions
Where can I buy XP POWER VEL36US240EUJA?
You can click on the BUY or RFQ button to purchase VEL36US240EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL36US240EUJA?
You can download the VEL36US240EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL36US240EUJA?
XP POWER
