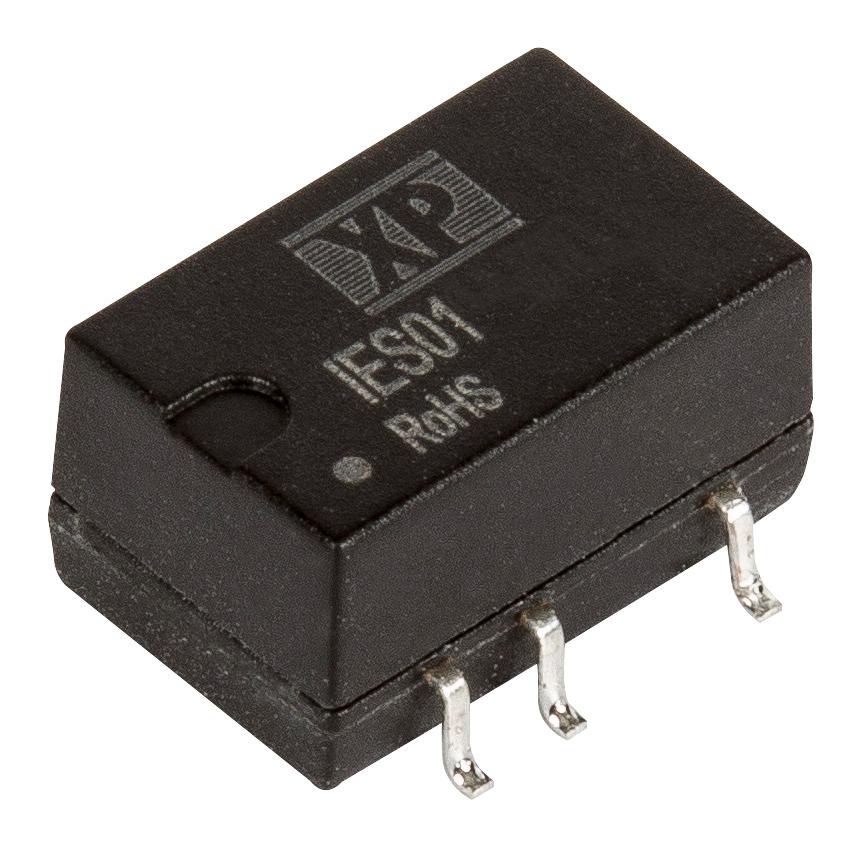

XP POWER IES0105S03 DC-DC Isolated Power Supply
The IES01 series provides a reliable isolated power solution for distributed systems, including analog, digital, data, and relay circuits. It features a compact SMD DIP8 package, offering a single unregulated output with an input voltage range of ±10%. The product delivers 1.5kVDC isolation with an optional 3kVDC, and includes continuous short circuit protection. It is designed for high efficiency and can operate across a temperature range from -40°C to +105°C, maintaining full load at 100°C. Safety standards are met with UL62368-1 approval. Available in tape and reel packaging for easy automation.
XP POWER IES0105S03 DC-DC Isolated Power Supply Specifications:
- Input Voltage Range: ±10%, 26.4V to 48VDC
- Output Voltage Options: 3.3V, 5V, 6V, 9V, 12V, 15V, 24V
- Output Current Range: 4mA to 270mA depending on model
- Isolation Voltage: 1500VDC, optional 3000VDC
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.52 x 0.335 x 0.285 inches (13.2 x 8.5 x 7.25 mm)
- Efficiency: 74% to 85% depending on model
- Short Circuit Protection: Continuous with auto recovery
- Isolation Resistance: Tested at 500VDC
- Certifications: UL62368-1, CE, UKCA
- Construction: Black flame-retardant UL94V-0 plastic case, phosphor bronze pins coated with solder
- Environmental: Natural convection cooling, non-condensing humidity
Buy the XP Power IESO1 – Reliable DC-DC Isolated Power Supplies for Industrial Applications
Order the XP Power IESO1 series today for a dependable and efficient power solution designed for industrial digital, analog, and relay circuits. With high isolation voltage up to 3kVDC, compact SMD design, and UL safety approval, these modules are perfect for distributed systems requiring reliable voltage isolation. The series offers models with various output voltages and currents, operating from -40°C to +105°C, ensuring excellent performance in harsh environments. Purchase online now for quick delivery and seamless integration into your electronics projects.
Get XP Power IESO1 today—built for precision and long-lasting durability in distributed power systems.
Frequently Asked Questions
Where can I buy XP POWER IES0105S03?
You can click on the BUY or RFQ button to purchase IES0105S03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0105S03?
You can download the IES0105S03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0105S03?
XP POWER
