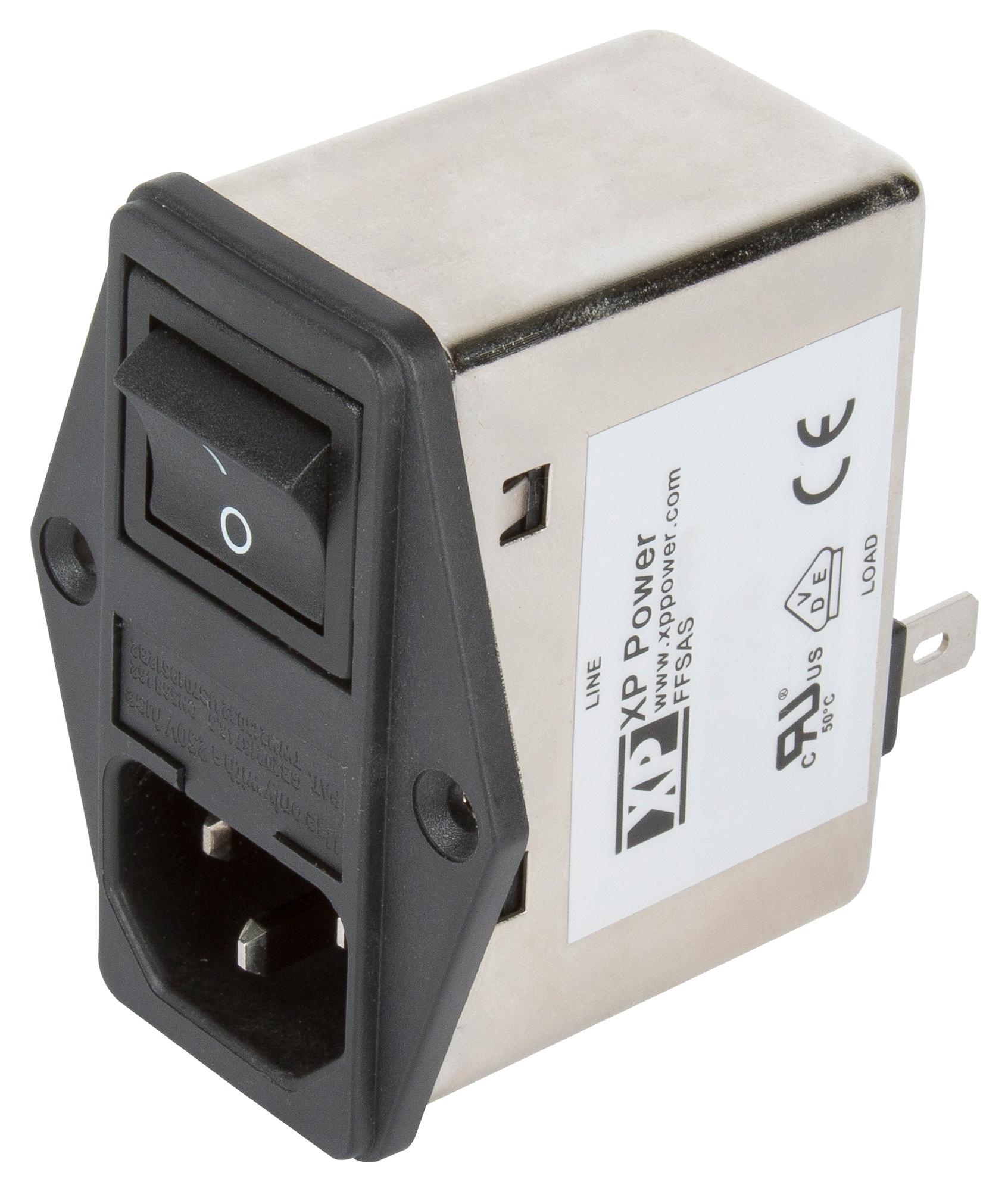

XP POWER FFSAS04BFR Datasheet & Stock

Combining a double pole switch, front accessible (when the mains connector is disconnected) single fuse and a filtered IEC320-C14 inlet in a compact single housing, the FFSA is designed for ITE applications. When fitted to mains powered equipment, they provide excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply. Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected. Safety approvals are EN60939-2 for passive filters & ANSI/UL1283 for EMI filters. They feature a wide operating temperature range of -40°C to +110°C with full power operation up to +50°C.




IEC320-C14 Filtered inlet

Single Fuse

Input Switch

Screw Mount

Compact Design

ITE Applications

1A, 2A, 4A, 6A & 10A Rating

6.3 x 0.8mm Faston Terminals

Bleed Resistor

Shielded Metal Body
