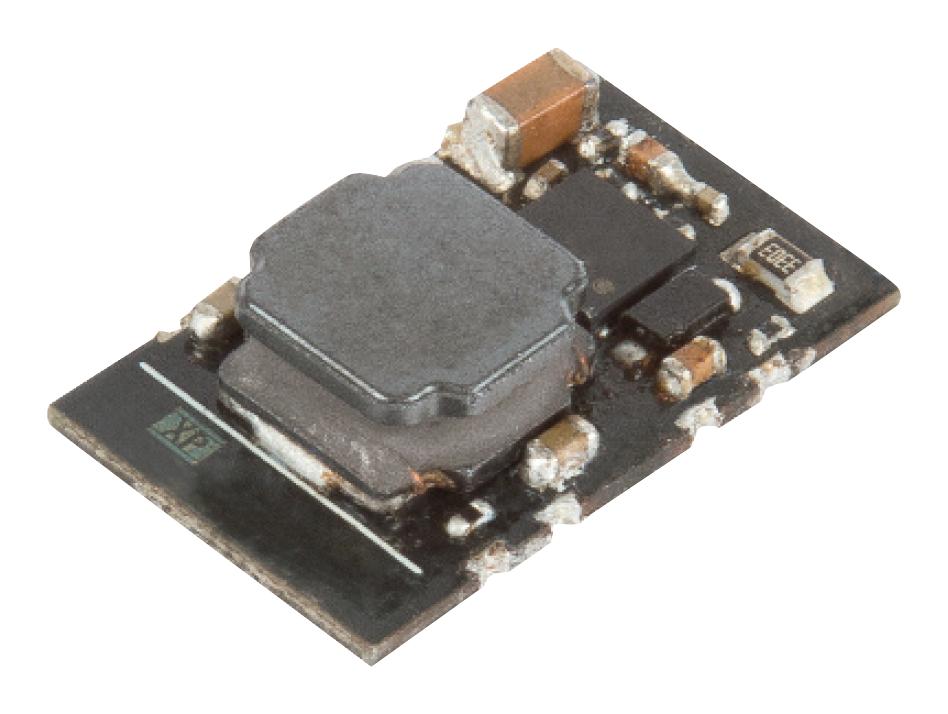

XP POWER STH0548S6V5 DC-DC Buck Regulator
The STH05 series is a low-cost DC to DC buck regulator module in a surface-mount SMD-10 package. Designed using surface-mount technology with high levels of automation, this series offers features such as adjustable output voltage with ±10% trimming, remote on/off control, continuous short circuit protection, and high efficiency. It supports a wide input voltage range, is non-isolated, requires no heatsink, and can operate at full load up to +60°C. The compact dimensions are 19.5mm by 11.8mm by 5.0mm.
XP POWER STH0548S6V5 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 9-72VDC
- Output Voltage: 3.3V to 15VDC (adjustable ±10%)
- Output Current: Up to 404 mA at 15V
- Efficiency: Up to 92%
- Operating Temperature: -40°C to +105°C
- Full Load Operating Temperature: up to +60°C
- Package: SMD-10 surface-mount package
- Dimensions: 19.5mm x 11.8mm x 5.0mm
- Isolation: No isolation
- Ripple & Noise: 7 mV p-p
- Short Circuit Protection: Continuous, auto-recovery
- Switching Frequency: 150-550 kHz
- Remote On/Off: Yes
- Weight: approximately 1.4 g
- Certifications: Meets industrial standards, RoHS compliant
- Construction: Copper PCB pads, lead-free HASL solder coating
- Temperature Coefficient: Not specified
- Input Surge Voltage: 75VDC for 100 ms
Buy the XP Power STH0548S6V5 – Reliable DC-DC Buck Regulator for Industrial Applications
Order the XP Power STH0548S6V5 DC-DC buck regulator online today to ensure your industrial projects benefit from high efficiency, adjustable output, and robust protection features. This compact surface-mount module is perfect for space-constrained applications, offering a wide input voltage range, low ripple, and reliable short circuit protection. With a simple installation process and excellent durability, purchasing online guarantees quick delivery, technical support, and competitive pricing for your power supply needs.
Buy XP Power STH0548S6V5 now and experience unmatched reliability and performance in industrial power management.
Frequently Asked Questions
Where can I buy XP POWER STH0548S6V5?
You can click on the BUY or RFQ button to purchase STH0548S6V5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STH0548S6V5?
You can download the STH0548S6V5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STH0548S6V5?
XP POWER
