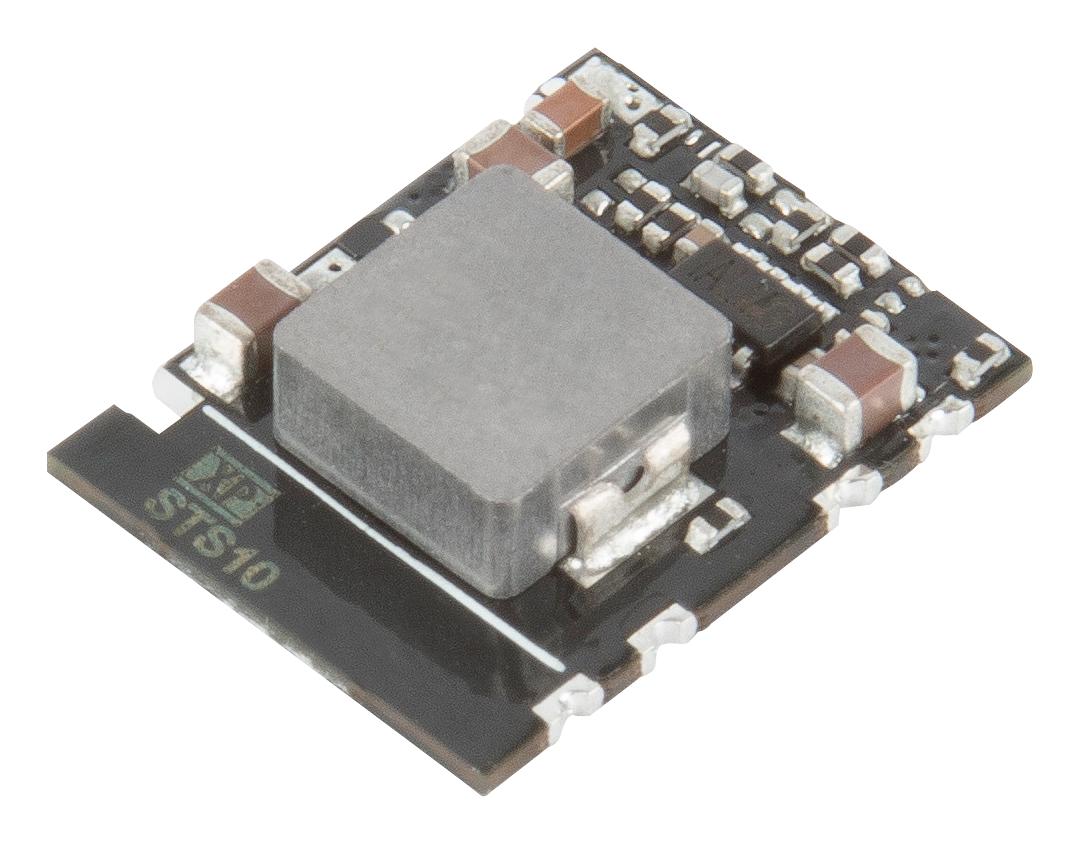

XP POWER STS1024S1V8 DC-DC Buck Regulator
The STS1024S1V8 is a low-cost, high-efficiency DC-DC buck regulator designed for versatile power applications. Based on SMD technology with compact dimensions of 0.60 x 0.47 x 0.15 inches, it offers adjustable output voltages from 1.2V to 15V, with output voltage trimming, remote on/off control, and built-in short circuit protection. Operating efficiently up to 96% with an input voltage range of 4.6 to 36V, the regulator features a wide operating temperature from -40°C to +105°C, making it suitable for various industrial and electronic systems requiring stable and reliable power regulation.
XP POWER STS1024S1V8 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 4.6 to 36 V
- Output Voltage: 1.2V to 15V adjustable
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +105°C
- Dimensions: 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Remote On/Off: Yes
- Short Circuit Protection: Yes, with auto recovery
- Full Load Temperature: Up to +65°C
- MTBF: Over 4.6 million hours
- Package Type: SMD-10
- Ripple & Noise (20MHz bandwidth): ~50 mV pkpk
- Isolation: No isolation
- Switching Frequency: 2.044 MHz
- Operating Humidity: 95% RH non-condensing
- Weight: Approximately 1.4 grams
- Temperature Coefficient: 0.02 °C
Buy the Buy XP Power DC-DC Buck Regulator Part Number STS1024S1V8 Online
Purchase the XP Power STS1024S1V8 DC-DC buck regulator online today for a compact, high-efficiency power solution. Featuring adjustable output voltage from 1.2V to 15V, remote on/off control, and robust short circuit protection, this regulator is perfect for industrial, medical, and electronic applications requiring stable and reliable power. Its operating efficiency reaches up to 96%, ensuring minimal power loss even under full load conditions. Designed with SMD technology, it offers easy integration into space-constrained systems, backed by a 3-year warranty for long-term durability and performance.
Get XP Power STS1024S1V8 today—built for precision, high efficiency, and reliable power regulation for your electronic projects.
Frequently Asked Questions
Where can I buy XP POWER STS1024S1V8?
You can click on the BUY or RFQ button to purchase STS1024S1V8 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1024S1V8?
You can download the STS1024S1V8 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1024S1V8?
XP POWER
