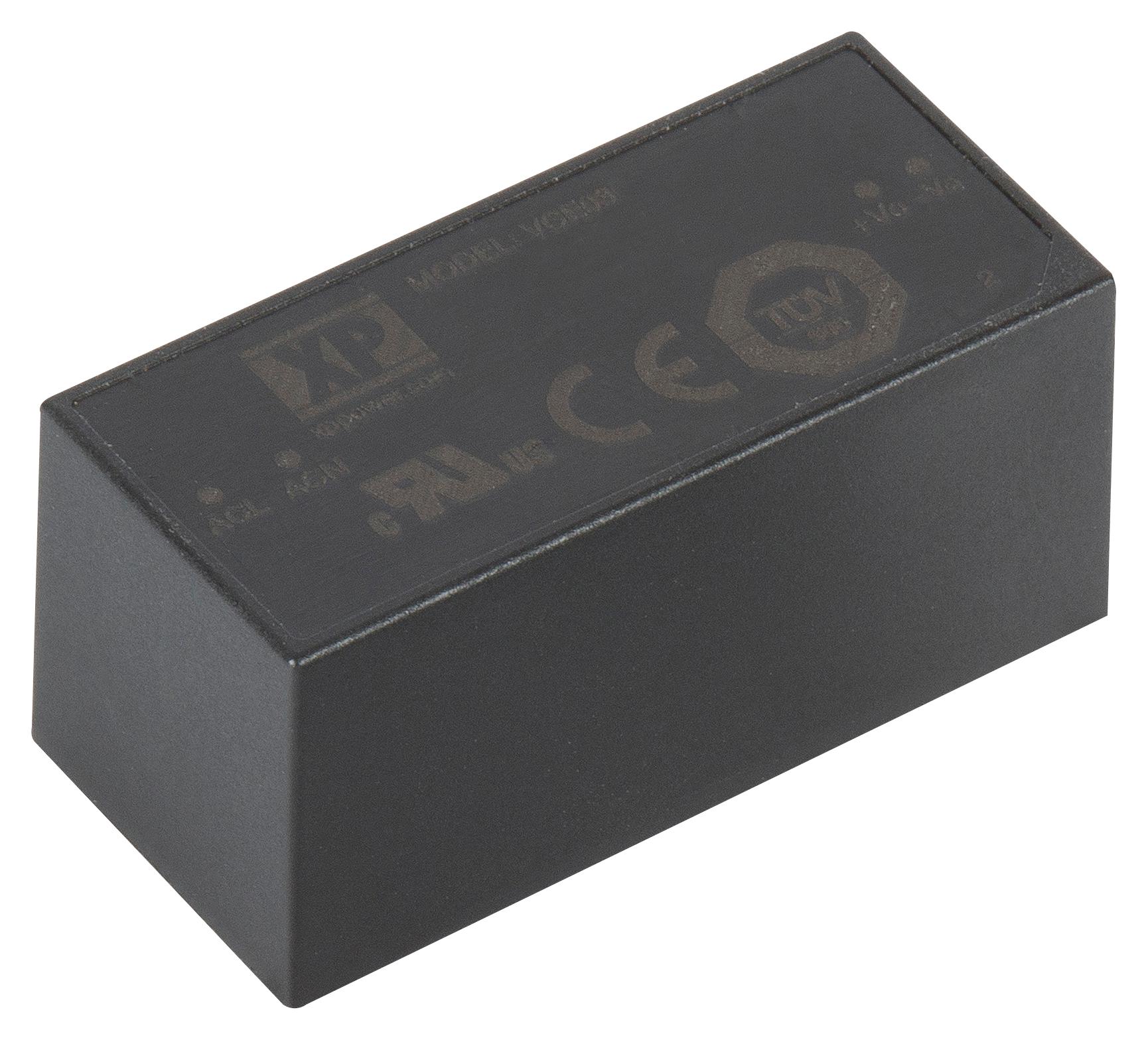

XP POWER VCE03US12 Power Supply
The VCE03US12 from XP Power is a compact, open-frame AC to DC power supply in a slim SIL package. It provides a 12V, 3W output with a maximum current of 250mA, suitable for low-cost industrial, domestic, and ITE applications. This power supply is designed to meet worldwide safety standards, including IEC and UL certifications, with compliance to class B emissions. It features overvoltage, overload, and short circuit protections, operating efficiently at 80% with a no-load power consumption of 0.3W. The operating temperature range is from -25°C to 70°C. Its dimensions are 41.9mm x 19.05mm x 19.05mm, making it ideal for space-constrained applications.
XP POWER VCE03US12 Power Supply Specifications:
- Input Voltage Range: 85 to 305VAC
- Output Voltage: 12.0VDC
- Output Current: 250mA
- Output Power: 3W
- Dimensions: 41.9mm x 19.05mm x 19.05mm
- Operating Temperature: -25°C to +70°C
- Efficiency: 80%
- No Load Power: <0.3W
- Certifications: IEC, UL, EN safety standards
- Protection: Overvoltage, Overload, Short Circuit
- EMC Compliance: Class B emissions
- Input Frequency: 47-63Hz
- Ripple & Noise: 180mVp-p
- Isolation: 3000VAC
- Protections: Overvoltage (15-140%Vnom), Overload (130-170%), Short Circuit
- Weight (Encapsulated): 30g
Buy the XP Power Series VCEO3 12V Power Supply: VCE03US12
Enhance your project with the XP Power VCE03US12, a compact AC-DC power supply designed for space-saving installation in industrial, home automation, and electronic applications. Meeting international safety standards and EMC regulations, it offers reliable performance with overvoltage and short circuit protections. Its efficient operation at 80% and low no-load power make it ideal for energy-conscious designs. Easily integrated into various products, this 12V, 3W supply ensures steady power delivery and durability in harsh environments, backed by a 3-year warranty for peace of mind.
Buy XP Power VCE03US12 now and experience unmatched reliability and performance in space-constrained industrial and household applications.
Frequently Asked Questions
Where can I buy XP POWER VCE03US12?
You can click on the BUY or RFQ button to purchase VCE03US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE03US12?
You can download the VCE03US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE03US12?
XP POWER
