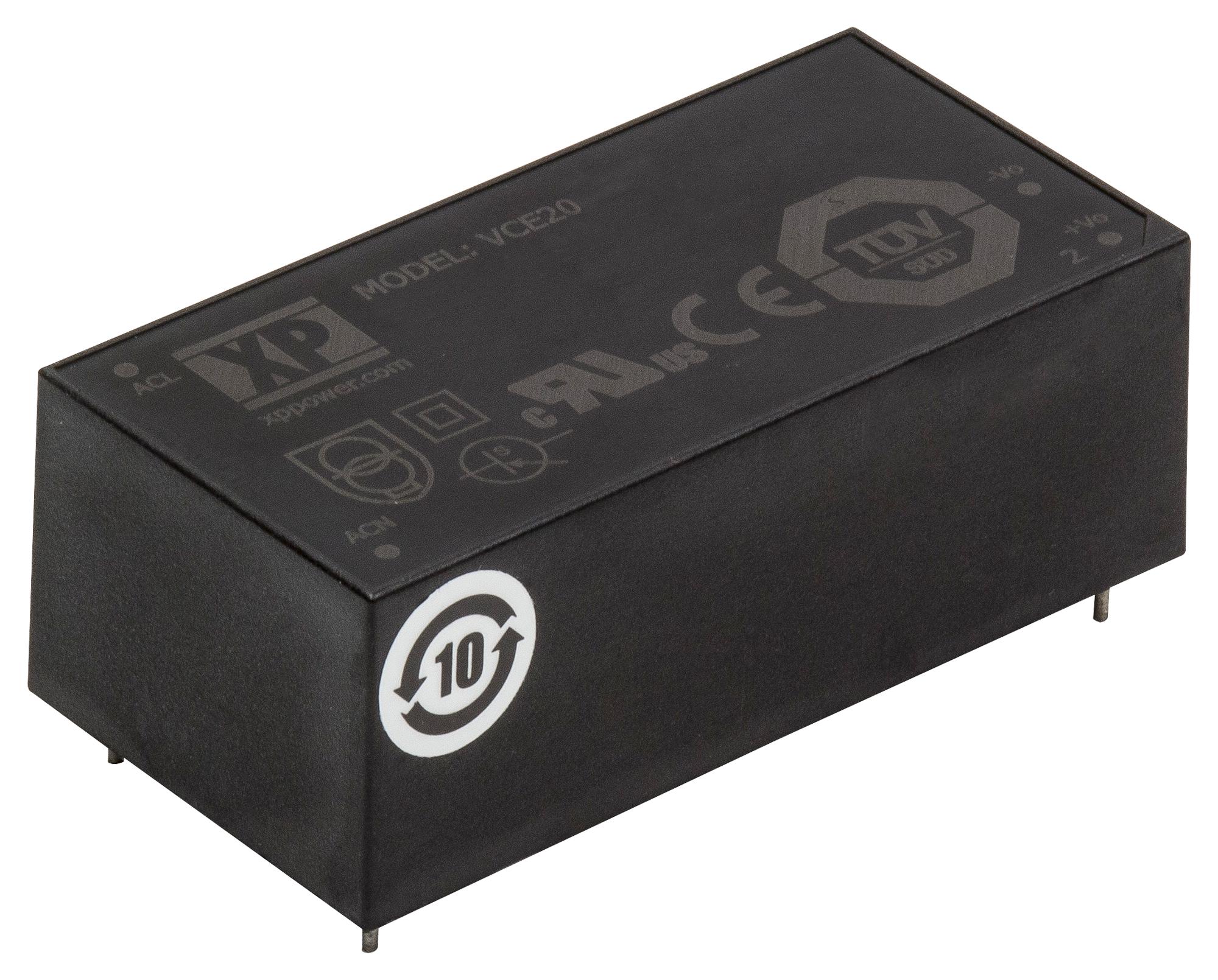

XP POWER VCE20US09 AC-DC Power Supply
The VCE20 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for low-cost industrial, ITE, and domestic applications. They are available with open frame or PCB mount options and support input voltages from 85 to 305VAC. The series provides outputs ranging from 3.3V to 48VDC. These power supplies meet worldwide safety standards, including ITE and household certifications, and comply with class B emissions for conducted and radiated interference. They are class II isolation types and adhere to the EN55035 immunity standard, making them easy to integrate into various systems.
XP POWER VCE20US09 AC-DC Power Supply Specifications:
- Input Voltage Range: 85 to 305 VAC
- Output Voltage Range: 3.3V to 48VDC
- Output Power: 20W per model
- Efficiency: 85%
- Isolation Voltage: 3000 VAC
- Temperature Range: -25°C to +70°C
- Cooling Method: Convection-cooled
- Dimensions: VCE20 - 2.60 x 1.30 x 0.92 inches (66.0 x 33.0 x 23.4 mm); VCE20-P - 2.50 x 1.20 x 0.86 inches (63.5 x 30.5 x 21.8 mm)
- Weight: VCE20 - 0.198 lbs (90 g); VCE20-P - 0.088 lbs (40 g)
- Certifications: IEC62368-1, IEC60335-1, UL62368-1, EN62368-1
- EMC Standards: EN55035 Immunity, Class B conducted and radiated emissions
- Operating Temperature: -25°C to +70°C
- Switching Frequency: 5 to 65 kHz
Buy the XP Power Series VCE20 AC-DC Power Supply: VCE20US09
Purchase the XP Power Series VCE20US09 AC-DC power supply online now and enjoy fast delivery and trusted quality. Designed for efficient performance, it supports input voltages from 85 to 305VAC and offers a 20W output with 85% efficiency. Its compact size and convection cooling make it suitable for various industrial, household, and instrumentation applications. With certifications for safety and EMC standards, this power supply guarantees reliable operation across a wide temperature range. Order today to enhance your system’s efficiency and safety with ease.
Order your XP Power Series VCE20US09 low-cost AC-DC power supply today and ensure reliable performance for your industrial and domestic projects.
Frequently Asked Questions
Where can I buy XP POWER VCE20US09?
You can click on the BUY or RFQ button to purchase VCE20US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US09?
You can download the VCE20US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US09?
XP POWER
