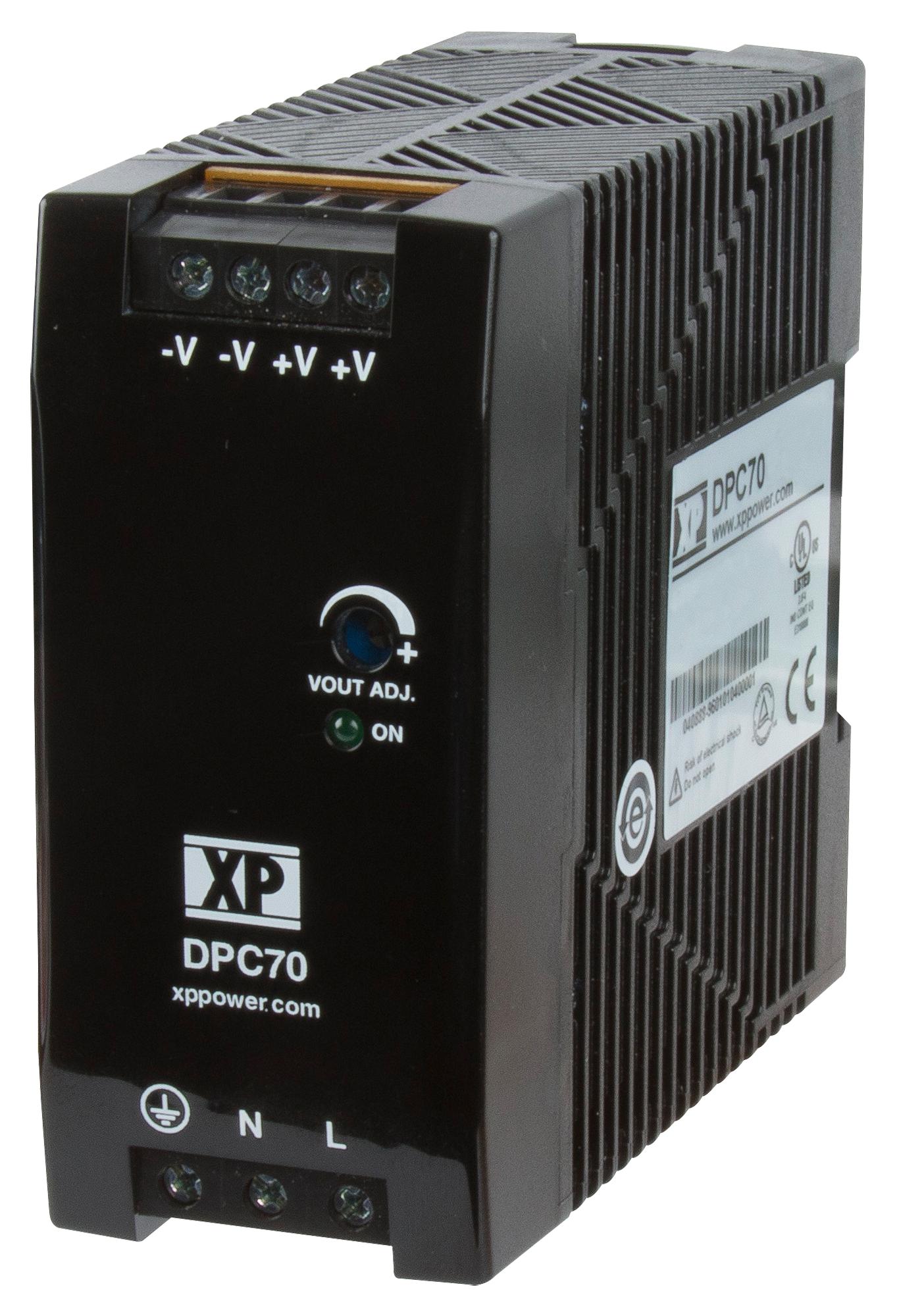

XP POWER DPC70US48 industrial power supply
The DPC70 series is an ultra-slim, DIN rail mounted AC to DC power supply with a universal input voltage range of 85VAC to 264VAC, eliminating the need for input selector switches. It complies with safety standards EN/IEC 60950-1 and EMC standards EN55032 for Class B emissions, as well as UL508 for industrial control equipment. Designed for industrial applications, it is suitable for factory automation, process control, and various other industrial environments. The power supply features a high-efficiency design, operates reliably across a wide temperature range from -25°C to 70°C, and offers adjustable output voltages from 12V to 48V with less than 0.5W no-load power consumption.
XP POWER DPC70US48 industrial power supply Specifications:
- Input Voltage: 85-264 VAC, 50/60 Hz
- Output Voltage: 12V, 24V, 48V with adjustable range 11.4-15.6V, 22.5-28.5V, 47-52.8V
- Output Power: 66W (12V), 72W (24V, 48V)
- Output Current: 55A at 12V, 3.0A at 24V, 15A at 48V
- Efficiency: up to 89%
- Dimensions: 3.94 x 1.59 x 3.94 inches (100.0 x 40.5 x 100.0 mm)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Cooling Method: Natural convection
- Protection: Overload, overvoltage, short circuit
- Linear regulation: ±1% line, ±1% load
- Ripple & Noise: 100 mV pk-pk
- Isolation: Input to output 3000 VAC, input to ground 1500 VAC, output to ground 500 VAC.
- Standards: UL508, EN60950-1, EN55032 Class B
Buy the XP Power Series DPC70 AC-DC Power Supply: DPC70US48
Experience high-quality, reliable industrial power conversion with the XP Power DPC70 series. These ultra-slim, DIN rail mounted units deliver adjustable 12V to 48V output, ensuring efficient power management for factory automation and process control. With universal input, low no-load power, and operation across a wide temperature range from -25°C to 70°C, they meet stringent safety and EMC standards. Designed for ease of installation and durability, these power supplies reduce downtime and improve system reliability—perfect for demanding industrial environments.
Buy XP Power DPC70US48 ultra-slim industrial power supply now and experience unmatched reliability and performance in factory automation.
Frequently Asked Questions
Where can I buy XP POWER DPC70US48?
You can click on the BUY or RFQ button to purchase DPC70US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DPC70US48?
You can download the DPC70US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DPC70US48?
XP POWER
