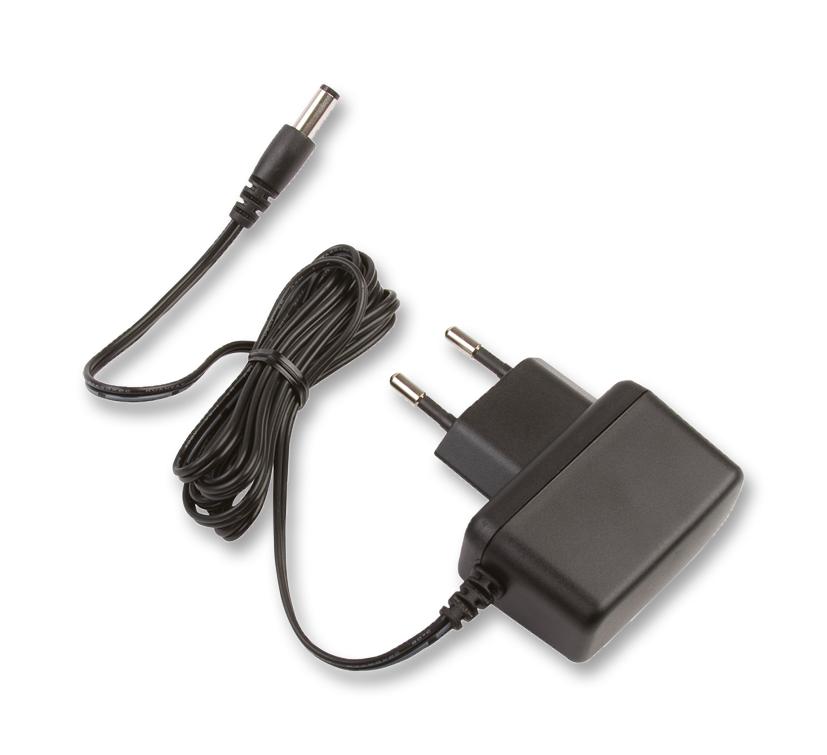

XP POWER VEL18US120EUJA Power Supply Module
The VEL18 series AC-DC power supplies by XP Power provide efficient 18W energy-efficient solutions for industrial and electronic applications. These supplies feature universal input voltage (90-264 VAC), multiple output voltages ranging from 9V to 24V, and are designed for high active mode efficiency with very low no-load power consumption. Suitable for cost-sensitive applications, they offer robust safety, compliance with energy standards, and reliable performance with features like short circuit protection, overvoltage, and overcurrent safeguards. Compact and lightweight, these modules support diverse environments, including industrial automation, instrumentation, and LED lighting systems.
XP POWER VEL18US120EUJA Power Supply Module Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.3 A at 100 VAC
- Inrush Current: 60 A at cold start, 25°C
- Power Factor: Class A
- No Load Power: 75 mW
- Output Voltages: 9V, 12V, 15V, 18V, 24V
- Output Current: up to 2000 mA
- Total Regulation: 5%
- Start Up Delay: 4 seconds
- Efficiency: 85% at full load
- Isolation: 3000 VAC input to output
- Switching Frequency: 24.7 kHz
- Operating Temperature: 0°C to +60°C
- Operating Humidity: 3-95% RH
- Cooling: Natural convection
- Certifications: UL, TUV, IEC, CE, CB
- Safety: Limited Power Source (LPS), IEC 60950-1
- Dimensions (EU version): 3.54 x 1.34 x 2.26 inches
- Weight: Approximately 0.19 lb
Buy the XP Power VEL18 – Reliable Power Supply for Industrial Applications
Purchase the XP Power VEL18 series power supply now to ensure reliable performance in your industrial, automation, or electronic projects. These compact, efficient modules feature universal input voltage from 90 to 264 VAC, providing a variety of output voltages from 9V to 24V. With a high efficiency rating of 85%, low no-load power consumption, and comprehensive safety features like short circuit, overvoltage, and overcurrent protection, this power supply is ideal for cost-sensitive and demanding applications. Order online today to benefit from fast delivery and industry-leading support.
Get XP Power VEL18 series power supply today—built for precision, efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy XP POWER VEL18US120EUJA?
You can click on the BUY or RFQ button to purchase VEL18US120EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US120EUJA?
You can download the VEL18US120EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US120EUJA?
XP POWER
