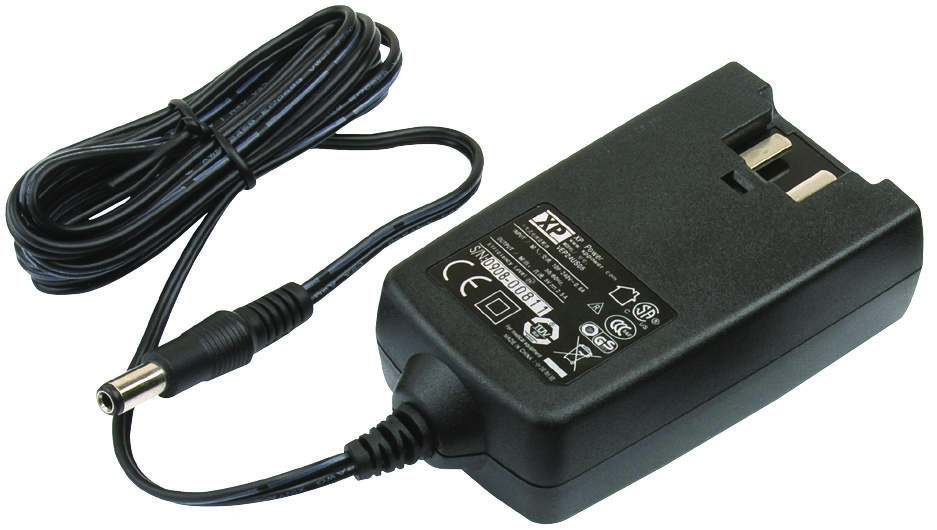

XP POWER VEP24US12 Medical IT Power Supply
This versatile power supply is designed for medical and IT applications, adhering to safety standards like CEC 2008 and EISA 2007. It offers interchangeable input connectors, ensuring flexible setup options. Constructed with Class II safety features, it provides reliable output via a 2.5mm plug, suitable for various electronic devices. Rated at 24 W with an output voltage of 15.0V and current of 1.6A, it features high efficiency at 80%, excellent transient response, low ripple, and comprehensive EMC and safety certifications. Ideal for demanding environments requiring consistent, safe power delivery.
XP POWER VEP24US12 Medical IT Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Output Voltage: 15.0V
- Output Current: 1.6A
- Power: 24 W
- Efficiency: 80%
- Frequency Range: 47-63 Hz
- Isolation: 3000 VAC Input to Output
- Switching Frequency: 65 kHz typical
- MTBF: 200,000 hours at 25°C
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -25°C to +70°C
- Dimensions: 2.09 inches (53 mm) x 1.89 inches (48 mm) x 1.06 inches (27 mm)
- Weight: 0.35 lbs (160 g)
- Construction: PC Class 94V-0
- Output Lead: UL2468 18-24 AWG
- Mains Plug: Options include UK, EU, CN, US, AU (optional suffixes)
- Certifications: EN60950-1, UL60950-1, IEC60950-1, CSA C22.2
- Protection: Overcurrent, Overvoltage, Short circuit
- Compliance: CEC2008 & EISA 2007, Energy Level V
Buy the Buy Power Supply Power Supply Part Number VEP24US12 Online
Purchase the VEP24US12 power supply online for your medical and IT devices. Enjoy high efficiency at 80%, safety standards compliance, and reliable power output of 15V at 1.6A. Its interchangeable input connectors and Class II construction ensure versatility and safety in critical environments. Perfect for sensitive electronics requiring consistent, stable power, the supply features low ripple, excellent transient response, and protection against overcurrent and overvoltage. Order now for fast delivery and peace of mind in your power solutions.
Get Power Supply VEP24US12 today—built for demanding medical and IT applications with reliable and efficient power delivery.
Frequently Asked Questions
Where can I buy XP POWER VEP24US12?
You can click on the BUY or RFQ button to purchase VEP24US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEP24US12?
You can download the VEP24US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEP24US12?
XP POWER
