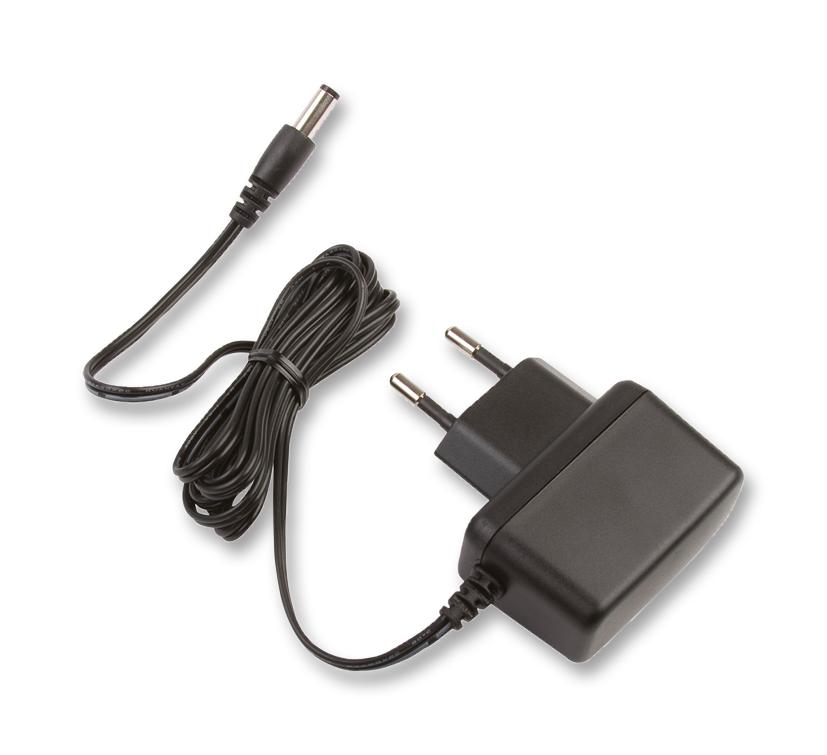

XP POWER VEL18US150EUJA Wall Plug Power Supply
The VEL18 series are compact AC-DC power supplies designed for low power applications, offering high efficiency and ultra-low no load power consumption. They feature universal input voltage (90-264 VAC), multiple output voltages from 9V to 24V, and low ripple/noise performance. These wall plug adaptors come with fixed mains connectors suitable for various international voltage standards, ensuring reliable power delivery for industrial, medical, or consumer electronics. Their compact form factor, certified safety, and high efficiency make them ideal for cost-sensitive, space-constrained environments.
XP POWER VEL18US150EUJA Wall Plug Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.6 A at 230 VAC
- Inrush Current: 60 A at 25°C cold start
- Efficiency: 85% at 25°C, 50% load, 115 VAC
- Isolation: 3000 VAC input to output
- Output Voltages: from 9 V to 24 V (models include 9V, 12V, 15V, 18V, 24V)
- Output Current: up to 2000 mA depending on model
- Total Regulation: 5%
- Ripple & Noise: within specified limits for each output
- Start Up Delay: 4 seconds
- Hold Up Time: 8 ms at full load, 100 VAC
- Switching Frequency: 24-70 kHz
- Operating Temperature: 0°C to +60°C
- Dimensions: 90 mm x 34 mm x 47.5-57.57 mm depending on model
- Weight: approximately 65 grams
- Safety Certifications: UL, EN60950-1, CB, CCC, AUINZ
- Protection: Short circuit, overcurrent, and overvoltage protections
- Cooling: Natural convection
- Operating Humidity: 3% to 95% RH, non-condensing
- Compliance: EN55032, EN61000-3-2, EN61000-4 series
Buy the XP Power VEL18 – Reliable AC-DC Power Supplies for Industrial Applications
Purchase the XP Power VEL18 series wall plug power supplies online today and enjoy high efficiency, low power consumption, and reliable performance across various industrial and electronic applications. Featuring universal input voltage, multiple output options, and comprehensive safety certifications, these compact power units are ideal for cost-sensitive environments requiring stable power. With fast start-up, excellent regulation, and built-in protections, they ensure your devices operate smoothly and safely. Buy now to benefit from quick delivery and industry-leading quality support.
Buy XP Power VEL18 series power supplies now and ensure reliable, efficient power delivery with certified safety and low electromagnetic interference.
Frequently Asked Questions
Where can I buy XP POWER VEL18US150EUJA?
You can click on the BUY or RFQ button to purchase VEL18US150EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US150EUJA?
You can download the VEL18US150EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US150EUJA?
XP POWER
