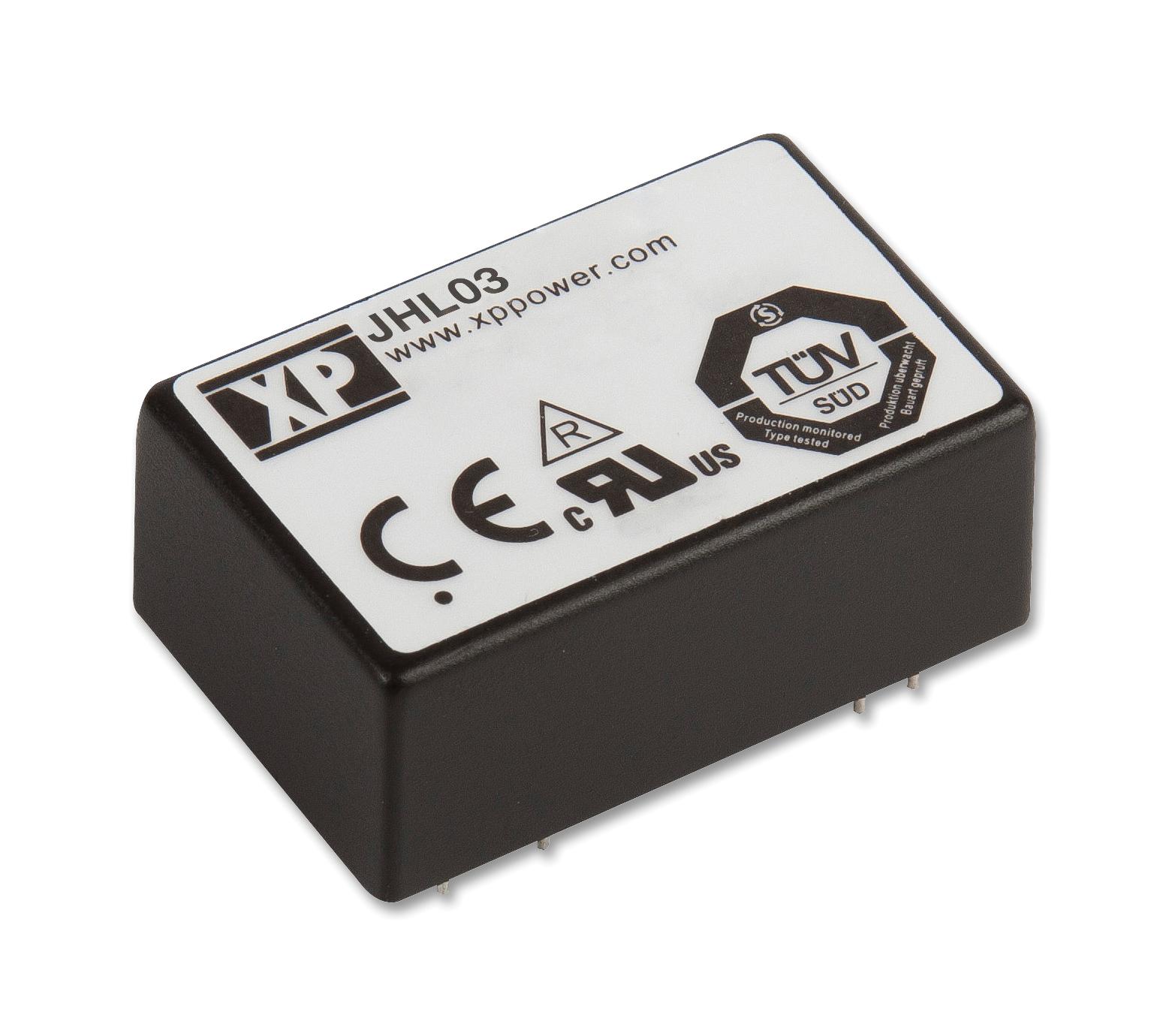

XP POWER JHL0312S05 Medical Power Converter
The JHLO3 Series DC-DC Converter by XP Power delivers 3 Watts of reliable power with reinforced 4000 VAC insulation meeting IEC60601-1 standards. Its compact 1.25 x 0.80 x 0.40-inch DIP24 package makes it suitable for medical and industrial applications requiring high isolation and low leakage current. It features input voltages from 7V to 30V, with multiple output options including 5V, 12V, 15V, 20V, and 21V. The converter offers efficiencies up to 82%, low no-load power consumption, and robust protection features such as short circuit, overload, and overvoltage protections, ensuring durability and safety.
XP POWER JHL0312S05 Medical Power Converter Specifications:
- Input Voltage Range: 7 V to 30 V DC
- Output Voltages: 5 V, 12 V, 15 V, 20 V, 21 V
- Output Power: 3 Watts
- Insulation: Reinforced 4000 VAC, Meets IEC60601-1 standards
- Isolation: 2 MOPP at 250 VAC
- Leakage Current: 2 pA
- Efficiency: 74% to 82%
- Dimensions: 1.25 x 0.80 x 0.40 inches (31.15 x 20.32 x 10.20 mm)
- Operating Temperature: -20°C to +48°C
- Storage Temperature: -40°C to +100°C
- Weight: 0.04 lbs (20 g)
- Protection: Short circuit, overload, overvoltage, surge
- Compliance: UL, CSA, IEC60601-1, EN61000-4, Level A emissions
Buy the XP Power Series DC-DC Converter: JHL0312S05
Purchase the XP Power JHL0312S05 DC-DC converter online today and ensure your medical or industrial device benefits from high isolation, compact design, and proven safety standards. This 3-watt power module offers excellent efficiency, low leakage current, and robust protection features, making it ideal for demanding applications. With fast delivery and easy ordering, upgrading your system's power supply has never been simpler. Invest in trusted quality and keep your equipment safe, efficient, and compliant with industry standards. Order now to enhance your project’s reliability!
Buy XP Power JHL0312S05 now and experience unmatched reliability and medical-grade insulation for your sensitive electronics.
Frequently Asked Questions
Where can I buy XP POWER JHL0312S05?
You can click on the BUY or RFQ button to purchase JHL0312S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHL0312S05?
You can download the JHL0312S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHL0312S05?
XP POWER
