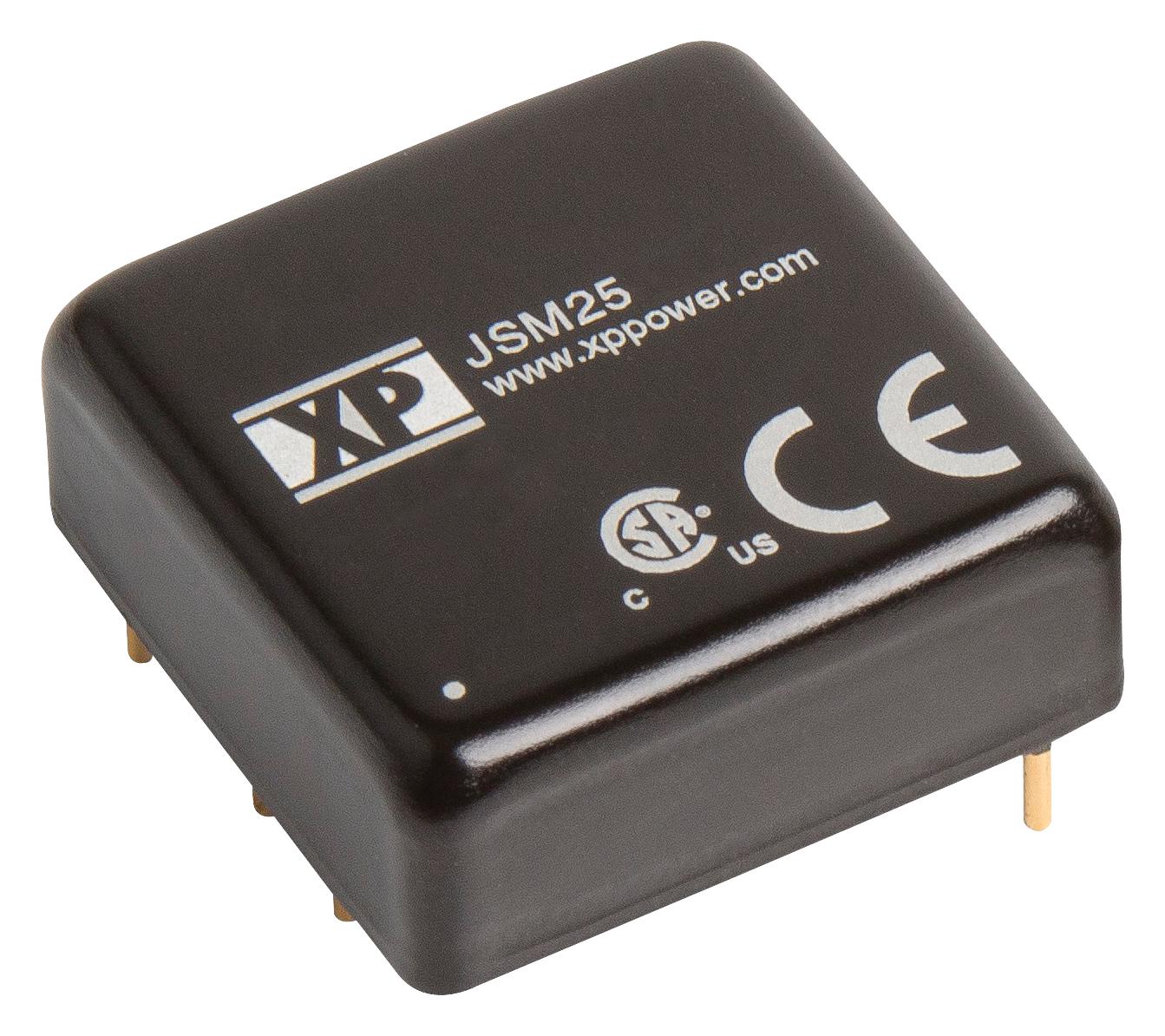

XP POWER JSM2512S12 DC-DC Converter
The JSM25 series provides a regulated power output of 25 Watts with a 2:1 input voltage range, suitable for nominal inputs of 12VDC (9V to 18V), 24VDC (18V to 36V), and 48VDC (36V to 75V). The units are housed in a compact 1 x 1 x 0.4-inch (25.4 x 25.4 x 10.16 mm) six-sided metal case with pins for easy PCB mounting. Features include high power density, 1500VDC isolation, remote on/off control, and operation over a temperature range of -40°C to 105°C. The series is approved according to ITE safety standards and suitable for power management and DC conversion applications.
XP POWER JSM2512S12 DC-DC Converter Specifications:
- Power Output: 25 Watts
- Input Voltage Range: 9V-18V, 18V-36V, 36V-75V (2:1 range)
- Output Voltage: Nominal 12V, 24V, 48V with trim options
- Efficiency: Approximately 89%
- Isolation Voltage: 1500VDC
- Operating Temperature Range: -40°C to +105°C
- Case Dimensions: 1 x 1 x 0.4 inches (25.4 x 25.4 x 10.16 mm)
- Housing: Six-sided metal case
- Safety Approvals: ITE safety standards
- Features: High power density, remote ON/OFF, optional heatsink
- Protection: Overload with auto-recovery, short circuit
- Switching Frequency: 285 kHz
- Weight: Approx. 16.6 g
Buy the XP Power Series JSM25 DC-DC Converter: JSM2512S12
Enhance your power management with the JSM25 series DC-DC converter offering 25 Watts in a compact metal case, featuring high efficiency and 1500VDC isolation. Designed for industrial, automation, and electronics applications, it supports wide input voltages with a 2:1 range, ensuring dependable performance across temperatures from -40°C to 105°C. Its safety approvals, remote ON/OFF, and optional heatsink options allow seamless integration into various systems. Invest in reliable power conversion today and ensure your devices operate smoothly and efficiently.
Buy XP Power JSM2512S12 now and experience unmatched reliability and compact performance in power conversion applications.
Frequently Asked Questions
Where can I buy XP POWER JSM2512S12?
You can click on the BUY or RFQ button to purchase JSM2512S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JSM2512S12?
You can download the JSM2512S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JSM2512S12?
XP POWER
