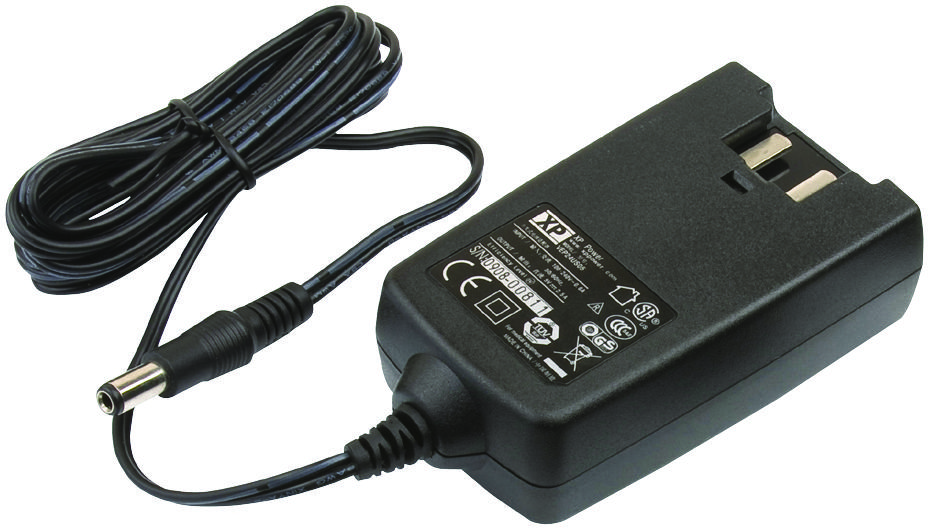

XP POWER VEP24US09 Medical Power Supply
This medical and IT-compatible power supply complies with third edition safety standards, including CEC 2008 and EISA 2007. It features interchangeable input connectors, a Class II construction for safety, and provides reliable output through a 2.5mm plug. Designed for medical and industrial applications, it offers efficient energy use, low power consumption, and broad input voltage compatibility from 80 to 264 VAC. The power supply supports multiple output voltages up to 24 V, with high efficiency and robust safety features suitable for sensitive electronic devices and professional environments.
XP POWER VEP24US09 Medical Power Supply Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 47-63Hz
- Output Voltage: Up to 24 V
- Output Power: 24 W
- Output Plug: 2.5 mm Inner Positive
- Efficiency: 80-86%
- Isolation: 4000 VAC Input to Output for 8-24 W models, 3000 VAC for 36 W
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -25°C to +70°C
- Cooling: Natural convection
- Dimensions: Approximate length 2.09 inches, width 0.95 inches, height 0.39 inches
- Weight: Approximately 0.26 lbs
- Material: PC Class 94V-0
- Output Lead: UL2468 18-24 AWG
- Safety Certifications: EN60950-1, cUL60950-1, IEC60950-1, CSA60950-01-03, IEC60601-1
- Environmental Compliance: Conforms to EMC standards, including EN55022
Buy the Buy Green Power Supply Part Number VEP24US09 Online
Purchase the Green Power Supply VEP24US09 online today for reliable, energy-efficient power delivery suitable for medical, industrial, and IT environments. This supply features interchangeable connectors, advanced safety certifications, and a compact design that fits easily into professional setups. Its high efficiency and broad input voltage range ensure consistent performance across various applications. Trust this power supply for long-lasting durability, regulatory compliance, and safe operation, making it an ideal choice for sensitive electronic devices requiring dependable power with minimal noise and maximum safety.
Get Green Power Supply VEP24US09 today—designed for medical and industrial precision with energy efficiency and safety features.
Frequently Asked Questions
Where can I buy XP POWER VEP24US09?
You can click on the BUY or RFQ button to purchase VEP24US09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEP24US09?
You can download the VEP24US09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEP24US09?
XP POWER
