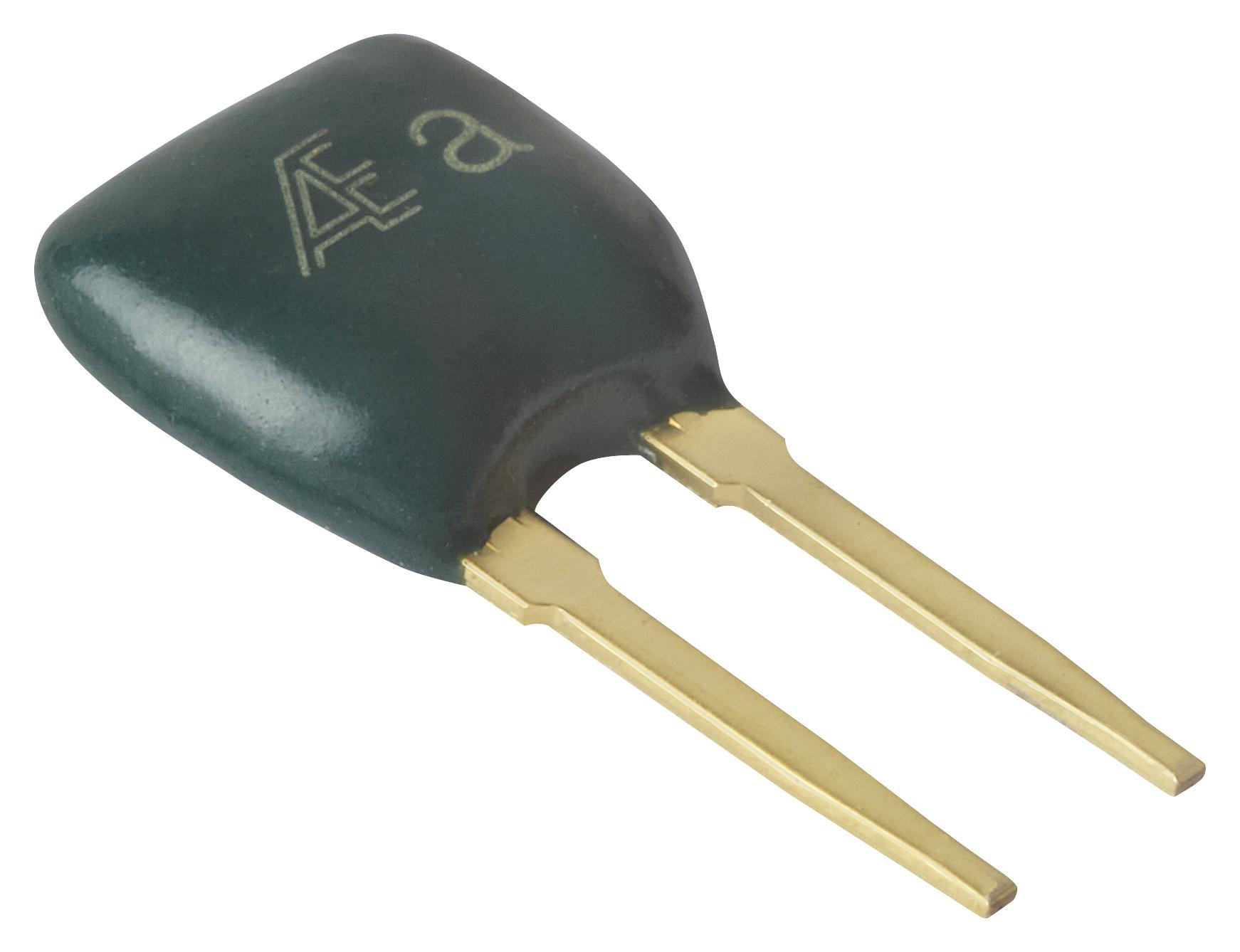

ALPHA ELECTRONICS TLAX5M0000A Precision Thin Film Resistor
The TLA and TLC series are precision thin film resistors that offer high accuracy and stability for industrial use. With resistance ranges from 100K to 10M ohms, and rated power from 0.125W to 0.25W, these resistors are RoHS compliant and suitable for high-temperature environments up to +155°C. They feature excellent temperature cycling, electrical stability, and resistance to solvents and soldering heat, making them ideal for precision measurement and circuit applications requiring reliable performance under demanding conditions.
ALPHA ELECTRONICS TLAX5M0000A Precision Thin Film Resistor Specifications:
- Resistance Range: 100K to 10M ohms
- Rated Power: 0.125W (TLA), 0.25W (TLC)
- Temperature Range: -25°C to +155°C
- Maximum Operating Voltage: TLA = 250V, TLC = 300V
- Resistance Tolerance: ±1%, ±0.05%, ±0.1%
- Temperature Coefficient: +0.05 to +0.1 ppm/°C
- Frequency Response: Up to 10,000 kHz
- Solderability: Over 75% coverage at 235°C for 2 sec.
- Resistance to Solvents: No damage from isopropyl alcohol
- Resistance to Soldering Heat: 350°C for 3 sec.
- Moisture Resistance: 90-98% RH for 240 hours
- Life: 1,000 hours at rated load and temperature
- Storage Life: 10,000 hours at 15°C to 35°C
- Dielectric Withstanding Voltage: AC 300V, 1 min.
Buy the Alpha 5M0000A – Reliable Precision Thin Film Resistor for Industrial Applications
Purchase the Alpha precision thin film resistor today to ensure high accuracy and stability in your electronic and industrial applications. Featuring resistance ranges up to 10M ohms, rated power of 0.125W to 0.25W, and excellent resistance to temperature cycling, soldering heat, and moisture, this resistor guarantees reliable long-term performance. Ideal for measurement systems, industrial automation, and high-precision electronic circuits, it is RoHS compliant and designed for demanding environments. Optimize your designs with this durable, high-performance resistor available for quick online purchase.
Buy Alpha 5M0000A now and experience unmatched reliability and high performance in your electronic circuits.
Frequently Asked Questions
Where can I buy ALPHA ELECTRONICS TLAX5M0000A?
You can click on the BUY or RFQ button to purchase TLAX5M0000A from an authorized ALPHA ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part TLAX5M0000A?
You can download the TLAX5M0000A datasheet or visit the ALPHA ELECTRONICS website for support.
Who is the manufacturer of TLAX5M0000A?
ALPHA ELECTRONICS
