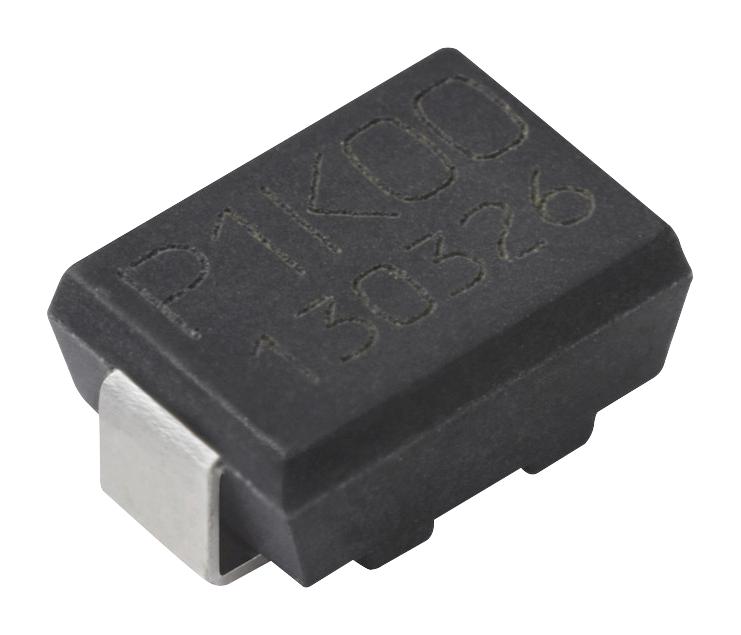

ALPHA ELECTRONICS MQP35K000A High-precision SMT resistor
The MQP series high-precision SMT resistors feature ultra-stable Z-Foil technology, providing exceptional resistance stability with a TCR of 0.05 ppm/°C and resistance tolerance as tight as ±0.01%. Operating at temperatures up to 125°C with a maximum power rating of 250 mW, these resistors are suitable for demanding electronic circuits requiring high accuracy and thermal stability. Designed with molded J-lead terminals, they offer excellent durability, low noise, and reliable performance across a wide temperature range, making them ideal for precision measurement and industrial applications.
ALPHA ELECTRONICS MQP35K000A High-precision SMT resistor Specifications:
- Tolerance: ±0.01%
- Resistance Range: 55°C to +125°C
- Maximum Operating Temperature: 125°C
- Working Temperature Range: 65°C to +175°C
- Maximum Working Voltage: 50V (MPP), 100V (MQP)
- Power Rating: 250 mW at +70°C
- Resistance Coefficient: 5 ppm/°C (self-heating), typical
- Resistance TCR: 0.05 ppm/°C (typical, 0°C to +60°C)
- Load Life Stability: within ±0.005% over 2000 hours at rated power
- Dielectric Withstanding Voltage: AC 200V for 1 minute
- Insulation Resistance: Over 10,000 MΩ at DC 100V
- Temperature Coefficient of Resistance: 0.2 ppm/°C (−55°C to +125°C)
- Soldering: Compatible with wave and reflow soldering methods
- Package: Molded, J-lead terminals, tape and reel packaging for automated assembly
Buy the Alpha Electronics Series MPP Resistor: MQP35K000A
Order the Alpha Electronics MQP series high-precision SMT resistor online today. With exceptional thermal stability, tight resistance tolerance, and robust build quality, this resistor ensures reliable operation in demanding applications. Perfect for precision measurement, industrial controls, and aerospace electronics, it offers easy integration with tape and reel packaging for automation. Take advantage of our quick shipping and expert support to get your project running smoothly with the proven performance of Alpha Electronics' advanced Z-Foil technology.
Buy Alpha Electronics MQP35K000A now and experience unmatched reliability and high-precision performance for your electronic projects.
Frequently Asked Questions
Where can I buy ALPHA ELECTRONICS MQP35K000A?
You can click on the BUY or RFQ button to purchase MQP35K000A from an authorized ALPHA ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part MQP35K000A?
You can download the MQP35K000A datasheet or visit the ALPHA ELECTRONICS website for support.
Who is the manufacturer of MQP35K000A?
ALPHA ELECTRONICS
