BROADCOM HLMPEG2HXZ0DD High Brightness LED
These high brightness AllnGaP LEDs deliver superior outdoor visibility with excellent readability in sunlight, making them ideal for traffic signals, pedestrian crossings, and outdoor advertising. Constructed with advanced optical epoxy resistant to high temperatures and moisture, they feature well-defined spatial radiation patterns at various viewing angles for precise directional lighting. Suitable for auto-insertion on PC boards, these LEDs operate up to +130°C junction temperature and are RoHS compliant. They are available in multiple models with different viewing angles, color variants, and package styles for versatile outdoor signaling applications.
BROADCOM HLMPEG2HXZ0DD High Brightness LED Specifications:
- Wavelength: Red 626 nm, Amber 590 nm
- Maximum Junction Temperature: +130°C
- Operating Temperature Range: -40°C to +100°C
- Forward Current: 50 mA (DC), 100 mA (Peak)
- Power Dissipation: 120 mW
- Reverse Voltage: Not specified
- Viewing Angles: 15°, 23°, 30°
- Package Height: 5 mm standard round
- Lead Material: Tin-plated mild steel
- Epoxy: Optical grade, UV resistant, high temp resistance
- RoHS 6 compliant
- Storage Temperature: -40°C to +100°C
- Dominant Wavelength: Red 626 nm, Amber 590 nm
- Luminous Intensity: 4200–21000 mcd (red), 9300–16000 mcd (amber)
- Maximum Brightness: Up to 21,000 mcd (red), up to 16,000 mcd (amber)

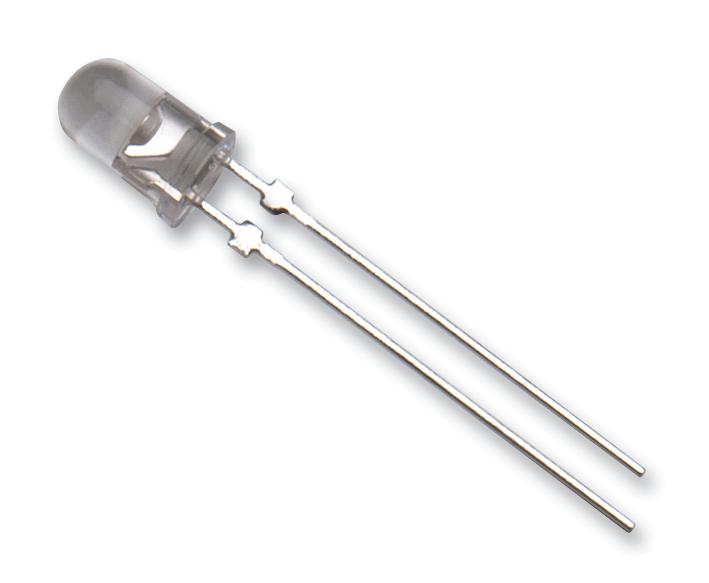

Buy the Avago Series High Brightness AllnGaP LED: HLMP-EG2H-XZ0DD
Purchase the Avago HLMP-EG2H-XZ0DD high brightness LED online today to enhance outdoor signage with sun-readable, moisture-resistant lighting. These LEDs are designed for optimal performance in extreme environmental conditions, providing excellent visibility for traffic signals, pedestrian crossings, and outdoor advertising. They feature a compact 5 mm round package, multiple viewing angles, and precise spatial radiation patterns. Engineered with advanced epoxy for high temperature and UV resistance, they ensure long-term durability in outdoor applications. Buy now for reliable, high-performance outdoor illumination solutions.
Get Avago HLMP-EG2H-XZ0DD today—built for outdoor visibility, high brightness, and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HLMPEG2HXZ0DD?
You can click on the BUY or RFQ button to purchase HLMPEG2HXZ0DD from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPEG2HXZ0DD?
You can download the HLMPEG2HXZ0DD datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPEG2HXZ0DD?
BROADCOM
