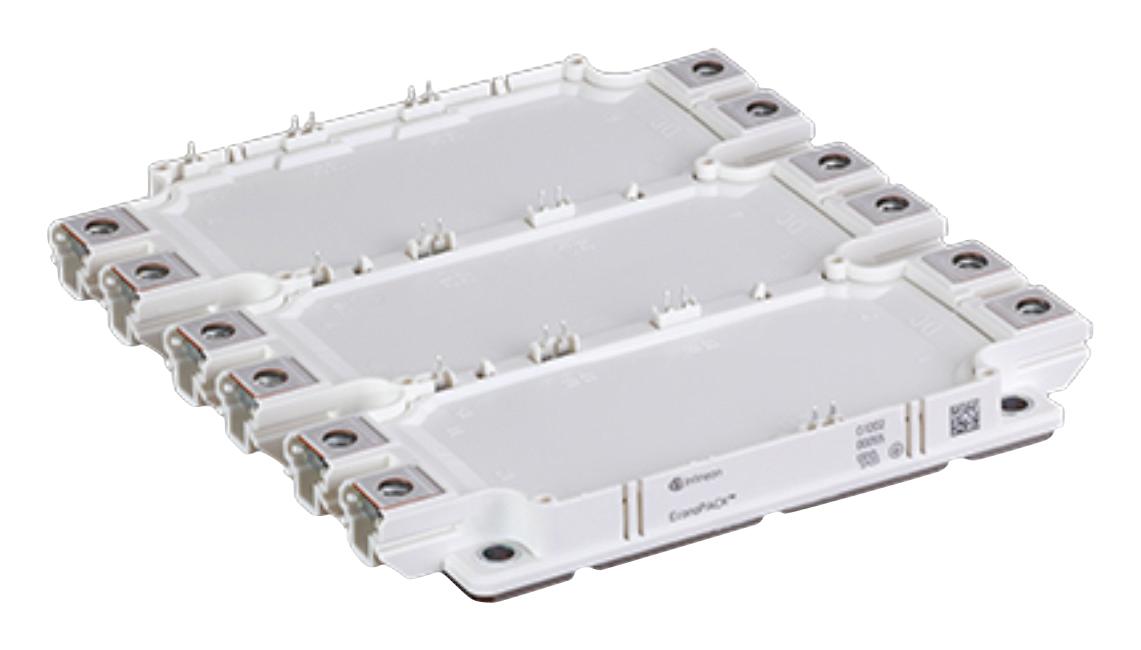

INFINEON FS450R12OE4BOSA1 High Power IGBT Module
The FS450R120E4 is a high-reliability IGBT module designed for high power inverter applications, including elevators, motor drives, solar systems, and UPS. It features Trench/Fieldstop technology, emitter-controlled HE diodes, PressFIT connections, and integrated NTC temperature sensors. Rated for 1200V Vees, 450A continuous collector current, and 900A peak, it offers high surge current capability, excellent short circuit robustness, and efficient thermal management with low thermal resistances. Certified RoHS compliant, this module ensures mechanical durability and optimal electrical performance in demanding environments.
INFINEON FS450R12OE4BOSA1 High Power IGBT Module Specifications:
- Collector-Emitter Voltage Vees: 1200 V
- Continuous DC Collector Current Ie: 660 A
- Peak Collector Current tp=1ms: 900 A
- Total Power Dissipation To: 175 W
- Gate-Emitter Peak Voltage Vos: +120 V
- Collector-Emitter Saturation Voltage Vce sat: 2.10 V max at 450 A
- Gate Threshold Voltage Vge: 5 V typical
- Junction to Case Thermal Resistance: 0.067 KW
- Case to Heatsink Resistance: 0.042 KW
- Isolation Test Voltage RMS: 2.5 kV, 1 min
- Module Dimensions (not mounted): see datasheet outline
- Operating Temperature Range: -40°C to +150°C
- RoHS Compliant
Buy the Buy Infineon FS450R120E4 High Power IGBT Module Online
Purchase the Infineon FS450R120E4 IGBT module online today for high-efficiency inverter, motor drive, solar, and UPS applications. This module features 1200V, 450A ratings, integrated NTC sensors, PressFIT connections, and robust construction for demanding environments. It offers excellent surge current capacity, low thermal resistance, and RoHS compliance, making it ideal for high power switching tasks. Reliable, durable, and easy to install, this module guarantees optimal electrical performance and mechanical stability for industrial, automotive, and renewable energy projects.
Order your Infineon FS450R120E4 high-performance IGBT module today and ensure reliable operation in your motor drives, inverters, or solar systems with superior thermal and electrical specs.
Frequently Asked Questions
Where can I buy INFINEON FS450R12OE4BOSA1?
You can click on the BUY or RFQ button to purchase FS450R12OE4BOSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part FS450R12OE4BOSA1?
You can download the FS450R12OE4BOSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of FS450R12OE4BOSA1?
INFINEON
