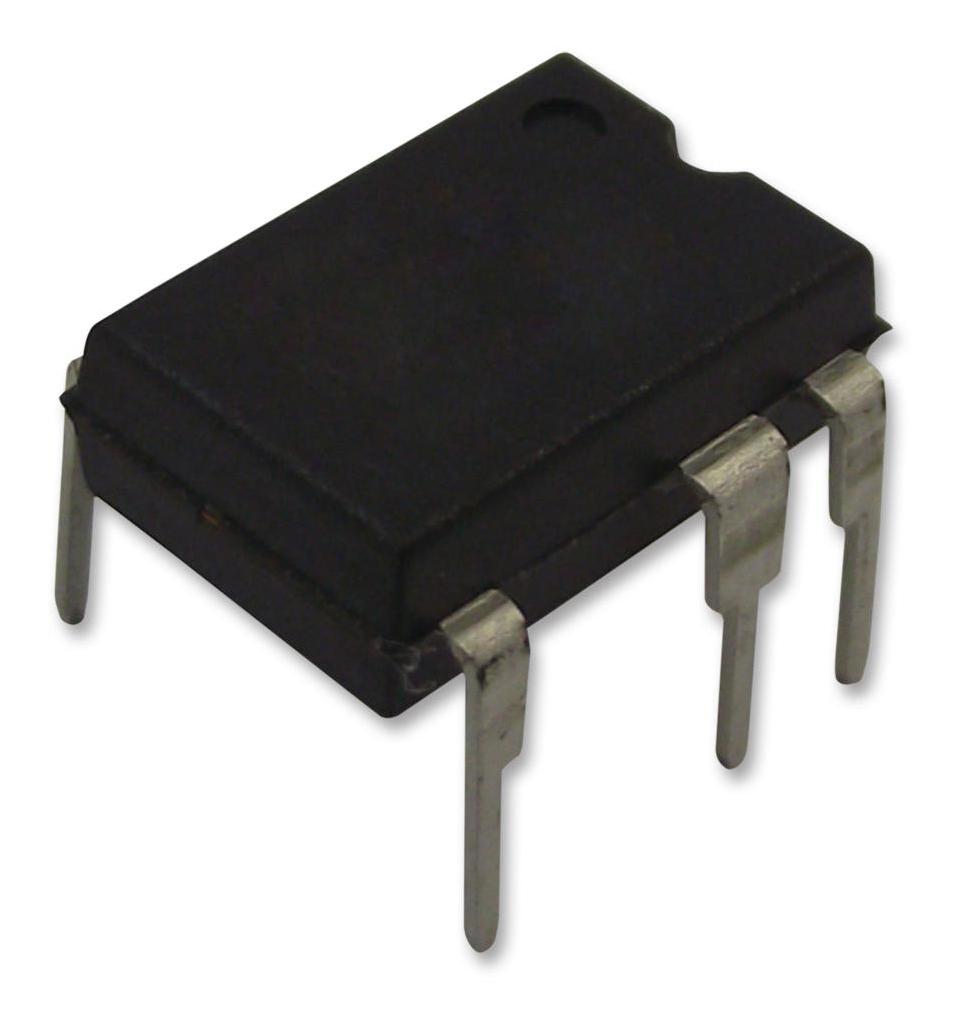

INFINEON ICE2QR0680ZXKLA1 Off-Line PWM Controller
The ICE2QR0680Z is a high-efficiency off-line quasi-resonant PWM controller with an integrated 800V CoolMOS® and startup cell in a DIP7 package. Designed for power supply applications like LCD monitors, DVD players, and set-top boxes, it minimizes EMI, reduces switching losses via digital frequency reduction, and supports low standby power consumption under active burst mode, with protection functions including overvoltage, overtemperature, and short-winding safeguards. Its innovative features ensure reliable operation, low power dissipation, and enhanced system efficiency.
INFINEON ICE2QR0680ZXKLA1 Off-Line PWM Controller Specifications:
- Package: PG-DIP-7 (Plastic Dual In-Line)
- Drain Source Voltage: 800V
- Maximum Drain Current: 20A (pulse)
- Avalanche Energy: 0.17mJ (repetitive)
- VCC Supply Voltage: -0.3V to 27V
- Junction Temperature Range: -40°C to 150°C
- Operating Range: 85VAC to 265VAC
- Switching Frequency: 39-65kHz (fixed)
- Active Burst Mode Power Consumption: <100mW at no load
- Maximum On/Off Time Limitation, Overvoltage & Overtemperature Protection
- Foldback Point & Cycle-by-Cycle Peak Current Limitation
- Integrated 800V CoolMOS® with low Rds(on): 0.62Ω
- Internal Reference Voltage: 4.80V to 5.20V
- Peak Current Limitation: 0.97V to 1.09V
- Soft-Start Time: 12ms
- Zero Crossing Detection: 50-170mV threshold
- Input Power Range: Derived from typical input power vs ambient temperature curves
- RoHS compliant, Pb-free lead plating
Buy the Cinfineon Series CoolSET PWM: ICE2QR0680Z
Purchase the Cinfineon ICE2QR0680Z today for high efficiency, integrated 800V CoolMOS®, and low standby power features. Ideal for LCD monitors, DVD players, and set-top boxes, this off-line PWM controller ensures reliable operation with advanced protection functions including overvoltage, overtemperature, and short-winding safeguards. Its digital frequency reduction enhances system efficiency while active burst mode minimizes power consumption during standby. Designed for easy installation in DIP7 packages, it guarantees long-term durability, low EMI, and energy-saving performance for modern power supplies.
Get Cinfineon ICE2QR0680Z today—built for precision, low power standby mode, and long-lasting durability.
