INFINEON IKFW60N65ES5XKSA1 High-Speed Power Switch
The TRENCHSTOP™ 5 advanced isolation IGBT is a high-speed, soft-switching device featuring very low Veesat of 1.35V at nominal current, 650V breakdown voltage, and maximum junction temperature of 175°C. It includes a full-rated RAPID 1 antiparallel diode, suitable for resonant converters, UPS, welding, and high-frequency switching applications. The device is RoHS compliant with a halogen-free, fully isolated TO-247 package, optimized for industrial power systems, offering plug-and-play replacement of previous IGBT generations, enhanced reliability, and complete PSpice models for design support.
INFINEON IKFW60N65ES5XKSA1 High-Speed Power Switch Specifications:
- Voltage Rating: 650V
- Collector Current: 77.0A at 25°C, 60.0A at 65°C
- Pulsed Collector Current: 200A
- Maximum Junction Temperature: 175°C
- Veesat: 1.35V at 25°C
- Gate-Emitter Threshold Voltage: 3.2V to 4.8V
- Gate Charge: 120nC
- Reverse Recovery Time: 77ns at 25°C
- Package: TO-247, Halogen-Free, RoHS compliant
- Thermal Resistance (junction to heatsink): 0.92-1.09 K/W
- Isolation Voltage RMS: 2500V
- Soldering Temp: 260°C for 10s
- Storage Temp: -55°C to +150°C
- Power Dissipation: 138W at 25°C

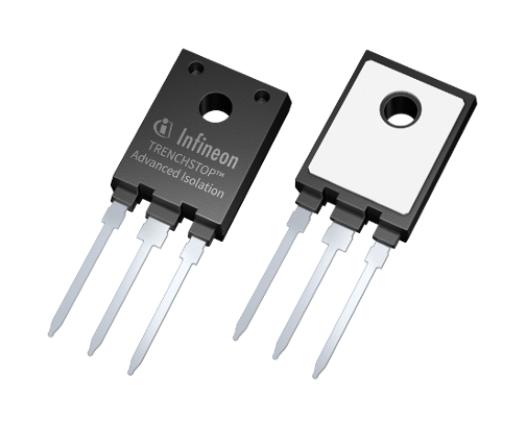

Buy the Buy Infineon TRENCHSTOP 5 Advanced Isolation Part Number IKFW60N65ES5XKSA1 Online
Order the Infineon TRENCHSTOP 5 advanced isolation IGBT online today to enhance your industrial power systems. With superior switching speed, low conduction losses, and full isolation, this device ensures high efficiency and reliability. Its plug-and-play design allows effortless replacement of older IGBTs, reducing downtime. Ideal for resonant converters, UPS, welding, and high-frequency switching, the part is RoHS compliant and halogen-free. Supply chain security, fast delivery, and comprehensive support are guaranteed when you buy this advanced power device online now.
Buy Infineon IKFW60N65ES5XKSA1 now and experience unmatched reliability and high-speed switching performance for industrial applications.
Frequently Asked Questions
Where can I buy INFINEON IKFW60N65ES5XKSA1?
You can click on the BUY or RFQ button to purchase IKFW60N65ES5XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKFW60N65ES5XKSA1?
You can download the IKFW60N65ES5XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKFW60N65ES5XKSA1?
INFINEON
