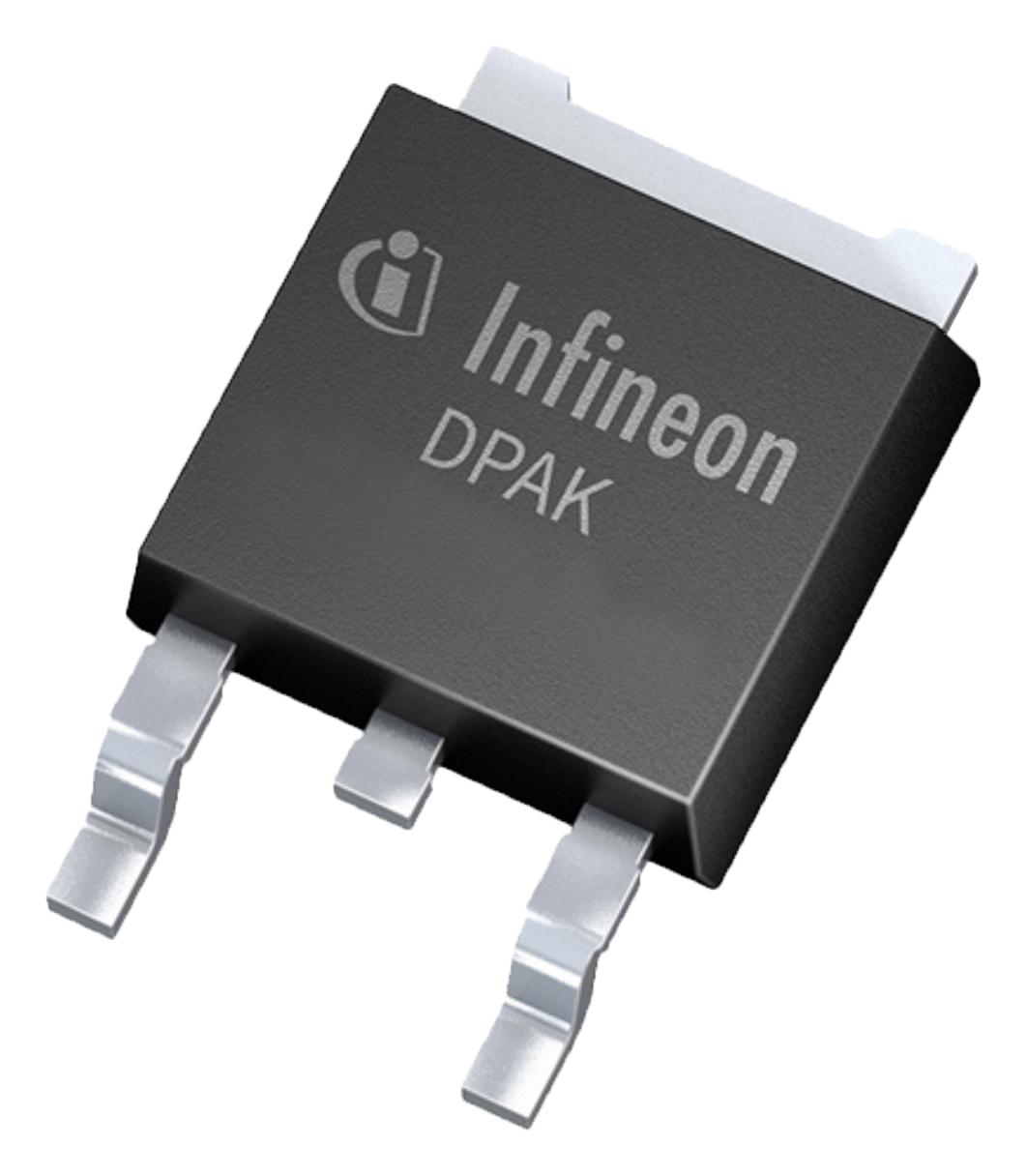

INFINEON IPD65R660CFDAATMA1 High Voltage Power Transistor
The Infineon 650V CoolMOS CFDA Power Transistor is a high-performance, superjunction MOSFET designed for efficient switching in automotive and industrial applications. Featuring an ultra-fast body diode, very high commutation ruggedness, and extremely low conduction and switching losses due to optimized Rdson*Qg and Eoss, it provides reliable, energy-efficient performance. The device supports high pulsed and continuous drain currents, operates over a temperature range of -40°C to 150°C, and is RoHS compliant with a green, Pb-free package, making it ideal for resonant switching and high-voltage applications requiring robust and fast switching capabilities.
INFINEON IPD65R660CFDAATMA1 High Voltage Power Transistor Specifications:
- Drain-source breakdown voltage: 650 V
- RDS(on), max: 0.66 Ω
- Qg, typ: 20 nc
- ID, pulse: 17 A
- Eoss @ 400V: 1.8 J
- Diode forward voltage: 0.9 V
- Re: 6.5 Ω
- Maximum continuous drain current: 6 A at 25°C
- Pulsed drain current: 17 A
- Avalanche energy (single pulse): 115 mJ
- Operating temperature range: -40°C to 150°C
- Thermal resistance junction-case: 2 K/W
- Gate threshold voltage: 3.5 - 4.5 V
- Gate resistance: 6.5 Ω
- Capacitances (Ciss/Coss): 543 pF/32 pF
- Reverse recovery time: 65 ns
- Reverse recovery charge: 0.2 pC
- Package: PG-TO 252
Buy the Infineon Series CFDA 650V CoolMOS Power Transistor: IPD65R660CFDA
Order the Infineon high-voltage power transistor online today to experience exceptional efficiency and reliability in your automotive or industrial switching applications. Designed with advanced superjunction technology, this 650V MOSFET features an ultra-fast body diode, low conduction and switching losses, and robust ruggedness for high pulse currents. Its RoHS-compliant, lead-free package ensures environmental safety. Perfect for resonant switching and high-voltage electronics, this transistor guarantees high performance, durability, and easy integration for engineers and technicians seeking premium quality components.
Get Infineon IPD65R660CFDA today—built for high-efficiency, robust, and fast switching in demanding automotive and industrial applications.
