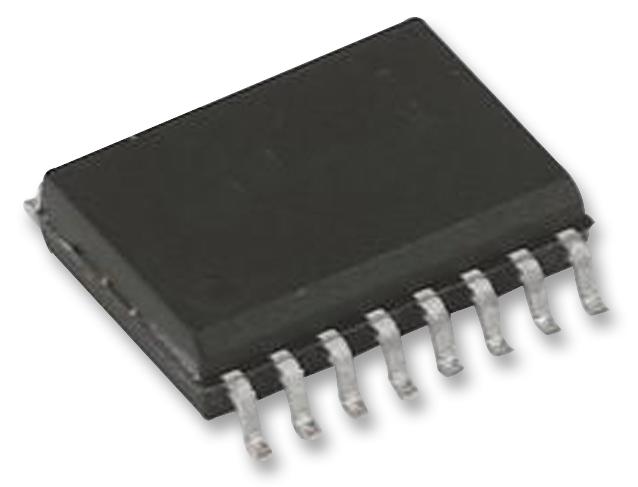

MAXIM INTEGRATED / ANALOG DEVICES MAX696CWE Microprocessor Supervisor
The MAX696CWE+ is a microprocessor supervisory circuit in a 16-pin WSOIC package. It simplifies power supply monitoring and battery control in microprocessor systems by integrating functions such as system reset, backup battery switchover, watchdog timer, CMOS RAM write protection, and power failure warning. The device provides a reset pulse if the watchdog timer is not activated within a set period, with adjustable reset timing using an external capacitor or clock pulses. It features a separate threshold detector at 1.3V for power fail warnings and low battery detection, suitable for monitoring additional power supplies beyond VCC. The MAX696CWE+ enhances system reliability and accuracy while minimizing external components. Key specifications include a supply voltage range of 3V to 5.5V, operating temperature from 0°C to 70°C, adjustable low-line monitor, power-on reset delay, and a low standby current of 1µA. It also offers battery backup switching and dedicated monitoring for power failure or low battery conditions. Suitable applications include system monitoring and portable devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX696CWE Microprocessor Supervisor Specifications:
- Supply Voltage Range: 3V to 5.5V
- Operating Temperature: 0°C to 70°C
- Reset Pulse Width: 50ms (adjustable with external capacitor or clock)
- Watchdog Timeout Period: 100ms, 1.6s, or adjustable
- Power-On Reset Delay: 50ms
- Power-Fail Threshold: 1.3V (separate detector)
- Low Standby Current: 1µA
- Vout: Can source 50mA; Vout connected to Vcc when power is present or to battery voltage for backup
- Battery Switchover: Yes, from Vcc to backup battery at Vgatt threshold
- Monitoring: Vcc, backup battery, power-fail, and low-battery conditions
- Package: 16-pin WSOIC
