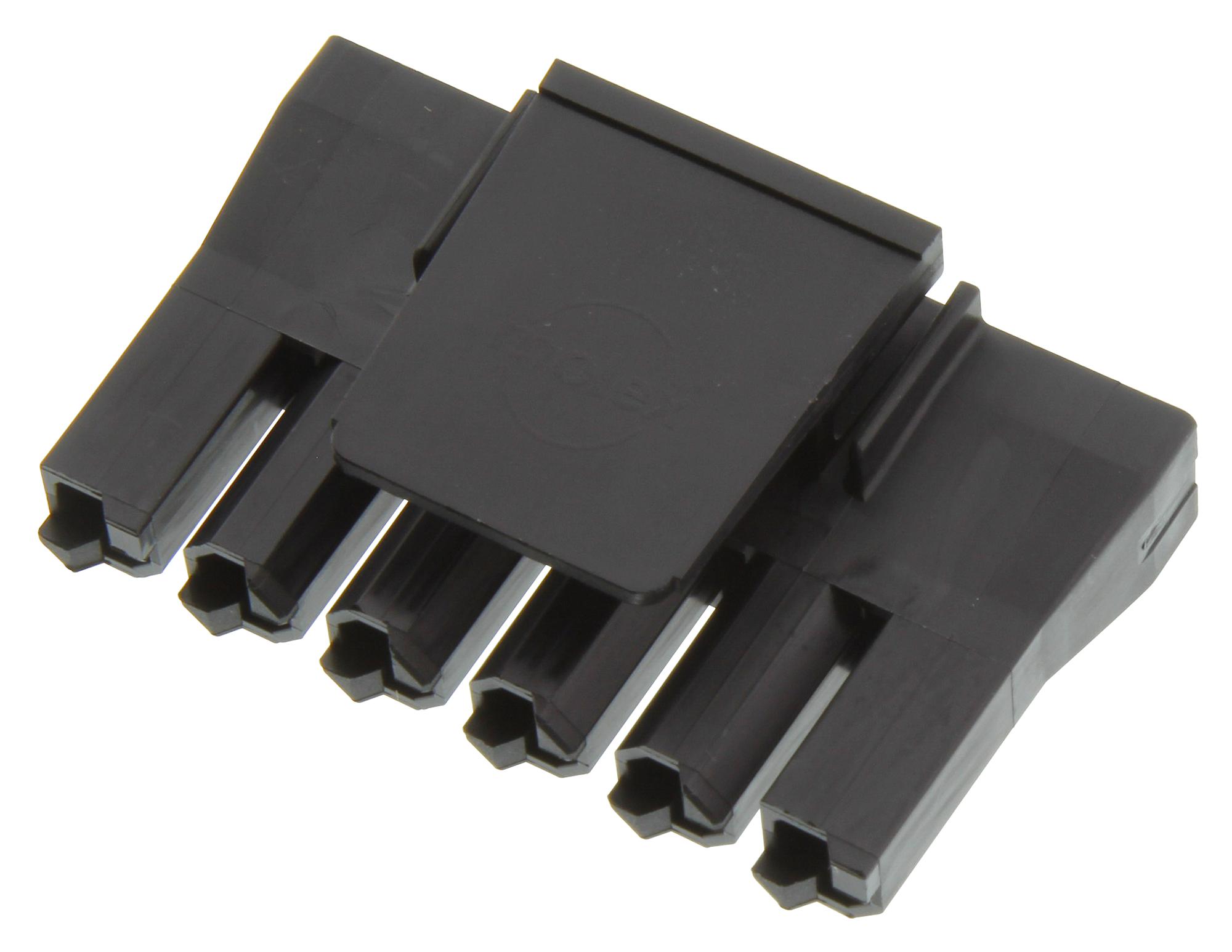

MOLEX 1726722006 Super Sabre Receptacle
The Super Sabre Receptacle Crimp Housing is a 7.50mm pitch connector designed for power and wire-to-board applications. Made from UL 94V-0 rated nylon, it supports up to 6 circuits with a black color coding. This halogen-free and RoHS compliant component features a polarized design, lock to mating part, and is suitable for operating temperatures from -40°C to +125°C. It is compatible with Super Sabre series headers and terminals, ensuring reliable electrical performance with a maximum current of 34.0A per contact, making it ideal for industrial and electronic systems requiring durable, high-current connectors.
MOLEX 1726722006 Super Sabre Receptacle Specifications:
- Pitch - Mating Interface: 7.50mm
- Number of Circuits: 6
- Color - Resin: Black
- Flammability: UL 94V-0
- Material - Resin: Nylon
- Temperature Range - Operating: -40°C to +125°C
- Current - Maximum per Contact: 34.0A
- Gender: Receptacle
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Package Type: Carton
- Stackable: No
- Glow-Wire Capable: No
- Polarized to Mating Part: Yes
- Lock to Mating Part: Yes
- Net Weight: 4.700g
- Agency Certification: UL, CSA
Buy the Buy Molex Super Sabre Receptacle Part Number 1726722006 Online
Choose to buy the Molex Super Sabre Receptacle with part number 1726722006 online for a durable, high-current connector solution. Designed with a 7.50mm pitch and supporting up to 6 circuits, this UL 94V-0 rated nylon housing is RoHS compliant and halogen-free. It ensures reliable electrical performance across a temperature range of -40°C to +125°C, featuring polarized and lockable design for secure connections. Ideal for industrial, power, and electronic applications demanding robust, high-current connectors with a compact, stackable design for versatile assembly.
Buy Molex 1726722006 now and experience unmatched reliability and performance with high-current, UL 94V-0 nylon connectors for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 1726722006?
You can click on the BUY or RFQ button to purchase 1726722006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1726722006?
You can download the 1726722006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1726722006?
MOLEX
