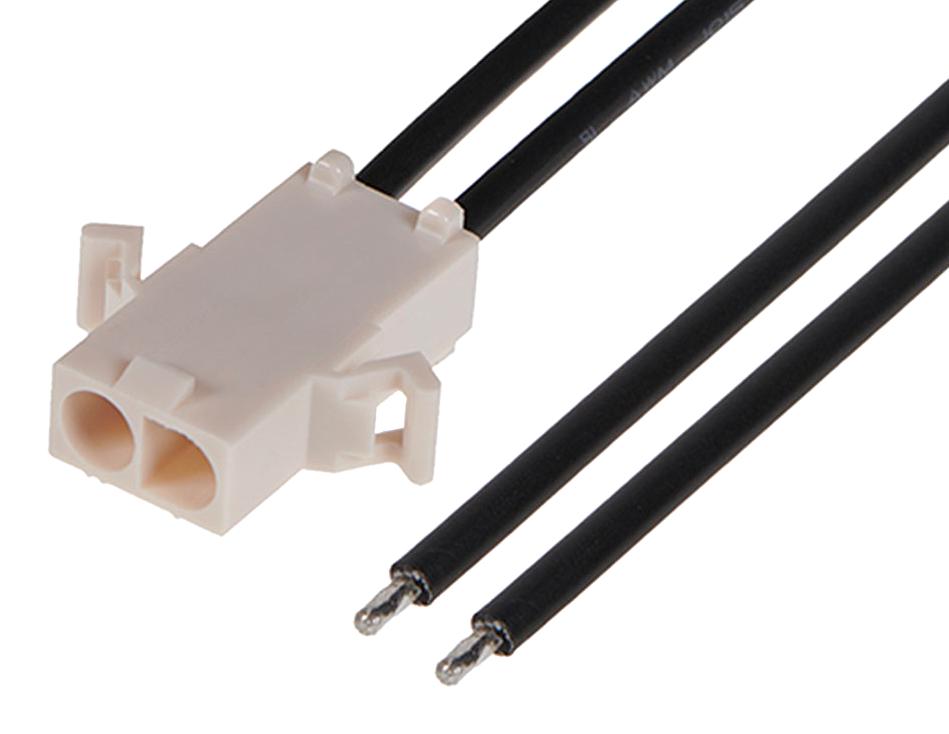

MOLEX 2162931023 Power Connector Assembly
The 216293 series is a versatile .093 inch male-to-pigtail cable assembly designed for consumer electronics, data communications, and networking. It features various cable lengths, supports up to 12A current, and includes panel-mount options with pre-bent ears for easy installation. Keying and polarizing features ensure correct and secure connections, preventing miswiring. Compatible with standard .093 inch housings and terminals, it operates up to 600V and withstands temperatures from -40°C to +105°C, providing reliable connectivity and durability in diverse environments.
MOLEX 2162931023 Power Connector Assembly Specifications:
- Cable Length: 600.00mm
- Number of Circuits: 2
- Color - Resin: Natural
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 6.70mm
- Wire Size AWG: 14
- Electrical Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Lock to Mating Part: Yes
- Termination Style: Crimp or Compression
- Plating Min - Mating: 0.508um
- Plating Min - Termination: 0.508um
- Connector Type: Standard .093 inch Pin and Socket
- Compatibility: Standard .093 inch Connector Housings
- Durability: Up to 25 mating cycles
Buy the Molex Series 216293 Power Connectors: 2162931023
Secure your electronic and networking projects with the Molex Power Connector Assembly. This high-quality .093 inch male-to-pigtail cable provides easy installation, reliable connections, and support for up to 12 amperes. Its versatile design features panel-mount options with pre-bent ears, ensuring flexibility in installation. Compatible with standard housings, it handles voltages up to 600V and operates efficiently across temperatures from -40°C to +105°C. Trust Molex for durable, high-performance connector solutions for your demanding application needs.
Buy Molex 2162931023 now and experience unmatched reliability and performance with versatile connector assemblies for electronic and communication systems.
