MOLEX 2164011031 Datasheet & Stock

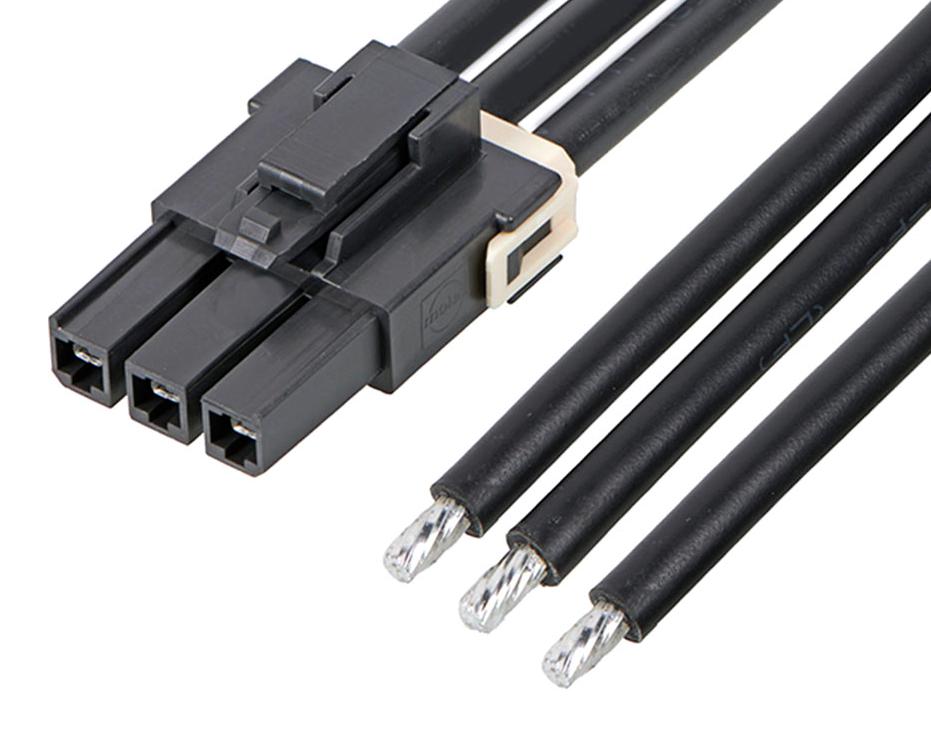

This off-the-shelf Mega-Fit female-to-pigtail cable assembly delivers a 25A current rating and is available in various lengths. It features a compact connector with polarizing and unique keying to protect terminals, ensure compatibility with all Mega-Fit single-row headers, and prevent electrical arcing. The assembly includes a new latch design with superior retention and low-mating force, as well as an individually polarized header to support safety features. The nylon housing meets V0 and glow-wire European standards, and the assembly incorporates a locking mechanism, TPA to prevent terminal backout, and guiding features for proper assembly. Constructed with high-conductivity copper contacts, tin plating, and UL and CSA certifications, it is suitable for applications in commercial vehicles, home appliances, industrial equipment, and telecommunications networks. Operating parameters include a maximum voltage of 600V AC/DC and temperatures from -40°C to +105°C.

View 2164011031Datasheet [pdf]
