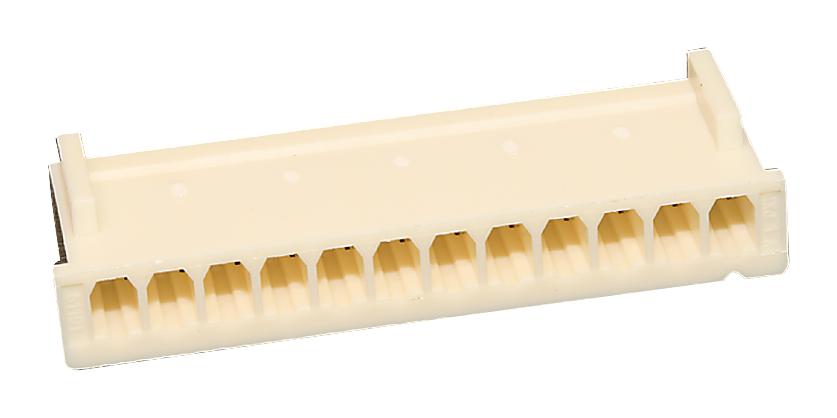

MOLEX 511911200 Mini-Latch Connector
The Mini-Latch Wire-to-Board and Wire-to-Wire Connector System with a 2.50mm pitch features a 12-circuit receptacle housing designed for reliable connections in electronic assemblies. Made from flame-retardant nylon, it ensures safety and durability across a wide temperature range of -40°C to +105°C. The connector includes guide rails for precise mating, supports stackable configurations, and is UL certified. Suitable for complex wiring systems, it is compatible with various headers and crimp terminals, making it ideal for applications requiring secure, high-quality wire connections in compact electronic devices.
MOLEX 511911200 Mini-Latch Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 12
- Material: Nylon (Flame-retardant, UL 94V-0)
- Operating Temperature Range: -40°C to +105°C
- Gender: Receptacle
- Flammability: UL 94V-0
- Stackable: No
- Net Weight: 1132.800 mg
- Packaging: Bag
- RoHS: Compliant, Halogen-Free, Low-Halogen, REACH SVHC Not Contained
- Application: Wire-to-Board, Wire-to-Wire
- Agency Certification: UL
- Reference Drawing: E29179
- Connector Series: 51191
- Use With: 50802 Crimp Terminal
- Mates With: 5045 Vertical Header, 5046 Right Angle Header, 5240 Plug Housing
Buy the Buy Molex Mini-Latch Wire-to-Board Part Number 0511911200 Online
Purchase the Molex Mini-Latch Connector with 12 circuits and 2.50mm pitch online today. This UL-certified nylon connector features guide rails, supports stackability, and performs reliably across wide temperature ranges from -40°C to +105°C. It is ideal for wire-to-wire and wire-to-board applications, offering safety, durability, and easy installation. Compatible with various headers and crimp terminals, this connector ensures secure connections for electronic devices requiring high-quality, space-efficient wiring solutions.
Get Molex 0511911200 today—designed for reliable and secure electronic connections in compact, rugged applications.
