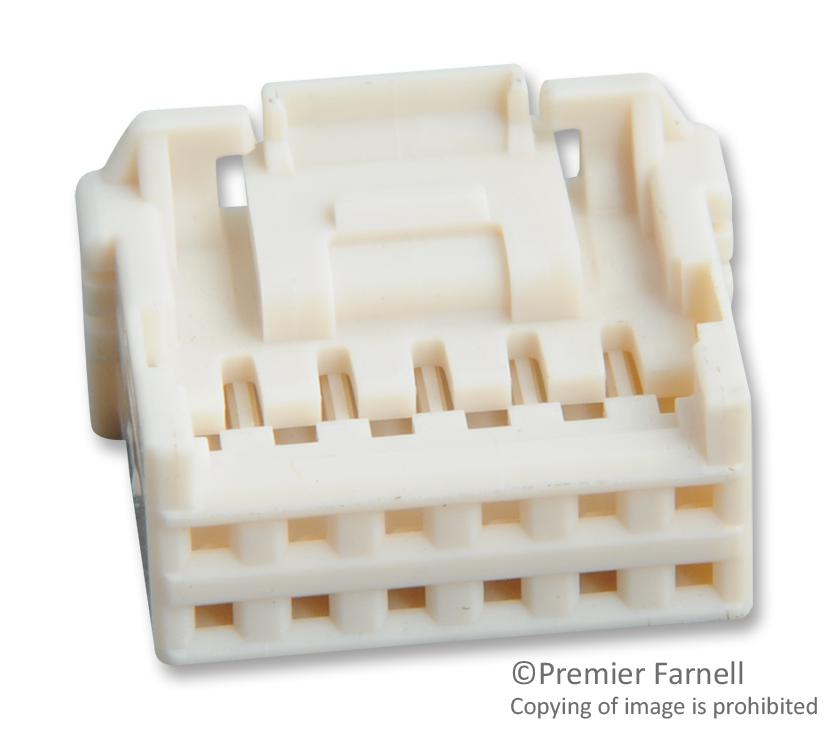

MOLEX 5016463000 iGrid Wire-to-Board Housing
The MOLEX 501646-3000 iGrid Wire-to-Board Housing is a robust solution for connecting wires to printed circuit boards. This dual-row housing, part of the iGrid series, provides a 2.00mm pitch and accommodates up to 30 circuits. The positive lock feature ensures a secure and reliable connection, while the polarized design simplifies assembly and prevents mismating. Manufactured from Nylon resin, this housing offers excellent durability and resistance to chemicals and heat. It is commonly used in industrial automation, automotive, and consumer electronics applications where a dependable wire-to-board connection is essential.
MOLEX 5016463000 iGrid Wire-to-Board Housing Specifications:
- overview: iGrid Wire-to-Board Dual-Row System
- description: 2.00mm Pitch iGrid Wire-to-Board Housing, Dual Row, Positive Lock, 30 Circuits
- circuits_maximum: 30
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight: 860.000/mg
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating: -40° to +105°C
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- upc: 822350087230
- series: 501646
- mates_with_501645: Yes
- mates_with_503091: Yes
- mates_with_501876: Yes
- use_with_501647: Yes
- use_with_501648: Yes
