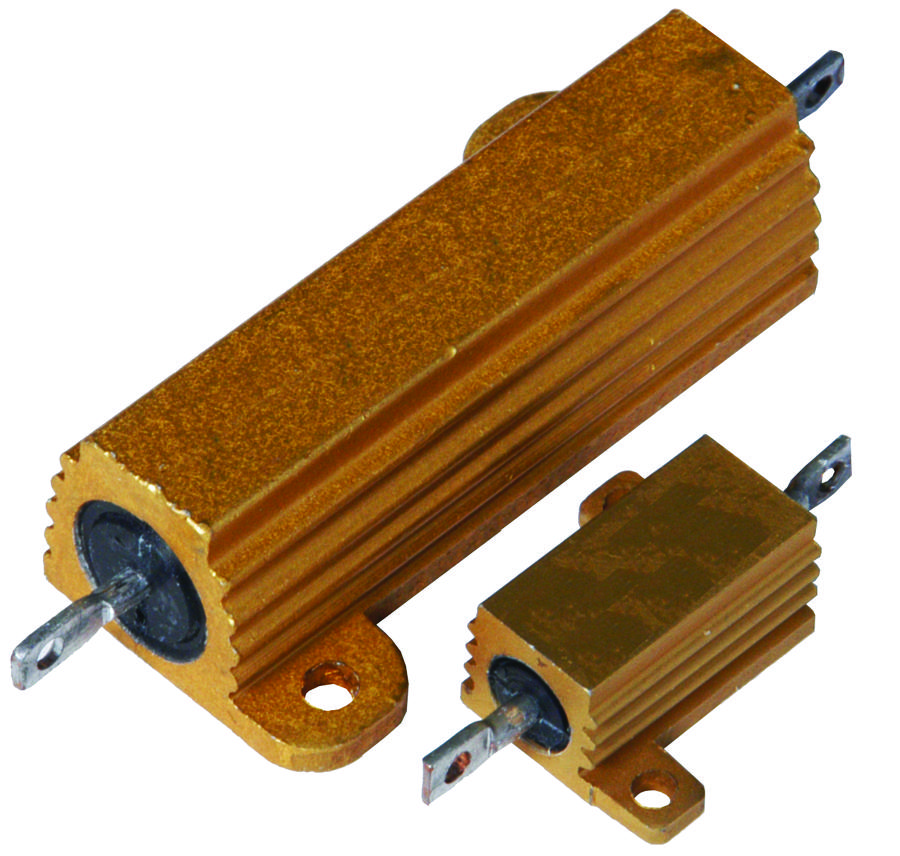

MULTICOMP PRO MC14730 Adjustable Wire-Wound Resistor
The MC14640 is a high-power, adjustable wire-wound resistor with a 100Ω resistance, featuring a tubular ceramic core and a lead-free vitreous enamel coating. Designed for reliability, it includes solder-coated radial lug terminals for secure connections and is suitable for circuits requiring adjustable resistance and high wattage capacity. Its power rating depends on the chassis mounting area and temperature stability, with the ability to withstand overloads of 5 times rated wattage for 5 seconds. The resistor's specifications include a temperature coefficient >1Q :+90ppm/°C and dielectric withstanding voltages up to 2250V AC for 50W ratings. Its compact and robust design makes it ideal for high-power applications.
MULTICOMP PRO MC14730 Adjustable Wire-Wound Resistor Specifications:
- Resistance: 100Ω
- Power Rating: Based on chassis mounting and temperature, up to 50W
- Housing Material: Metal, Anodized Aluminium
- Core Material: Ceramic
- Terminal Type: Solder-coated axial lead
- Overload Capability: 5 times rated wattage for 5 seconds
- Temperature Coefficient: >1Q :+90ppm/°C
- Dielectric Withstanding Voltage: 1000V AC for 5W & 10W; 2250V AC for 25W & 50W
- Dimensions: 0.75 inch (19.05 mm) diameter, length varies with wattage
- Environmental: RoHS compliant, materials certified
- Winding: Single layer inductive windings
- Derating Linearly from 100% @ +25°C to 0% @ +275°C
Buy the Multicomp Series Adjustable Resistor: MC14730
Purchase the adjustable wire-wound resistor online today to benefit from robust construction, high power rating, and reliable performance. This resistor features a ceramic core, solder-coated terminals, and can withstand overloads of five times the rated wattage for five seconds, making it ideal for high-power applications. Its design adheres to RoHS standards, ensuring environmental compliance. The resistor's high dielectric withstand voltage of up to 2250V AC and temperature stability ensure safe, efficient circuit performance. Order now for fast delivery and operational peace of mind.
Order your Multicomp Series MC14730 adjustable wire-wound resistor today and ensure your circuits operate with high power and reliability.
