NXP JN5188THN001Z Wireless Microcontroller
The JN5188THN is a high-performance, ultra-low power wireless microcontroller supporting IEEE 802.15.4 and ZigBee 3.0 protocols. It features a 32-bit ARM Cortex-M4 core operating at up to 48 MHz, embedded 640 KB flash with OTA capabilities, and 152 KB SRAM. It includes a 2.4 GHz IEEE 802.15.4 compliant transceiver, multiple digital peripherals, ADC, temperature sensor, and NFC support. The compact HVQFN40 package is RoHS compliant, optimized for battery-powered IoT, smart home, and automation applications, with low current consumption and robust security features.
NXP JN5188THN001Z Wireless Microcontroller Specifications:
- Processor: ARM Cortex-M4, up to 48 MHz
- Memory: 640 KB embedded Flash, 152 KB SRAM
- Radio: 2.4 GHz IEEE 802.15.4 compliant transceiver, -100 dBm sensitivity, configurable output power up to +11 dBm
- Power: Ultra-low current consumption, deep power-down mode at 350 nA
- Package: HVQFN40, 6 x 6 mm, RoHS compliant
- Operating voltage: 1.9 V to 3.6 V
- Temperature range: -40°C to +125°C
- Peripherals: 10-channel PWM, 2 timers, RTC, watchdog, AES security engine, NFC (on variants), multiple I2C, SPI, USART interfaces
- Security: 128/192/256-bit AES, hardware RNG, Hash accelerators
- Additional features: NFC NFC Forum Type 2 tag, temperature sensor, digital microphone interface, hardware voice activity detection
- Support for multiple low-power modes: sleep, deep-sleep, power-down, deep power-down
- Package outline: HVQFN40 (6 x 6 mm), RoHS compliant, lead-free
- Qualification: Meets regulatory standards including FCC, IC, ETSI

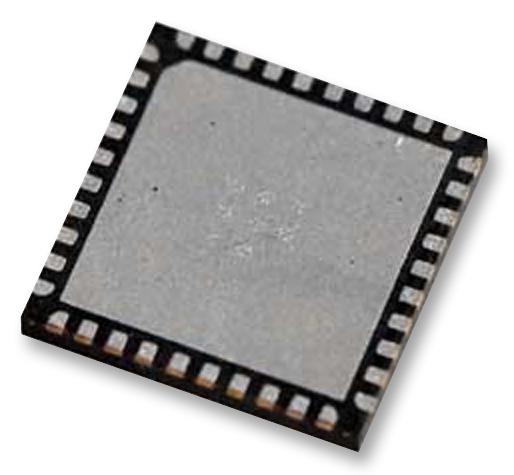

Buy the Buy NXP JN5188THN Sensor Part Number JN5188THN001Z Online
Discover the NXP JN5188THN wireless microcontroller designed for IoT and smart home applications. Featuring a 48 MHz ARM Cortex-M4 core, extensive memory, ultra-low power operation, NFC support, and multiple digital peripherals, it ensures robust and secure wireless connectivity. Its compact HVQFN40 package simplifies integration into battery-powered devices. Ideal for developers seeking reliable, energy-efficient solutions for ZigBee, Thread, and IEEE 802.15.4 networks, the JN5188THN provides OTA updates, advanced security, and flexible connectivity options. Purchase online today for innovative IoT deployment.
Get NXP JN5188THN today—optimized for low power IoT, smart home automation, and secure wireless connectivity with NFC support.
Frequently Asked Questions
Where can I buy NXP JN5188THN001Z?
You can click on the BUY or RFQ button to purchase JN5188THN001Z from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part JN5188THN001Z?
You can download the JN5188THN001Z datasheet or visit the NXP website for support.
Who is the manufacturer of JN5188THN001Z?
NXP
