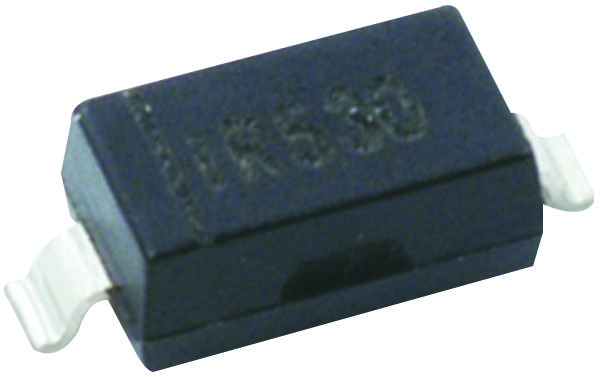

ONSEMI MMSZ4708T1G Zener Voltage Regulator
This Zener voltage regulator series offers surface-mount devices in the compact SOD-123 package, rated at 500 mW. They provide a wide reverse voltage range from 1.8 V to 43 V, suitable for automated board assembly, high-density applications, and automotive use with rigorous standards, including AEC-Q101 qualification. With a robust build, corrosion-resistant finish, and UL 94 V-0 flammability rating, these devices ensure reliable voltage regulation and protection in various electronic circuits, combining small size with high power dissipation capability for versatile industrial applications.
ONSEMI MMSZ4708T1G Zener Voltage Regulator Specifications:
- Package Type: SOD-123 surface mount
- Power Dissipation: 500 mW
- Zener Voltage Range: 1.8 V to 43 V
- Maximum Case Temperature for Soldering: 260°C for 10 seconds
- Maximum Total Power on FR-5 Board: 500 mW
- Junction-to-Ambient Thermal Resistance: 340°C/W (Pb-Free)
- Junction-to-Lead Thermal Resistance: 150°C/W (Pb-Free)
- Temperature Range: -55°C to +150°C
- Polarity: Cathode indicated by polarity band
- Flammability Rating: UL 94 V-0
- ESD Capability: Class 3 (> 16 kV) human body model
- Compliance: Pb-Free, RoHS compliant
- Design: Void-free, transfer-molded thermosetting plastic case
- Finish: Corrosion resistant, solderable
- Maximum Soldering Temperature: 260°C
Buy the ON Semiconductor Series MMSZ Zener Voltage Regulator: MMSZ4708T1G
Purchase ON Semiconductor MMSZ4708T1G Zener voltage regulator today for reliable voltage regulation solutions. These surface-mount devices in SOD-123 packages are rated at 500 mW and feature a wide reverse voltage range from 1.8 V to 43 V. Ideal for high-density circuit applications, automotive electronics, and automated manufacturing, they are RoHS compliant, corrosion-resistant, and UL 94 V-0 rated. Ensure your electronic designs are protected and efficiently regulated with these durable, high-performance devices that guarantee stable voltage control in demanding environments.
Get ON Semiconductor MMSZ4708T1G today—built for precision and long-lasting durability in voltage regulation applications.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ4708T1G?
You can click on the BUY or RFQ button to purchase MMSZ4708T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ4708T1G?
You can download the MMSZ4708T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ4708T1G?
ONSEMI
