ONSEMI NUF8402MNT4G EMI Filter with ESD Protection
The NUF8402MN is a compact eight-channel EMI filter with integrated ESD protection, designed for high-speed data interfaces. It combines pi-style filtering with ESD protection on each channel, featuring a cutoff frequency of 105 MHz and stop band attenuation greater than -35 dB from 800 MHz to 2.2 GHz. The device in a low-profile 16-lead DFN package (4x1.6 mm) provides excellent EMI suppression and ESD resilience, suitable for LCD, camera data lines, and I/O ports in space-constrained applications, ensuring system reliability and minimal interference.
ONSEMI NUF8402MNT4G EMI Filter with ESD Protection Specifications:
- Package Type: DFN16, 4x1.6 mm, 0.5P
- Number of Channels: 8
- Cutoff Frequency: 105 MHz
- Stop Band Attenuation: greater than -35 dB from 800 MHz to 2.2 GHz
- ESD Protection: ±18 kV IEC61000-4-2 Contact Discharge per channel
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 150°C
- Maximum Soldering Temperature: 260°C for 10 seconds at 1.8 in from case
- Line Resistance: 100 Ω typical
- Diode Capacitance: 17 pF typical
- Leakage Current: 100 nA at 3.3V
- Maximum Reverse Voltage: 8V
- Resistance: 100 Ω
- Resistance variation over temperature: minimal, typical resistance 100 Ω
- Dimensions: 4.0 mm x 1.6 mm x 0.5 mm, low-profile surface mount
- Compliance: Pb-Free, RoHS compliant

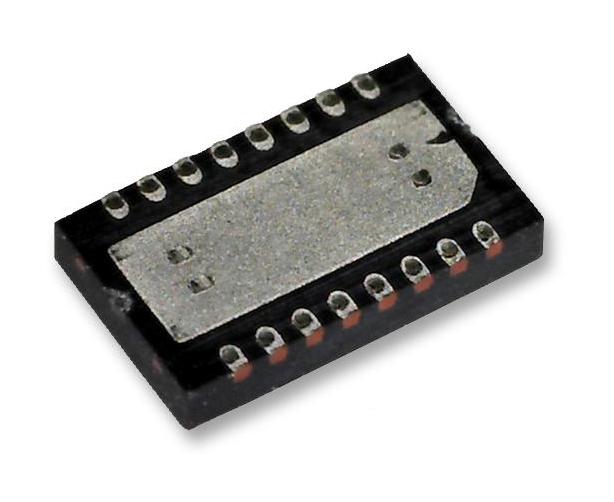

Buy the Buy ON Semiconductor NUF8402MN Part Number NUF8402MNT4G Online
Purchase the ON Semiconductor NUF8402MN online today to ensure your high-speed data interfaces are protected from EMI and ESD. This space-efficient eight-channel filter captures frequencies up to 105 MHz with over -35 dB attenuation from 800 MHz to 2.2 GHz, making it ideal for LCDs, cameras, and I/O ports. Its integrated ESD protection with ±18 kV discharge voltage enhances system durability. In a small 4x1.6 mm DFN package, it minimizes circuit space, reduces cost, and simplifies design, providing reliable EMI suppression for demanding electronic systems.
Buy ON Semiconductor NUF8402MN now and experience unmatched reliability and high-frequency filtering in compact size for your data line applications.
