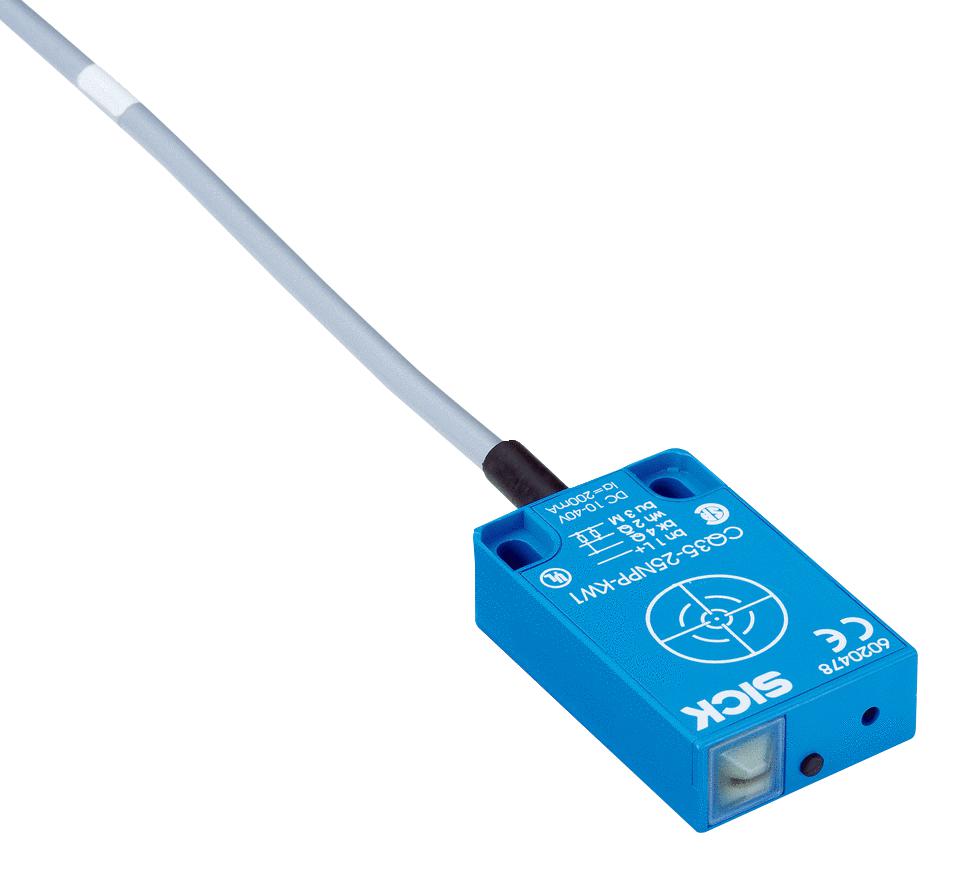

SICK CQ3525NPPKC1 Capacitive Proximity Sensor
The CQ35-25NPP-KC1 capacitive proximity sensor by SICK is a compact, non-flush mounted device with a sensing range of 4mm to 25mm, tailored for industrial applications. Its plastic housing (PC) withstands harsh environments with an IP67 enclosure rating, supporting temperatures from -25°C to +75°C. It features PNP output, DC 4-wire connection, and sensitivity adjustment via a potentiometer. The sensor is protected against short circuits, reverse polarity, and power-up pulses, with high shock and vibration resistance, ensuring reliability and precise detection in automation systems.
SICK CQ3525NPPKC1 Capacitive Proximity Sensor Specifications:
- Housing Material: Plastic, PC
- Dimensions: 35 mm x 69.5 mm x 45 mm
- Sensing Range: 4mm to 25mm
- Safe Sensing Range: 18mm
- Installation Type: Non-flush
- Connection Type: Male M12, 4-pin
- Output Type: PNP, DC 4-wire
- Supply Voltage: 40VDC to 36VDC
- Output Function: Complementary
- Ripple: <10%
- Voltage Drop: <25Vpce
- Current Consumption: <10mA
- Shock and Vibration Resistance: 30g, 11 ms / 10...55 Hz, 1mm
- Temperature Range: -25°C to +75°C
- Enclosure Rating: IP67
- Mechanical/Electrical Protection: Short-circuit, reverse polarity, power-up pulse
- Housing Material: Plastic (PC)
- Reproducibility: <5%
Buy the Buy SICK Capacitive Proximity Sensors Part Number CQ35-25NPP-KC1 Online
Order the SICK capacitive proximity sensor CQ35-25NPP-KC1 online and ensure high-precision detection for industrial automation. Its compact design, IP67 enclosure, and adjustable sensitivity make it suitable for various applications. The sensor operates with a PNP output, DC 4-wire connection, and offers protection against short circuits, reverse polarity, and power surges. With its robust housing and broad temperature range, it guarantees long-lasting performance amidst vibrations and environmental challenges, optimizing process control and safety in your facilities.
Get SICK CQ35-25NPP-KC1 today—built for industrial detection with reliable, adjustable sensing and high durability in harsh environments.
