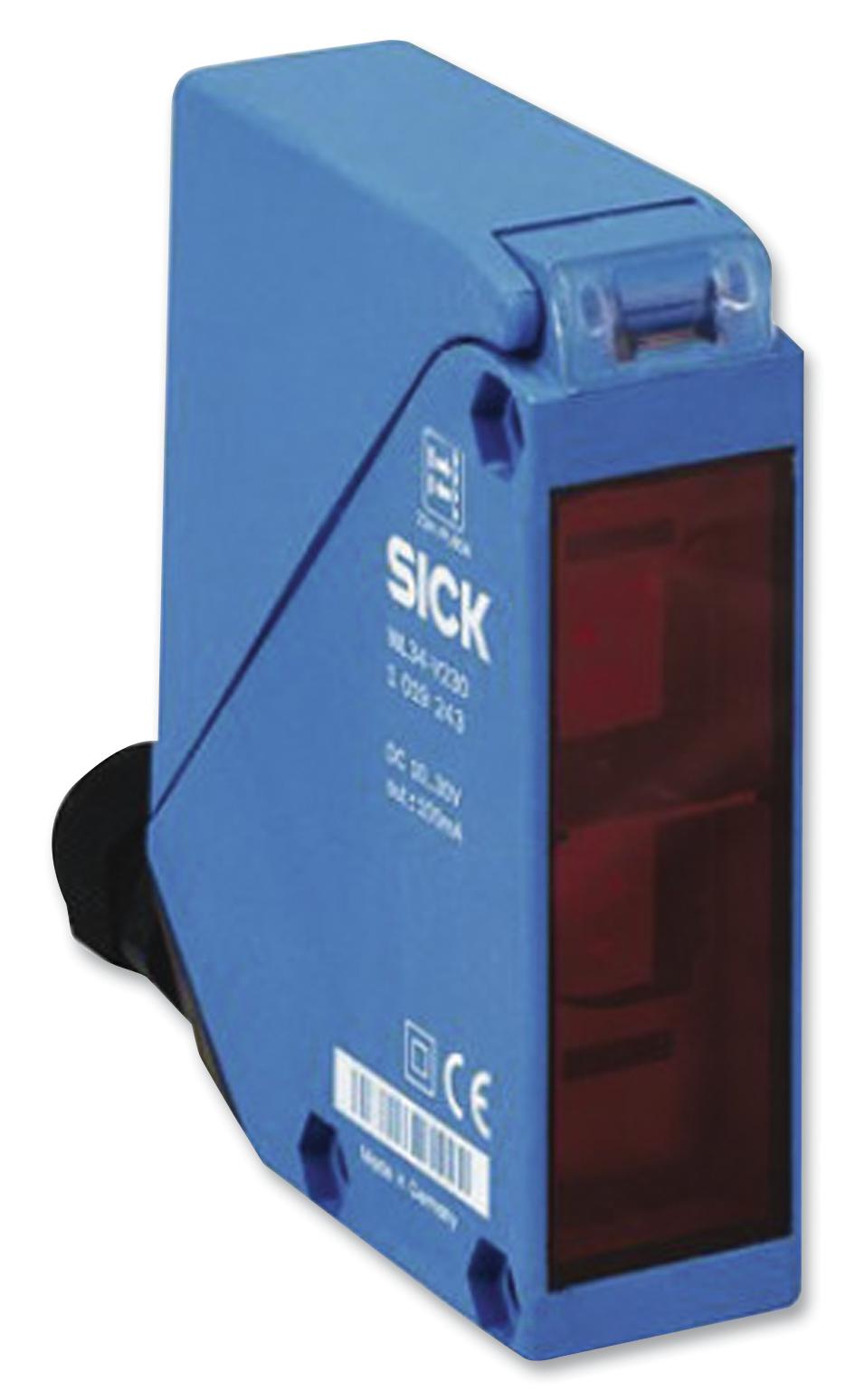

SICK WL34R240 Photoelectric sensor
The WL34-R240 is a versatile photoelectric retro-reflective sensor with standard optics designed for accurate detection over ranges from 0.03 meters to 22 meters. Equipped with high operating reserve, switch selectable PNP or NPN output, and light/dark switching, it offers flexible installation options. Its robust housing with IP67 rating, adjustable delay times, alarm output, and test input make it suitable for industrial settings. The sensor features visible red LED light emission, with dimensions of 27 mm x 92 mm x 70 mm, and is powered by 12 VDC to 240 VAC/DC.
SICK WL34R240 Photoelectric sensor Specifications:
- Dimensions: 27 mm x 92 mm x 70 mm
- Housing Material: ABS, Plastic
- Enclosure Rating: IP67
- Detection Range: 0.03 m to 22 m
- Light Source: LED, Visible red light (660 nm)
- Power Supply: 12 VDC to 240 VDC, 24 V to 240 VAC
- Output Type: Relay, electrically isolated, Change-over contacts
- Load Current: 4A at 24 V DC, 250 V AC
- Response Time: <10 ms
- Switching Frequency: 10 Hz
- Protection Class: IP67
- Temperature Range: -40°C to +60°C (operating), -40°C to +75°C (storage)
- Connection: M16 terminal gland, rotatable by 90°
- Housing: ABS, Polycarbonate
- Additional features: Light/dark switching, Adjustable delay (0.5-10s), Test input, Alarm output
Buy the SICK WL34-R240 – Reliable Photoelectric Sensor for Industrial Applications
Order the SICK WL34-R240 photoelectric sensor online today and enhance your automation system with its reliable detection capabilities, adjustable delay, and IP67-rated housing. Perfect for industrial environments requiring precise object detection over long ranges, this sensor offers switchable PNP or NPN outputs, a robust design, and easy installation. Its versatile features like alarm output, test input, and variable delay times provide maximum flexibility. Purchase now to ensure seamless integration and consistent performance across your manufacturing or safety applications.
Buy SICK WL34-R240 now and experience unmatched reliability and performance in industrial detection tasks.
Frequently Asked Questions
Where can I buy SICK WL34R240?
You can click on the BUY or RFQ button to purchase WL34R240 from an authorized SICK distributor.
How do I troubleshoot issues or seek technical support for part WL34R240?
You can download the WL34R240 datasheet or visit the SICK website for support.
Who is the manufacturer of WL34R240?
SICK
