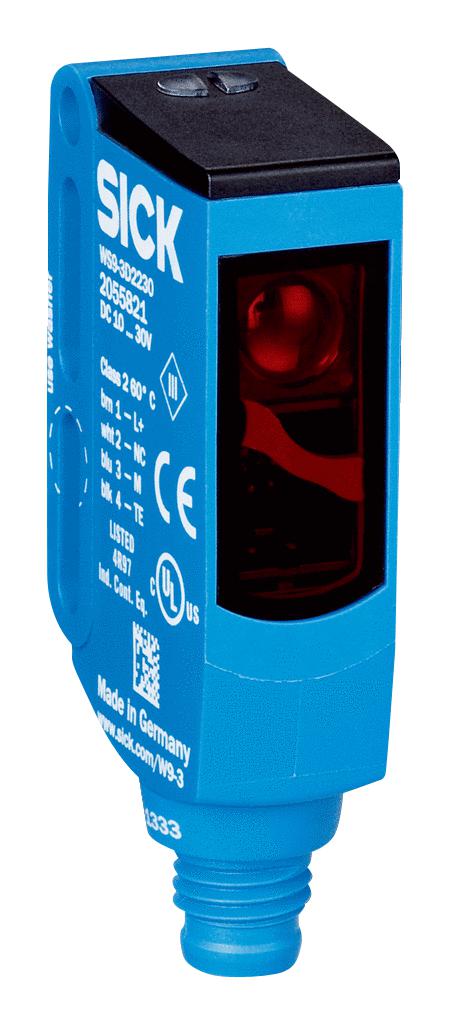

SICK WSE93P2230 Photoelectric Sensor
The sensor is a through-beam photoelectric device with a compact rectangular housing measuring 12.2 mm by 49.8 mm by 23.6 mm. It utilizes visible red light with a wavelength of 650 nm and offers a sensing range from 0.2 meters to 40 meters. Designed for industrial automation, it features a high service life of 100,000 hours at +25 °C, IP66/67/69K enclosure ratings, and a M3 mounting hole. Suitable for applications requiring accurate object detection over long distances with reliable operation.
SICK WSE93P2230 Photoelectric Sensor Specifications:
- Dimensions: 12.2 mm x 49.8 mm x 23.6 mm
- Housing Material: Plastic, VISTAL®, PMMA
- Light Source: PinPoint LED with wavelength 650nm
- Light Spot Size: 0.25 mm at 1m
- Sensing Range: Max 40 m, Typical 7 m
- Supply Voltage: 40VDC...30V
- Response Time: < 5 ms
- Output Type: PNP, Light/dark switching
- Output Current: Max 100 mA
- Protection Class: IP66, IP67, IP69K
- Operating Temperature: -40°C to +60°C
- Housing Material: Plastic, VISTAL®
- Connection: M8, 4-pin connector
- Mounting Hole: M3
- Certifications: CE, UL
Buy the SICK Series W9-3 Photoelectric Sensors: WSE9-3P2230
Purchase the SICK WSE9-3P2230 photoelectric sensor online today and experience reliable object detection over distances up to 40 meters. Designed with proven durability, this sensor features a compact rectangular housing, visible red light at 650 nm, and a response time of less than 5 milliseconds. Its IP66/67/69K enclosure ratings provide rugged protection for harsh industrial environments. With a service life of 100,000 hours at +25°C, easy mounting with M3 hole, and flexible connection options, it delivers consistent performance for automation and safety systems.
Get SICK WSE9-3P2230 today—built for long-distance detection and industrial reliability.
