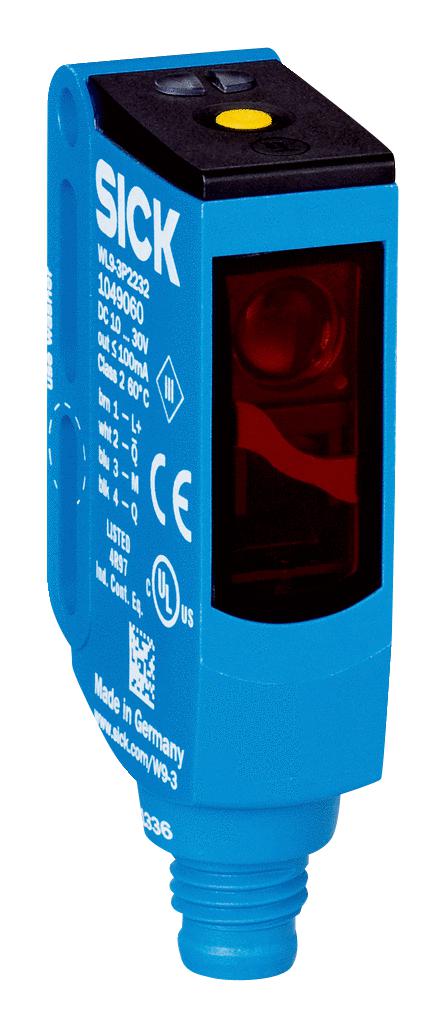

SICK WL93P2232 Photoelectric Sensor
The photoelectric sensor is a compact, rectangular, red light sensor with a detection range of up to 5 meters. It features a PinPoint LED light source, M3 mounting hole, and housing rated IP66 for demanding industrial environments. The device has simple single teach-in adjustment via button, with LED indicators for status and power. Operating on 40VDC to 30VDC, it provides PNP output with a maximum switching frequency of 4,000 Hz. Ideal for precise object detection in automation and manufacturing processes, ensuring reliable performance with a service life of 100,000 hours at 25°C.
SICK WL93P2232 Photoelectric Sensor Specifications:
- Dimensions: 12.2 mm x 49.8 mm x 23.6 mm
- Housing material: Plastic, VISTAL, PMMA
- IP66 enclosure rating
- Sensing range: max 5m, standard 3m
- Light source: Visible red LED, 650 nm
- Operating voltage: 40VDC to 30VDC
- Ripple: <5Vp
- Power consumption: <30mA
- Output type: PNP, complementary
- Maximum output current: <100mA
- Response time: <0.5 ms
- Switching frequency: 4,000 Hz
- Connection: M8, 4-pin connector
- Ambient temperature: -40°C to +60°C
- Protection class: IP66
- Weight: 13 g
Buy the Buy SICK Photoelectric Sensor Part Number WL93P2232 Online
Purchase the SICK photoelectric sensor WL93P2232 online and enhance your automation setup. This compact, durable device offers a detection range up to 5 meters, IP66 protection, and fast response times, making it ideal for reliable object detection in manufacturing and industrial applications. With easy teach-in adjustments, high service life of 100,000 hours, and a robust housing, this sensor guarantees long-term performance and operational efficiency. Buy now to improve your process control and automation accuracy through a trusted supplier.
Get SICK WL93P2232 today—designed for high-precision object detection in industrial environments, ensuring reliable, long-lasting performance.
Frequently Asked Questions
Where can I buy SICK WL93P2232?
You can click on the BUY or RFQ button to purchase WL93P2232 from an authorized SICK distributor.
How do I troubleshoot issues or seek technical support for part WL93P2232?
You can download the WL93P2232 datasheet or visit the SICK website for support.
Who is the manufacturer of WL93P2232?
SICK
