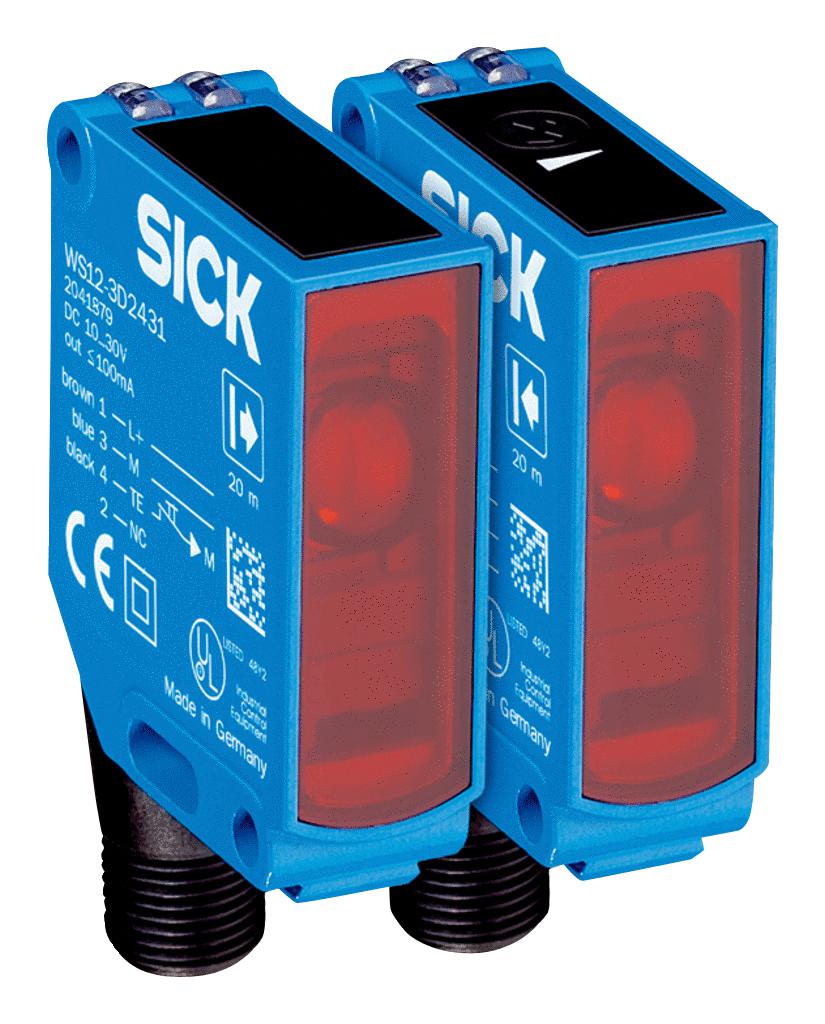

SICK WSE123P2431 Photoelectric Sensor
The photoelectric sensor W12-3 is a compact, rectangular device designed for industrial automation, featuring through-beam detection with a 640 nm visible red LED light source. It offers a sensing range from a few centimeters up to 20 meters, adjustable via a potentiometer. Crafted with a robust metal housing and rated IP66/IP67/IP69K, it withstands harsh environments. Powered by 40-30 VDC, it delivers high-speed switching at 1,500 Hz, with PNP output mode, and has status indicators for operational readiness. Suitable for precise object detection in manufacturing processes.
SICK WSE123P2431 Photoelectric Sensor Specifications:
- Detection principle: Through-beam photoelectric
- Dimensions: 15.6 mm x 48.5 mm x 42 mm
- Housing material: Metal
- Enclosure rating: IP66, IP67, IP69K
- Light source: LED, 640 nm visible red
- Sensing range: Up to 20 meters (variable with model)
- Response time: < 330 μs
- Switching frequency: 1,500 Hz
- Supply voltage: 40VDC to 30VDC
- Output type: PNP, HIGH/LOW
- Output current: Max. 400 mA
- Ambient temperature: -40°C to +60°C
- Recognition adjustments: Potentiometer, 5 turns
- Indicators: Yellow: Light received, Green: Supply active
Buy the Buy SICK Photoelectric Sensor Part Number WSE12-3 Online
Enhance your automation setup with the SICK photoelectric sensor WSE12-3, offering precise object detection up to 20 meters. Its compact rectangular metal housing ensures durability with IP66/IP67/IP69K ratings, making it suitable for harsh environments. Adjustable sensing distance via potentiometer allows tailored detection. With rapid response time of less than 330 microseconds and high switching frequency of 1,500 Hz, it supports demanding industrial applications. Easy to install with multiple accessories available. Secure your automation process today by purchasing this reliable, high-performance sensor online.
Get SICK WSE12-3 photoelectric sensor today—robust, high-speed detection perfect for industrial automation and process control.
Frequently Asked Questions
Where can I buy SICK WSE123P2431?
You can click on the BUY or RFQ button to purchase WSE123P2431 from an authorized SICK distributor.
How do I troubleshoot issues or seek technical support for part WSE123P2431?
You can download the WSE123P2431 datasheet or visit the SICK website for support.
Who is the manufacturer of WSE123P2431?
SICK
