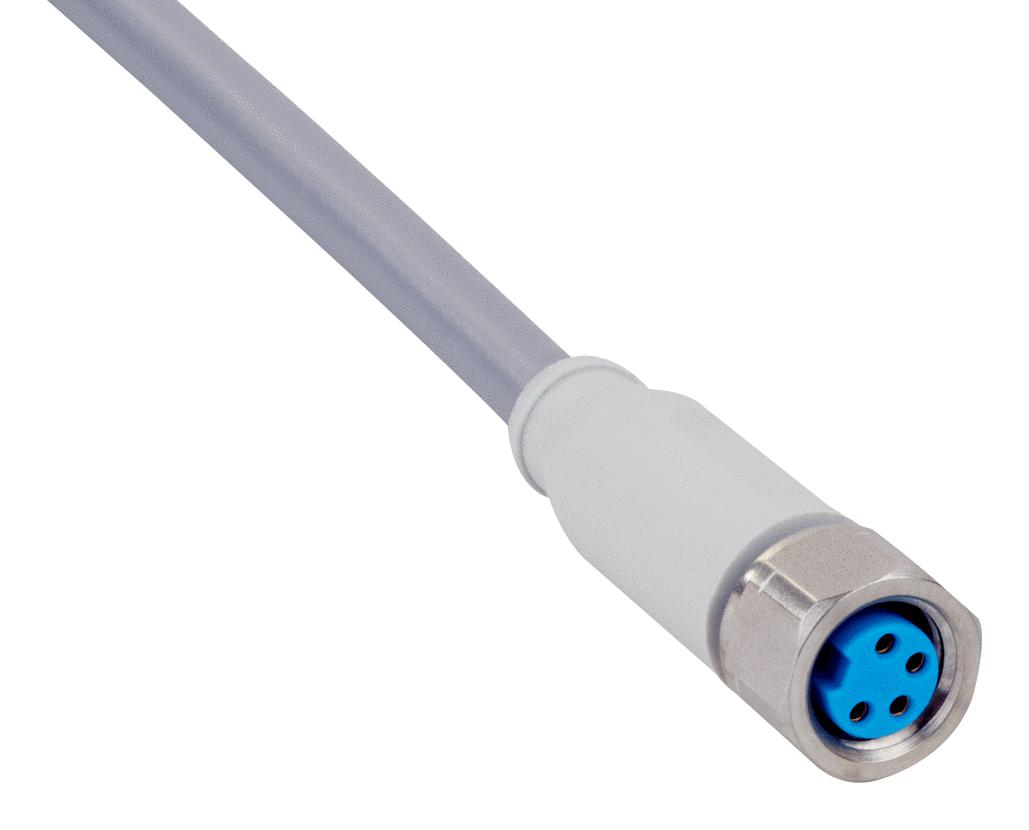

SICK DOL0804G05MNI Industrial sensor connector
The DOL-0804-GO5MNI is a high-quality female connector cable designed for industrial automation. It features a 4-pin straight M8 connection with a 5-meter unshielded PVC jacket cable, suitable for hygienic systems and industrial environments. Made with stainless steel, the connector offers resistance to chemicals and mechanical stress. It supports up to 4A current, a rated impulse voltage of 8kV, and operates within a temperature range of -25°C to +85°C. Ideal for sensor connections in various demanding industrial applications.
SICK DOL0804G05MNI Industrial sensor connector Specifications:
- Connection type: head A female connector, M8, 4-pin, straight
- Cable length: 5 meters, unshielded PVC
- Jacket material: PVC
- Connector material: stainless steel (V4A/1.4404)
- Connector color: gray
- Cable diameter: 48 mm
- Conductor cross-section: 0.25 mm²
- Shielding: unshielded
- Bending radius: > 5 x cable diameter (stationary), > 10 x cable diameter (flexible)
- Tightening torque: 0.4 Nm
- Reference voltage: <30V
- Rated impulse voltage: 8 kV
- Current loading: 4A
- Ambient operating temperature: -25°C to +85°C (female connector), +80°C (stationary), -5°C to +80°C (flexible)
- Enclosure rating: IP 67
- Application: Hygienic systems, industrial sensor connections
Buy the SICK Series Industrial Sensor Connectors: DOL-0804-GO5MNI
Enhance your industrial automation setup with the SICK DOL-0804-GO5MNI connector. Featuring a durable 4-pin M8 female connector and 5-meter PVC cable, it ensures reliable sensor connections in harsh environments. Made from stainless steel with IP 67 enclosure rating, it withstands chemicals, mechanical stress, and extreme temperatures from -25°C to +85°C. Ideal for hygienic systems and industrial applications, this connector guarantees consistent, safe performance—order online now and boost your system's efficiency and safety.
Buy SICK DOL-0804-GO5MNI now and experience unmatched reliability and performance in industrial sensor connections.
Frequently Asked Questions
Where can I buy SICK DOL0804G05MNI?
You can click on the BUY or RFQ button to purchase DOL0804G05MNI from an authorized SICK distributor.
How do I troubleshoot issues or seek technical support for part DOL0804G05MNI?
You can download the DOL0804G05MNI datasheet or visit the SICK website for support.
Who is the manufacturer of DOL0804G05MNI?
SICK
