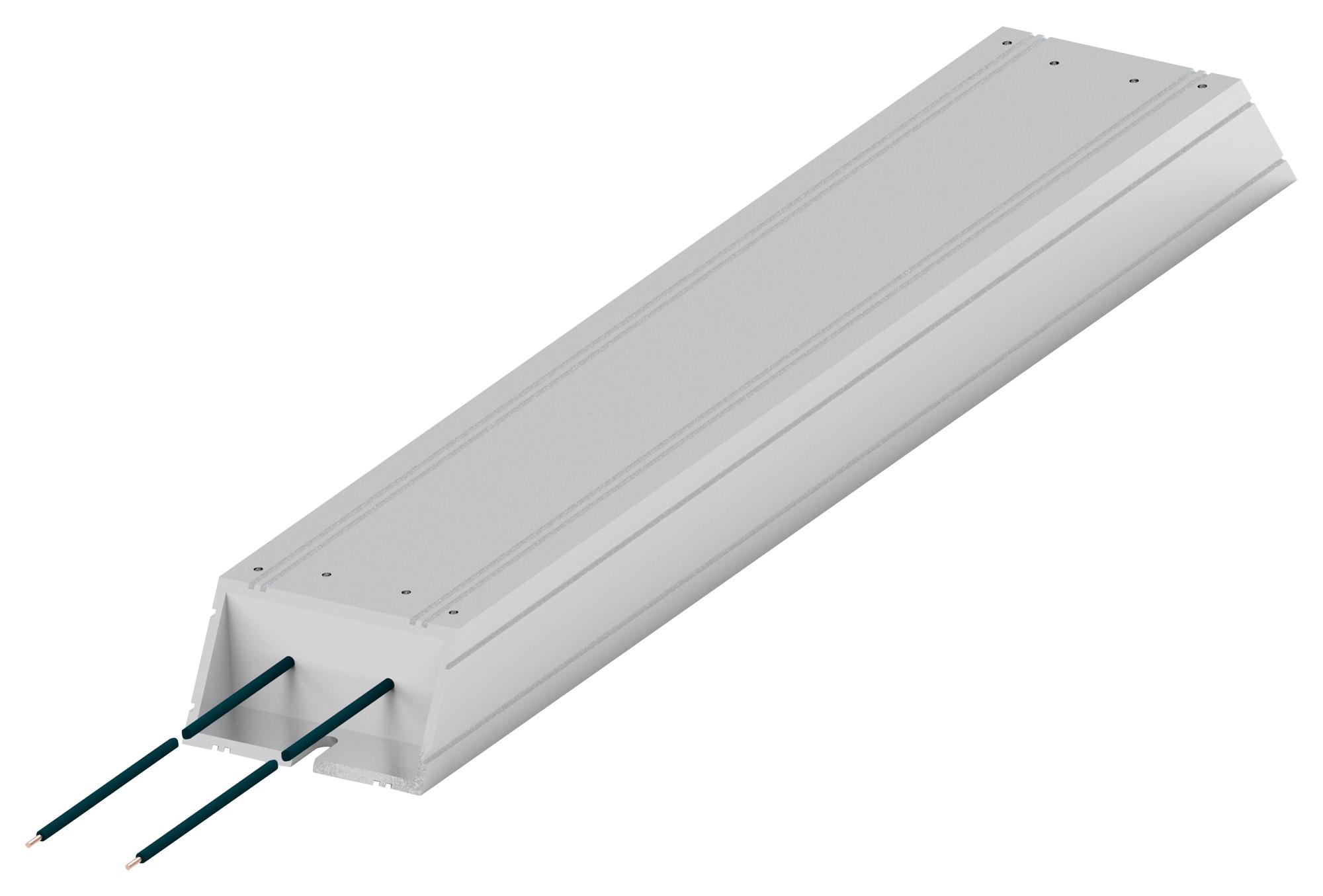

TE CONNECTIVITY HCH335J68RJ Aluminium Braking Resistor
The Aluminium Housed Braking Resistor in the HCH Series is a high-power wire wound resistor designed for braking applications. It features IP54 ingress protection, PTFE insulated flying leads, and an anodized extruded aluminium body. Rated for high overload capability, it offers power ratings from 200W to 500W at 40°C and maximum temperature ratings up to 375°C. Suitable for drive systems, it is tested for load life, damp heat, insulation resistance, and dielectric strength, ensuring durability in industrial environments.
TE CONNECTIVITY HCH335J68RJ Aluminium Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: up to 375°C
- Resistance Range: 680-2200Ω depending on model
- Maximum Working Voltage: 1100V
- Insulation Resistance: >100MΩ @ 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Ingress Protection: IP54
- Resistor Element: Wire wound
- Body Material: Anodized extruded aluminium
- Leads: PTFE insulated, 300mm flying leads
- Tolerance: +5%, +10%
- Rated Continuous Working Voltage: VP*R, not to exceed maximum voltage
- Dimensions (length varies by model): HCH165 - 165mm, HCH215 - 215mm, HCH265 - 265mm, HCH335 - 335mm
- Additional features: tested for load life, environmental durability, and overload conditions
Buy the TE Series Braking Resistor: HCH335J68RJ
Purchase the TE Series aluminium housed braking resistor online today for reliable performance in industrial applications. Engineered for high overload capability and durability, this resistor features IP54 protection and PTFE insulated leads for versatile connection options. Its high power rating up to 500W at 40°C and temperature rise capacity up to 375°C make it suitable for various drive systems requiring efficient braking solutions. Easy to install and tested for load life, moisture resistance, and dielectric strength, ensuring long-term operational stability in demanding environments.
Get TE Series HCH335J68RJ aluminium braking resistor today—designed for high power and long-lasting durability in industrial drive systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J68RJ?
You can click on the BUY or RFQ button to purchase HCH335J68RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J68RJ?
You can download the HCH335J68RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J68RJ?
TE CONNECTIVITY
